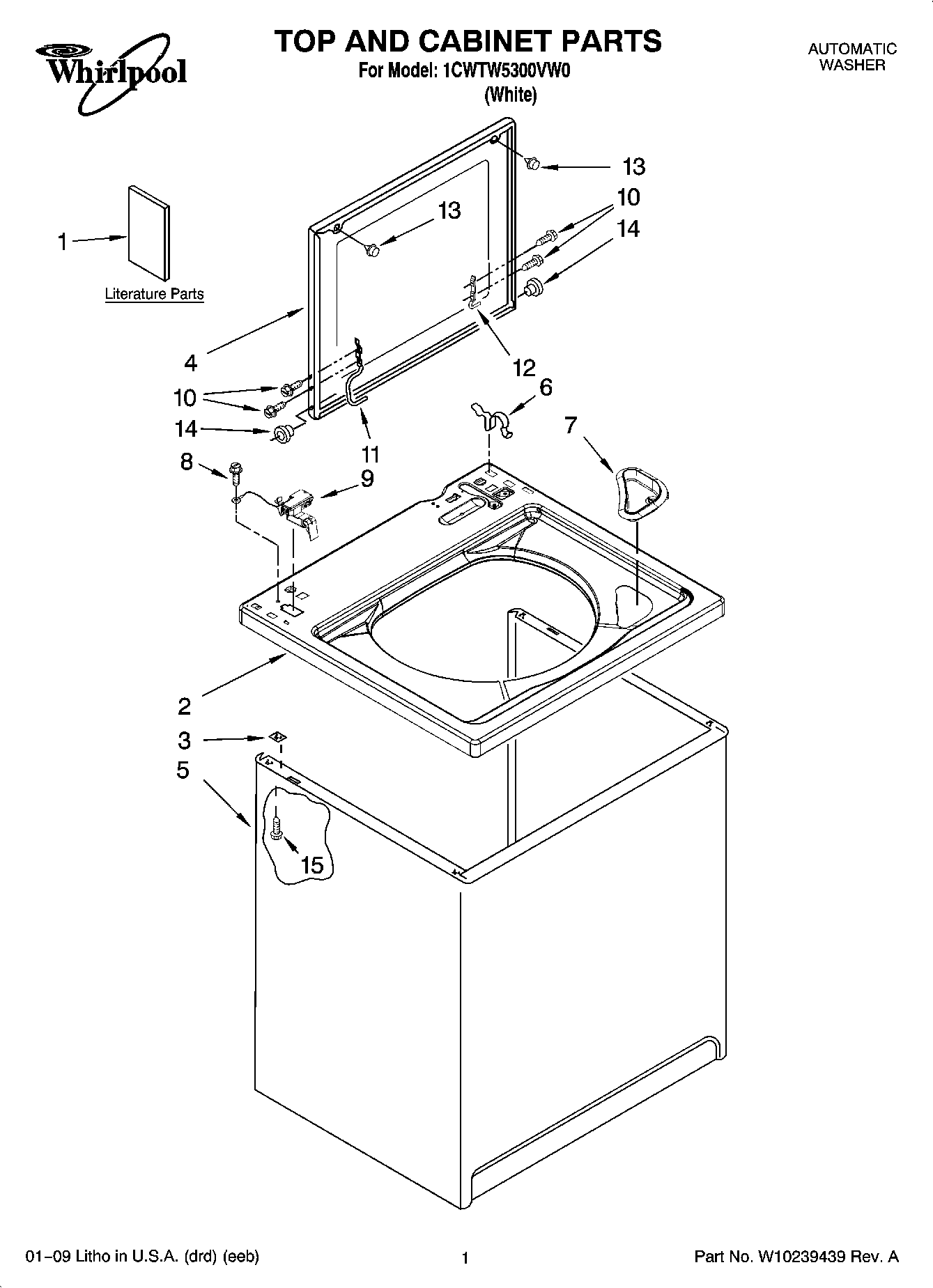

1CWTW5300VW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Feature Sheet
1	Use & Care Guide
1	Installation Instructions
2	Top
3	WP62750 Whirlpool Spacer
4	Lid
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WPW10192089 Whirlpool Washer Bleach Dispenser
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	SCREW
11	Hinge, Lid (L.H.)
12	WP91770 Whirlpool Hinge
13	WP9724509 Whirlpool Bumper
14	Bearing, Lid Hinge (2)
15	WP3390631 Whirlpool Screw
