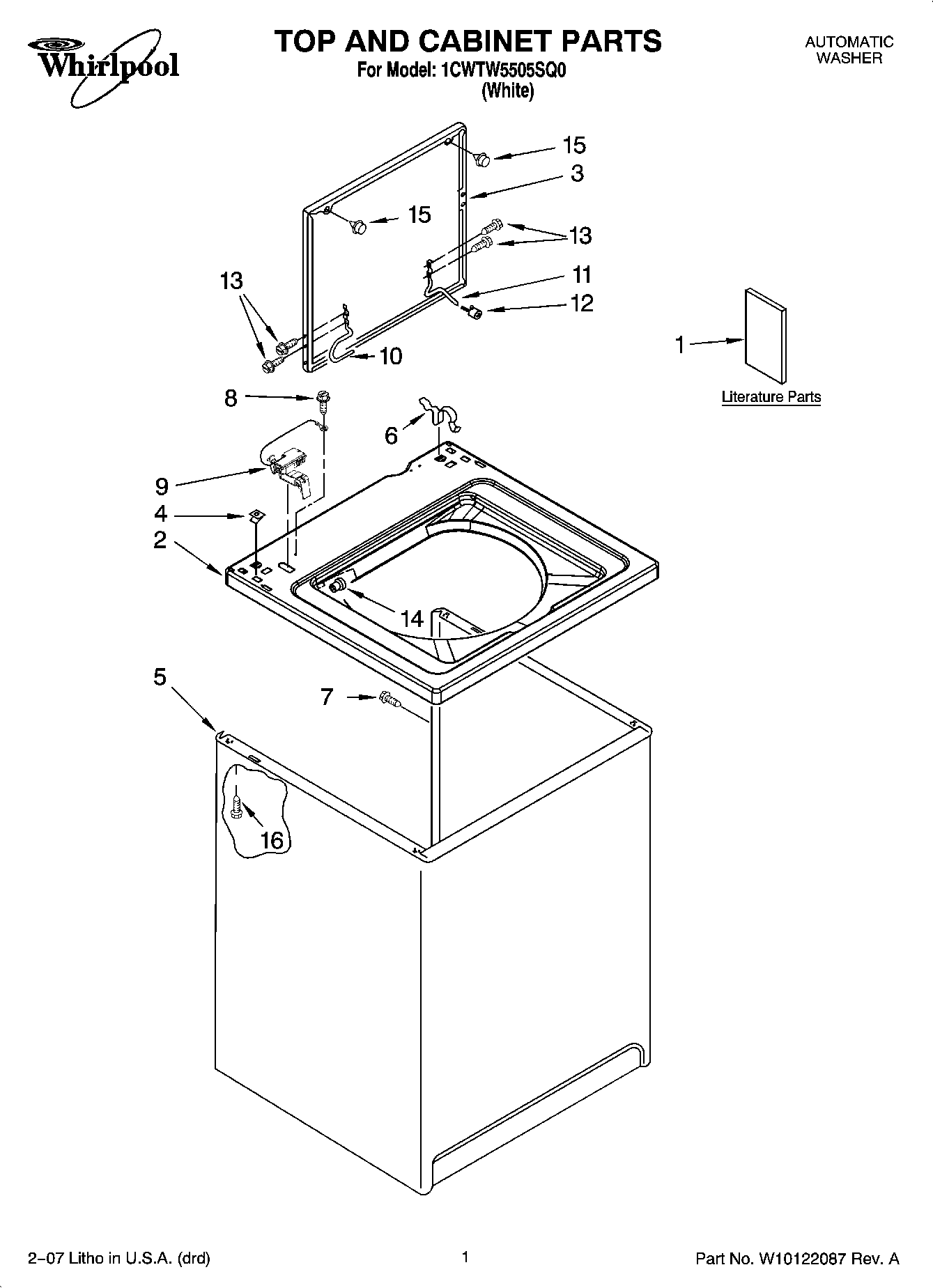

1CWTW5505SQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Installation Instructions
1	Use & Care Guide
1	Wiring Diagram
1	Energy Guide
1	Feature Sheet
2	Top
3	WPW10193857 Whirlpool Lid Assembly
4	WP357213 Whirlpool Hinge Stopper
5	Cabinet (White)
6	WP62780 Whirlpool Cabinet Clip
7	WP308685 Whirlpool Microwave Screw
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	8318088 Whirlpool Hinge Assembly
11	WP54583 Whirlpool Hinge
12	Bumper, Lid Hinge
13	SCREW
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	WP9724509 Whirlpool Bumper
16	WP3390631 Whirlpool Screw
