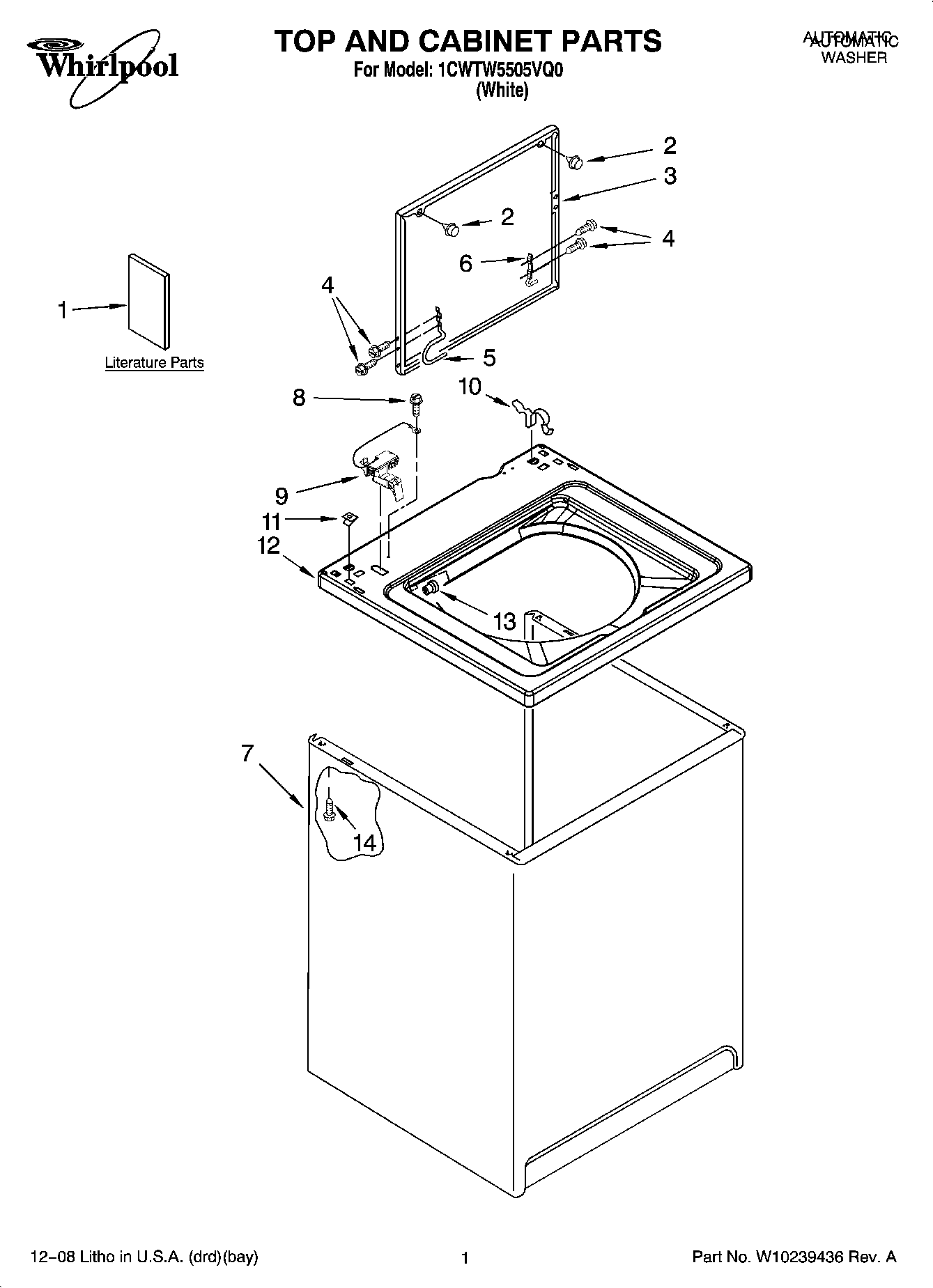

1CWTW5505VQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Feature Sheet
1	Use & Care Guide
1	Installation Instructions
1	Wiring Diagram
2	WP9724509 Whirlpool Bumper
3	WPW10193857 Whirlpool Lid Assembly
4	SCREW
5	Hinge, Lid (L.H.)
6	WP91770 Whirlpool Hinge
7	Cabinet (White)
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	WP62780 Whirlpool Cabinet Clip
11	WP357213 Whirlpool Hinge Stopper
12	Top
13	WP21258 Whirlpool Washer Lid Hinge Bearing
14	WP3390631 Whirlpool Screw
