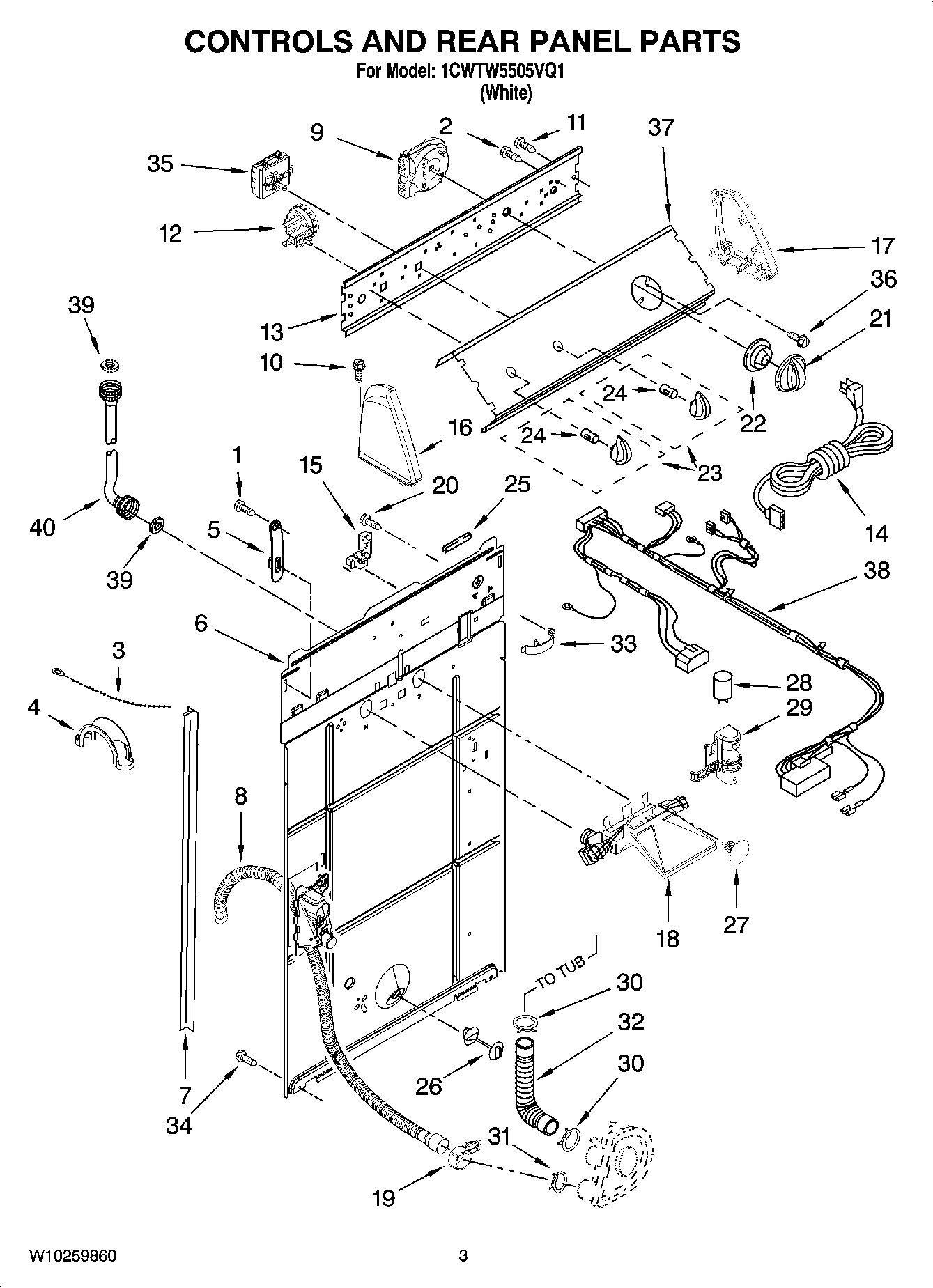

1CWTW5505VQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP9740848 Whirlpool Dishwasher Screw
2	3400073 Whirlpool Screw
3	WPW10339879 Whirlpool Wire Tie
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10199989 Whirlpool Timer
10	WP388326 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339333 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	W10820038 Whirlpool Endcap
18	WPW10144820 Whirlpool Washer Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	WP3351614 Whirlpool Screw
21	Knob, Timer
22	WP8566018 Whirlpool Dial Assembly
23	Knob, Control
24	WP8536939 Whirlpool Spring Clip
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clip, Push-In Retainer
28	CAPACITOR
29	Clip, Capacitor
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness
34	WP3390631 Whirlpool Screw
35	WPW10112532 Whirlpool Temperature Control Switch
36	WP3400818 Whirlpool Screw
37	Panel, Console
38	Harness, Wiring (For Detail See Page 9 & 10)
39	WP16123 Whirlpool Washer
40	FILL HOSE 5' W/WASHER
40	WP89503 Whirlpool Washer Fill Hose
