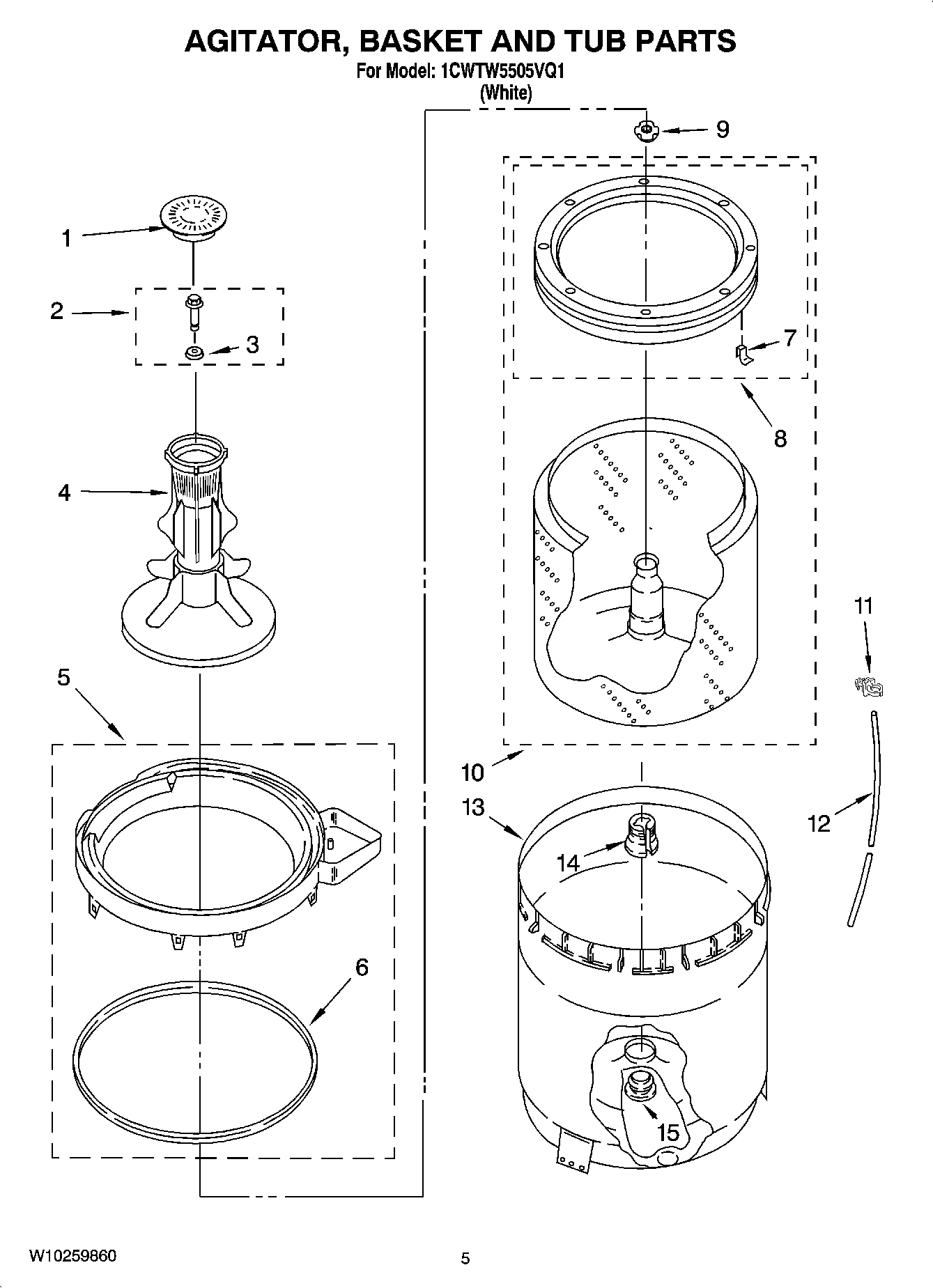

1CWTW5505VQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3352483 Whirlpool Cap
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4AGITATOR
5Tub Ring & Gasket Assembly
6WP3359586 Whirlpool Tub Seal
7WP8519815 Whirlpool Washer Balance Ring Clip
8WP3956205 Whirlpool Balance Ring
9WP21366 Whirlpool Spanner Nut
10Basket & Balance Ring
112219077 Whirlpool Refrigerator Clip
12WP353244 Whirlpool Hose
13Tub
14WP389140 Whirlpool Drive Block or Bell
15W10814296 Whirlpool Washer Center Post Seal Gasket
