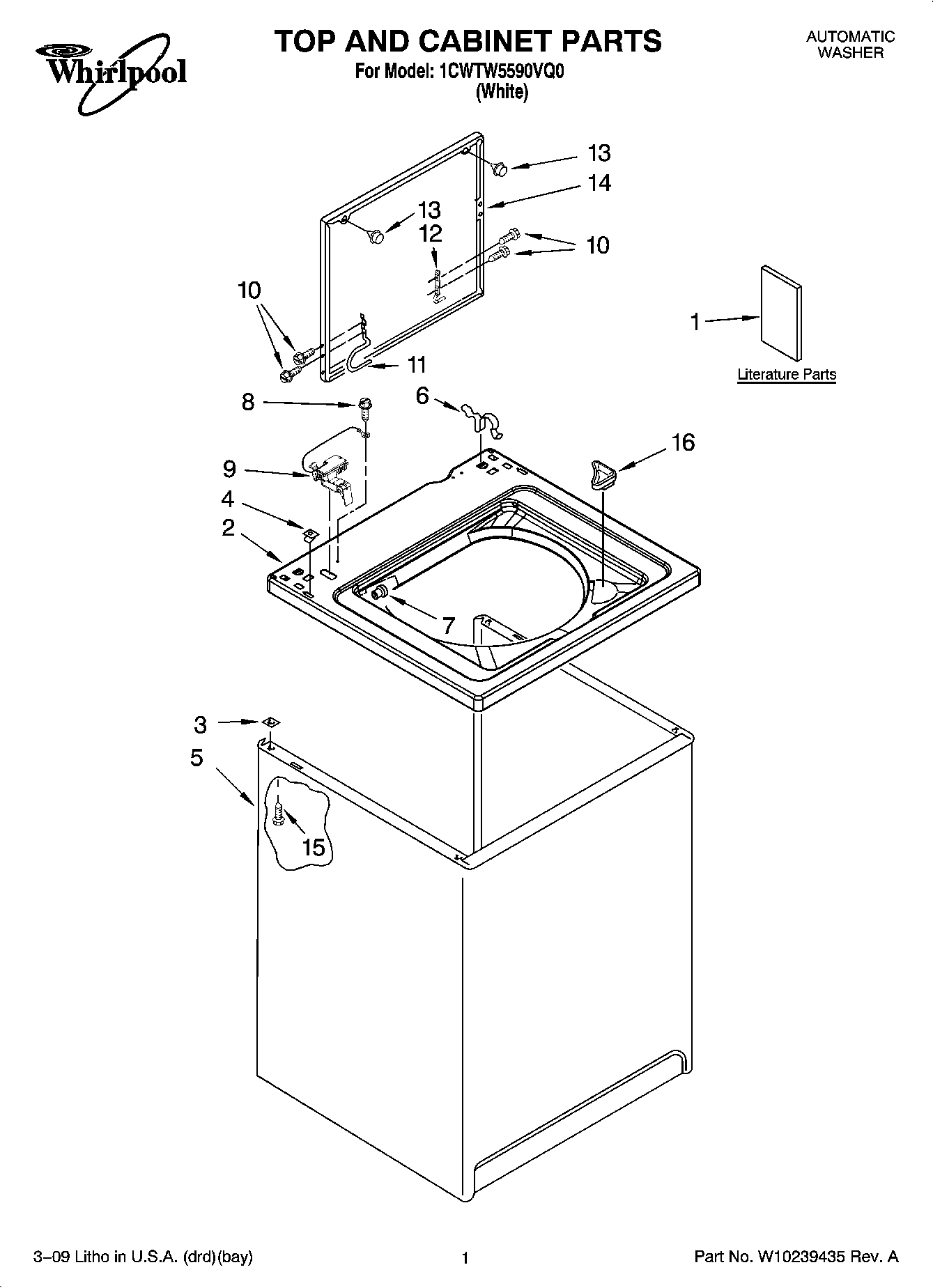

1CWTW5590VQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Feature Sheet
1	Use & Care Guide
1	Installation Instructions
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP21258 Whirlpool Washer Lid Hinge Bearing
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	SCREW
11	Hinge, Lid (L.H.)
12	WP91770 Whirlpool Hinge
13	WP9724509 Whirlpool Bumper
14	WPW10193857 Whirlpool Lid Assembly
15	W10165554 Whirlpool Screw
16	WP3362952 Whirlpool Bezel
