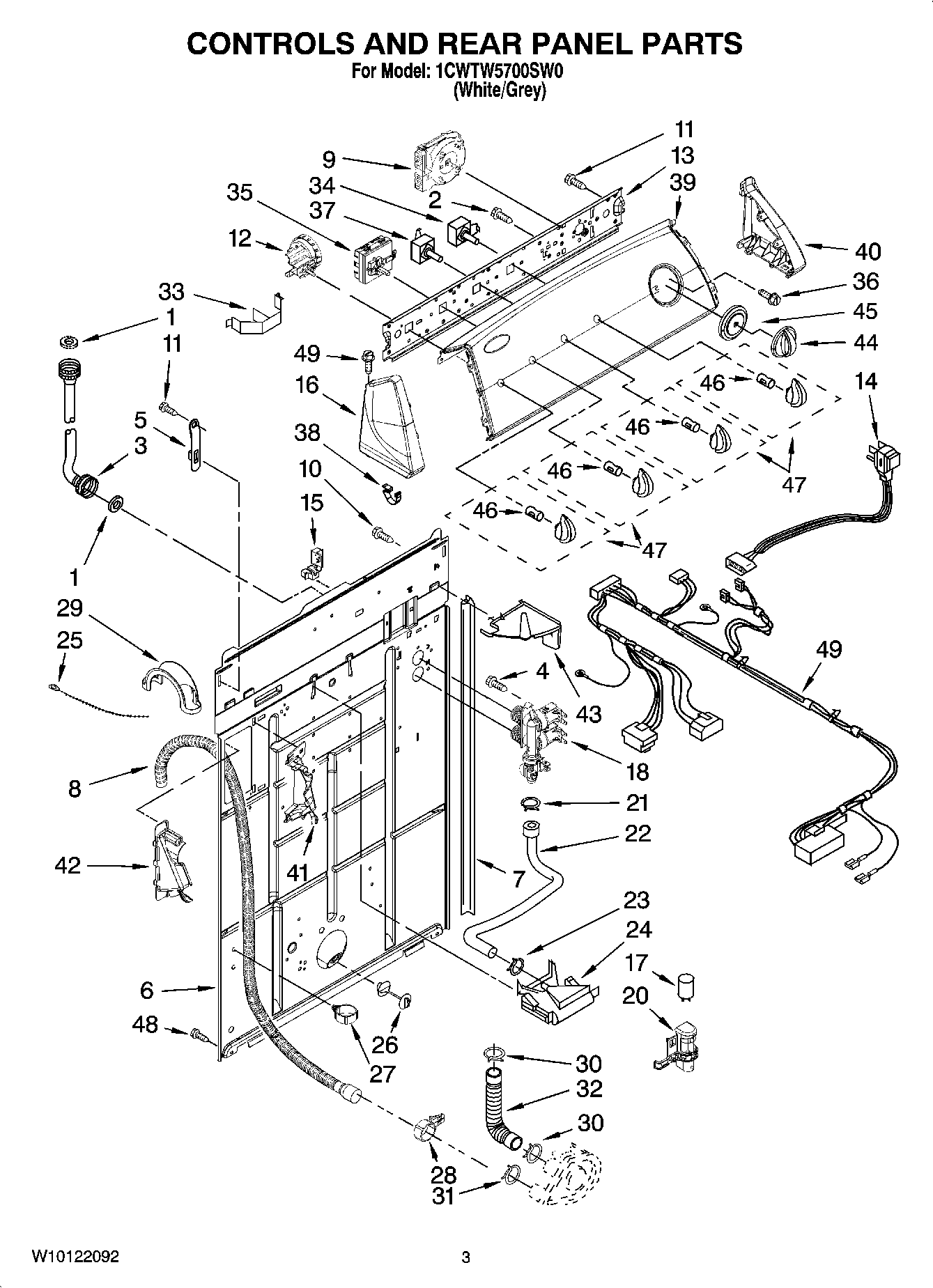

1CWTW5700SW0 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
1CWTW5700SW0 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP16123 Whirlpool Washer
2
3400073 Whirlpool Screw
3
WP89503 Whirlpool Washer Fill Hose
3
FILL HOSE 5' W/WASHER
4
WP9740848 Whirlpool Dishwasher Screw
5
WP8568314 Whirlpool Strap
6
Panel, Rear
7
WP62747 Whirlpool Pad
9
WP8578873 Whirlpool Timer
10
WP3351614 Whirlpool Screw
11
WP90767 Whirlpool Screw
12
W10337781 Whirlpool Washer Water Level Switch
13
Bracket, Control
14
W10820044 Whirlpool Power Cord
15
Strain Relief, Power Cord
16
WP8565957 Whirlpool Endcap Assembly
17
CAPACITOR
18
WP3979346 Whirlpool Water Inlet Valve
20
Clip, Capacitor
21
WP596669 Whirlpool Hose Clamp
22
HOSE
24
WP3360977 Whirlpool Washer Tub Fill Nozzle
25
WPW10339879 Whirlpool Wire Tie
26
WP8519200 Whirlpool Support Assembly
27
Clamp, Hose
28
8541668 Whirlpool Washer Clamp
29
WP8577378 Whirlpool Retainer
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
Clip, Harness & Pressure Hose
34
Switch, Rotary
35
Switch, Water Temperature (ATC)
36
WP3400818 Whirlpool Screw
37
W10851055 Whirlpool Cycle Switch
38
WP8312709 Whirlpool Endcap Clip
39
Panel, Console
40
WP8565954 Whirlpool Endcap
42
WPW10096921 Whirlpool Hose
43
WPL 8539874
44
Knob, Timer
45
WP8566018 Whirlpool Dial Assembly
46
WP8536939 Whirlpool Spring Clip
47
Knob, Control (3)
48
WP3390631 Whirlpool Screw
49
WPL 3958087
←
