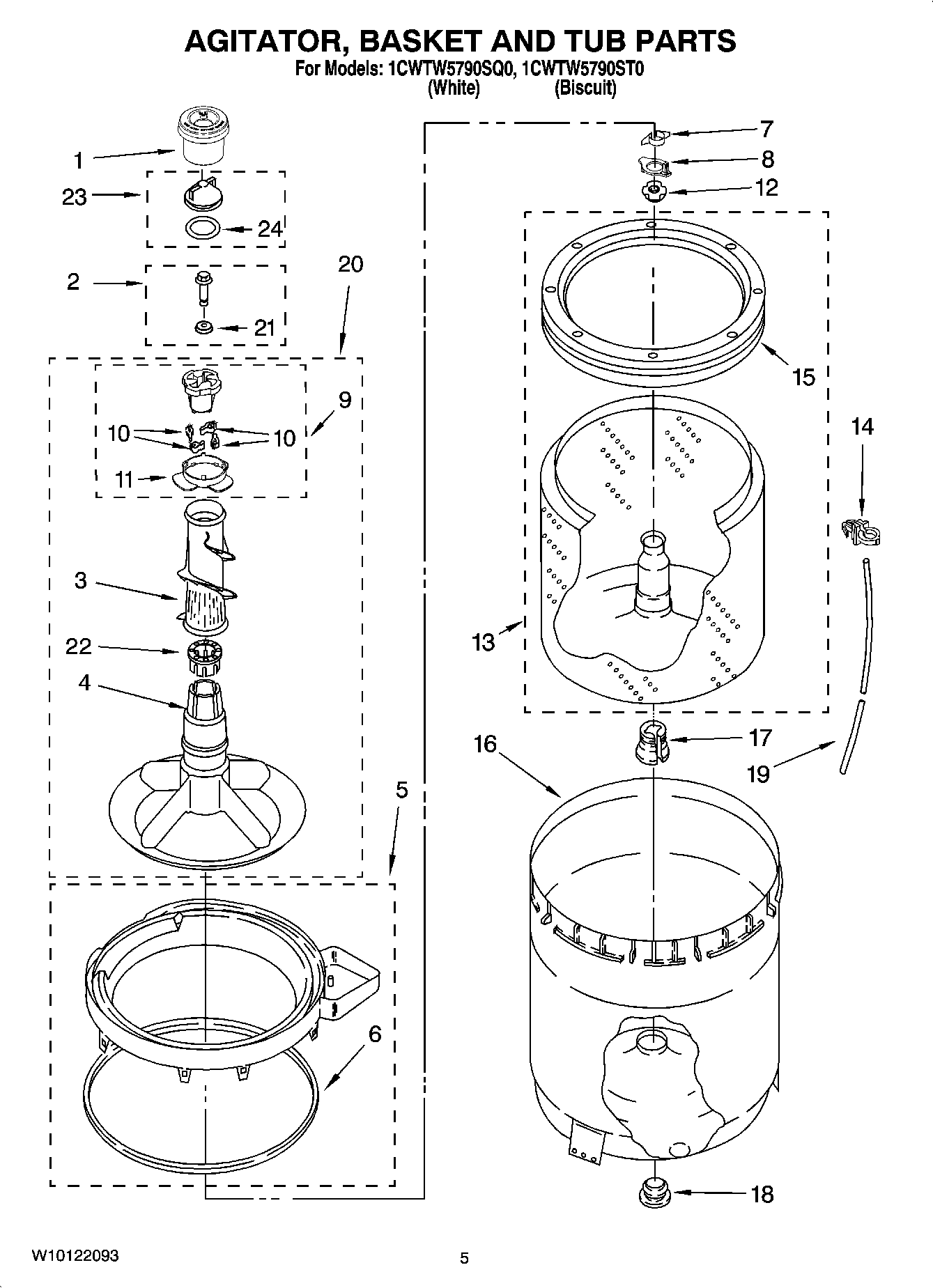

1CWTW5790ST0 03 – AGITATOR, BASKET AND TUB PARTS

1CWTW5790ST0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

1CWTW5790ST0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
18575076A Whirlpool Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3348752 Whirlpool Agitator Mover
4AGITATOR
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP3354845 Whirlpool Clip
8WP8543666 Whirlpool Washer
9285811 Whirlpool Washer Agitator Repair Kit
1080040 Whirlpool Washer Agitator Dog Kit
11WP3363661 Whirlpool Bearing Cam
12WP21366 Whirlpool Spanner Nut
13W10389328 Whirlpool Basket
142219077 Whirlpool Refrigerator Clip
15WP387240 Whirlpool Balance Ring
1663849 Whirlpool Outer Tub Primary Assembly
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20285565 Whirlpool Agitator Assembly
21WP3949550 Whirlpool Gasket Assembly
22285587 Whirlpool Thrust Washer
23WPW10074580 Whirlpool Agitator Inner Cap and Seal
24WPW10072840 Whirlpool Seal Assembly
