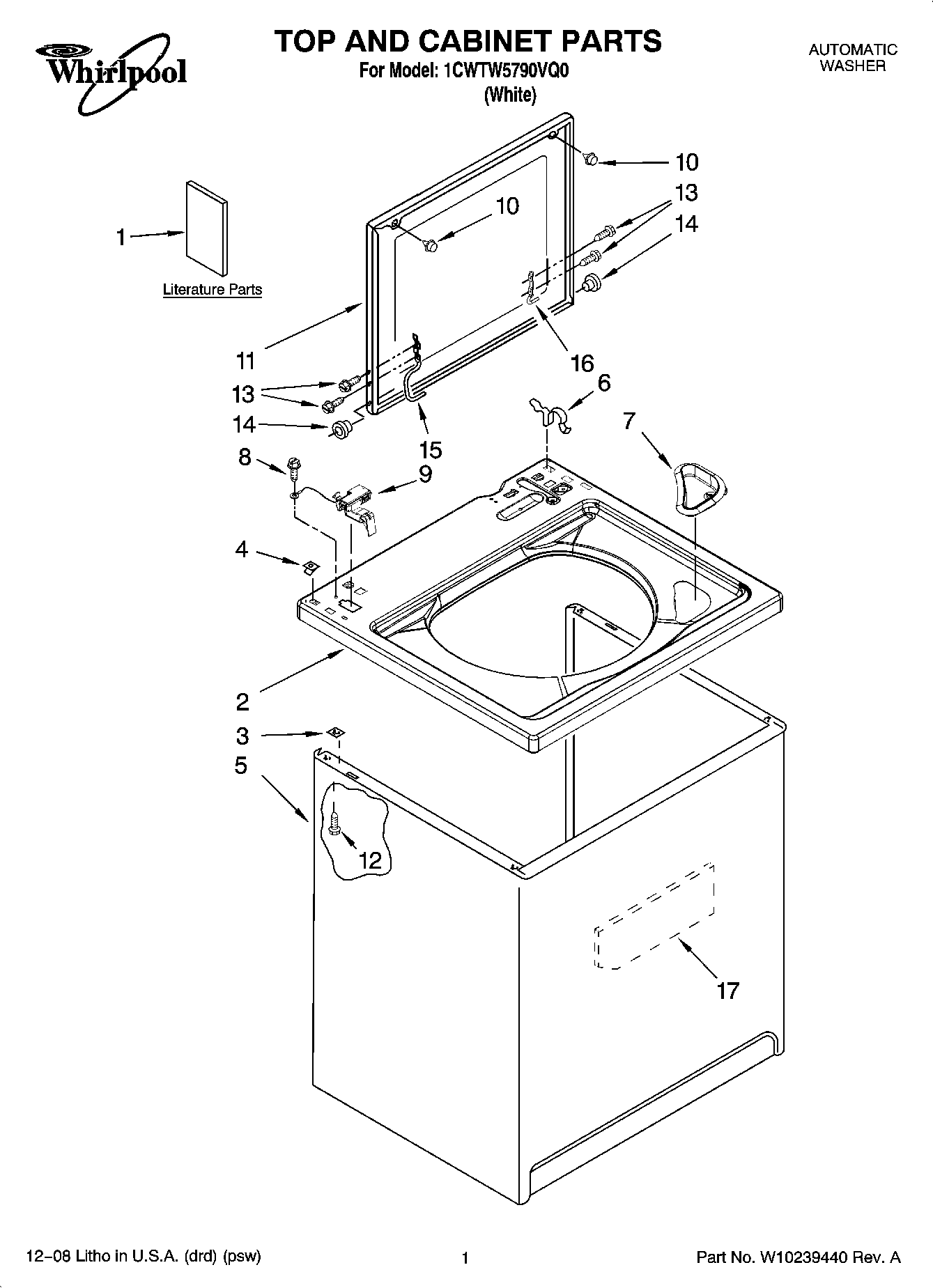

1CWTW5790VQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Feature Sheet
1	Use & Care Guide
1	Installation Instructions
1	Wiring Diagram
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WPW10192089 Whirlpool Washer Bleach Dispenser
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	WP9724509 Whirlpool Bumper
11	Lid
12	WP3390631 Whirlpool Screw
13	SCREW
14	Bearing, Lid Hinge (2)
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
17	W11096159 Whirlpool Sound ABS Assembly
