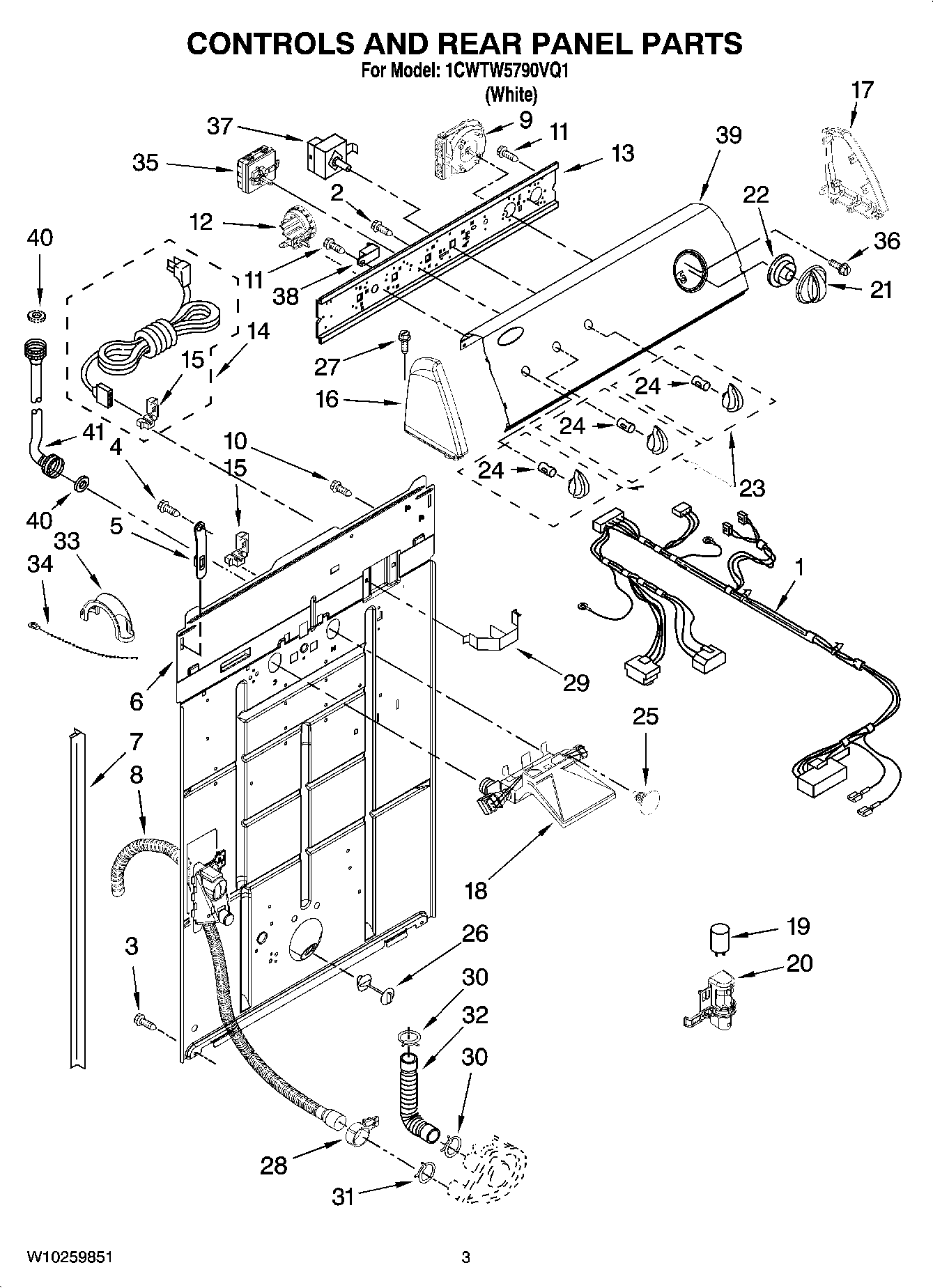

1CWTW5790VQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	W10219977 Whirlpool Wire Harness
2	3400073 Whirlpool Screw
3	WP3390631 Whirlpool Screw
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WP8577356 Whirlpool Washer Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	W10820038 Whirlpool Endcap
18	WPW10144820 Whirlpool Washer Water Inlet Valve
19	CAPACITOR
20	Clip, Capacitor
21	Knob, Timer
22	WP8566018 Whirlpool Dial Assembly
23	Knob, Control
24	WP8536939 Whirlpool Spring Clip
25	Clip, Push-In Retainer
26	WP8519200 Whirlpool Support Assembly
27	WP388326 Whirlpool Screw
28	8541668 Whirlpool Washer Clamp
29	Clip, Harness & Pressure Hose
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	WP8577378 Whirlpool Retainer
34	WPW10339879 Whirlpool Wire Tie
35	WPW10184148 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	W10168264 Whirlpool Cycle Switch
38	WP694419 Whirlpool Buzzer Adjuster
39	Panel, Console
40	WP16123 Whirlpool Washer
41	FILL HOSE 5' W/WASHER
41	WP89503 Whirlpool Washer Fill Hose
