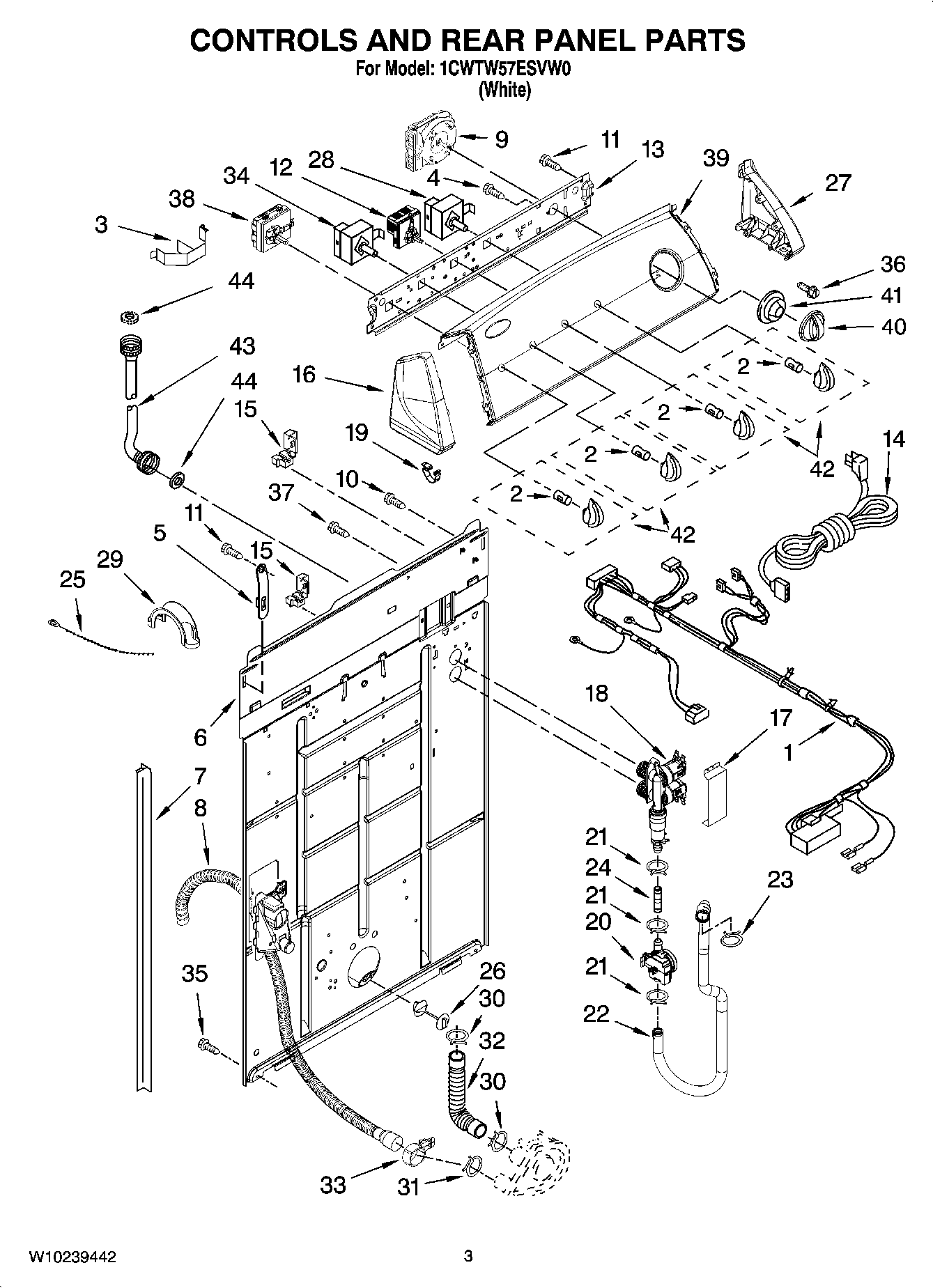

1CWTW57ESVW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Harness, Wiring (For Detail See Pages 9 & 10)
2	WP8536939 Whirlpool Spring Clip
3	Clip, Harness & Pressure Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10177827 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	Switch, Auto Load Sensing
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	Shield, Suds
18	WPW10175893 Whirlpool Valve
19	WP8312709 Whirlpool Endcap Clip
20	Flowmeter
21	Clamp, Hose
22	W11087528 Whirlpool Hose
23	WP596669 Whirlpool Hose Clamp
24	W10166731 Whirlpool Hose
25	WPW10339879 Whirlpool Wire Tie
26	WP8519200 Whirlpool Support Assembly
27	WP8565954 Whirlpool Endcap
28	W10180780 Whirlpool Cycle Switch
29	WP8577378 Whirlpool Retainer
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	W10851055 Whirlpool Cycle Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
37	WP9740848 Whirlpool Dishwasher Screw
38	WPW10179666 Whirlpool Temperature Switch
39	Panel, Console
40	Knob, Timer
41	WP8566018 Whirlpool Dial Assembly
42	Knob, Control (3)
43	WP89503 Whirlpool Washer Fill Hose
43	FILL HOSE 5' W/WASHER
44	WP16123 Whirlpool Washer
