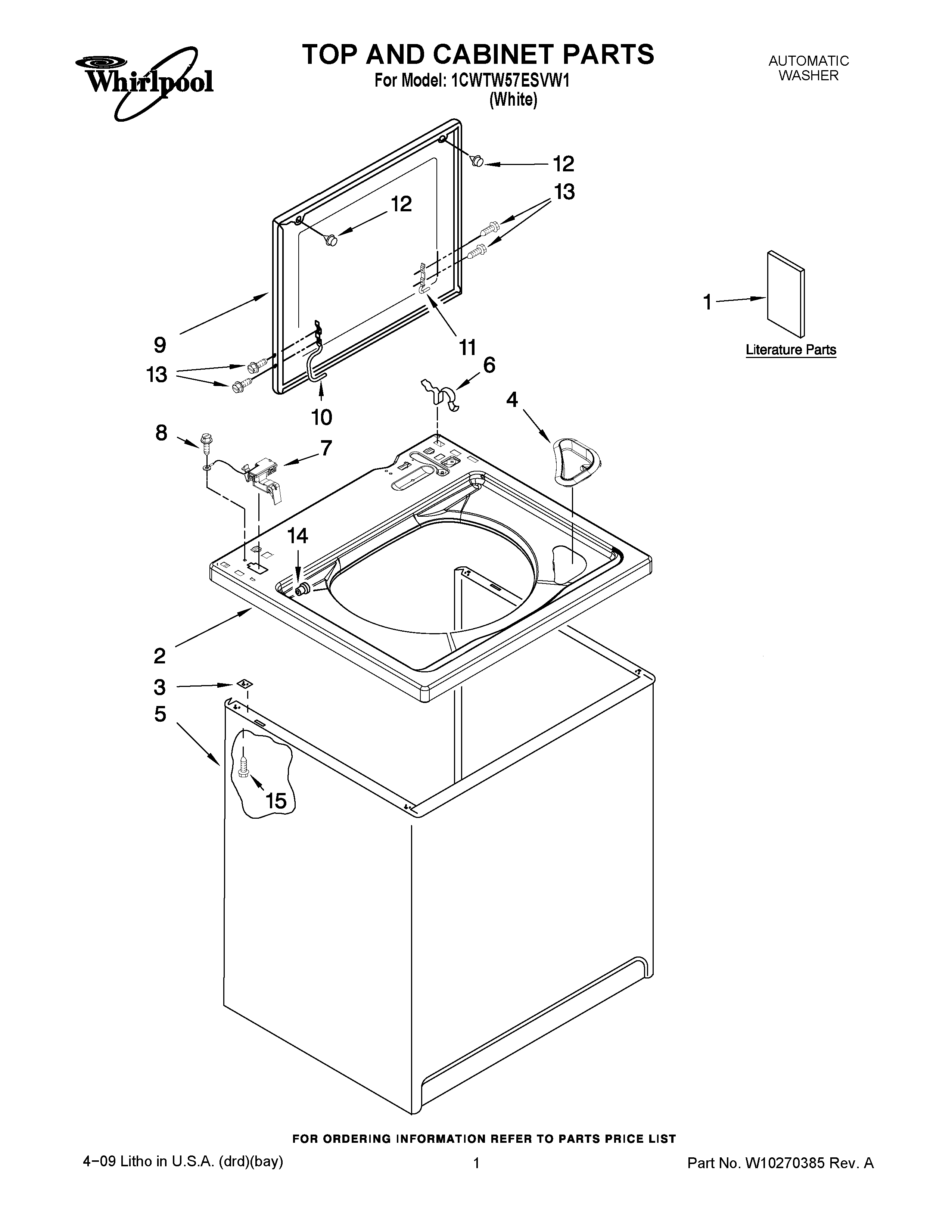

1CWTW57ESVW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	LOAD SENSE INFO SHEET
1	Feature Sheet
1	Use & Care Guide
1	Installation Instructions
2	Top
3	WP62750 Whirlpool Spacer
4	WPW10192089 Whirlpool Washer Bleach Dispenser
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP8318084 Whirlpool Washer Lid Switch Assembly
8	WP3351614 Whirlpool Screw
9	Lid
10	Hinge, Lid (L.H.)
11	WP91770 Whirlpool Hinge
12	WP9724509 Whirlpool Bumper
13	SCREW
14	Bearing, Lid Hinge (2)
15	W10165554 Whirlpool Screw
