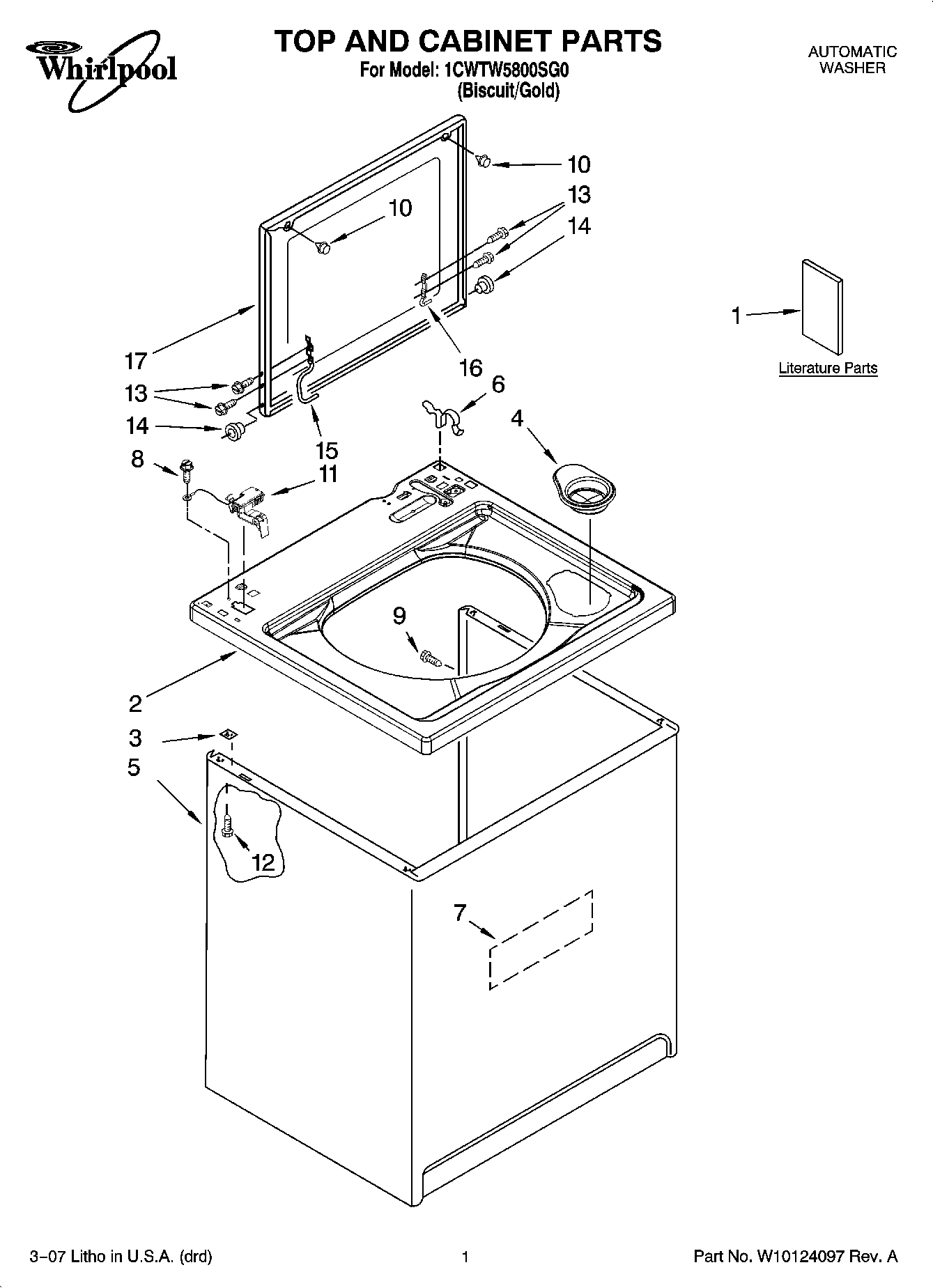

1CWTW5800SG0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Installation Instructions
1	Use & Care Guide
1	Feature Sheet
1	Wiring Diagram
1	Energy Guide
2	Top
3	WP62750 Whirlpool Spacer
4	Dispenser, Bleach
5	Cabinet (Biscuit)
6	WP62780 Whirlpool Cabinet Clip
7	Cabinet – Sound Damper
8	WP3351614 Whirlpool Screw
9	WP308685 Whirlpool Microwave Screw
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	WP3390631 Whirlpool Screw
13	SCREW
14	Bearing, Lid Hinge (2)
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
17	Lid
