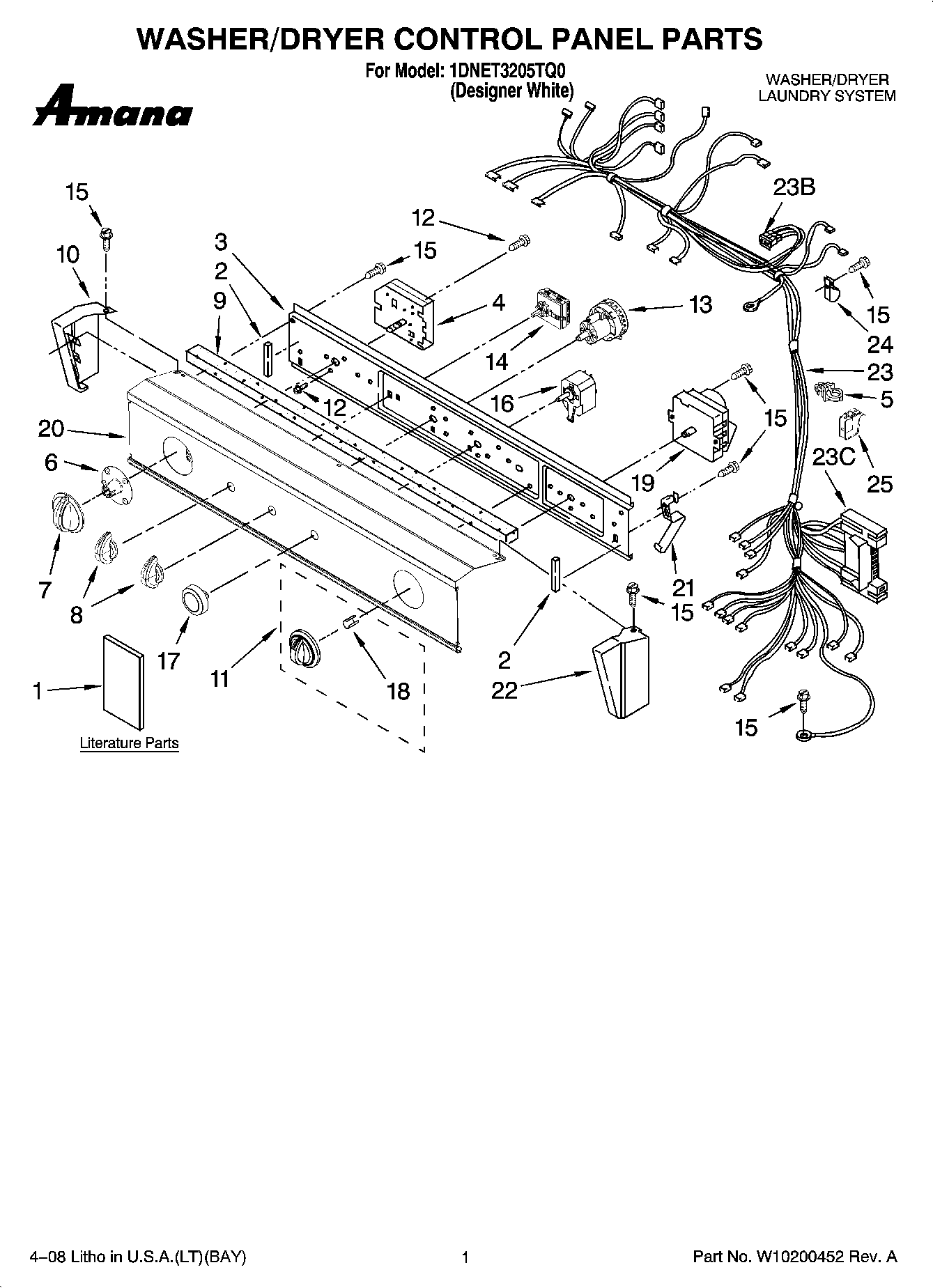

1DNET3205TQ0 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10131585
1MAY W10167624
1MAY W10131587
1MAY W10131586
2MAY 3390688
3MAY 8528583
4Timer, Washer
5Clip, Harness (1)
6Dial, (Washer)
7Knob, Timer (Washer)
8Knob, Control (2)
9MAY 8521965
10End Cap (LH)
11Knob, Timer (Dryer)
12Screw, 10-32 x 5/16
13MAY W10112533
14MAY W10177044
15SCREW,8-18 X 3/8
16MAY 3395382
17MAY 8566065
18CLIP, SPRING
19MAY W10113761
20MAY W10115443
21MAY 3389453
22End Cap (RH)
23BMAY 2154470
23CCONNECTOR (MOTOR)
23MAY W10167623
24MAY 3390604
25MAY W10134185
