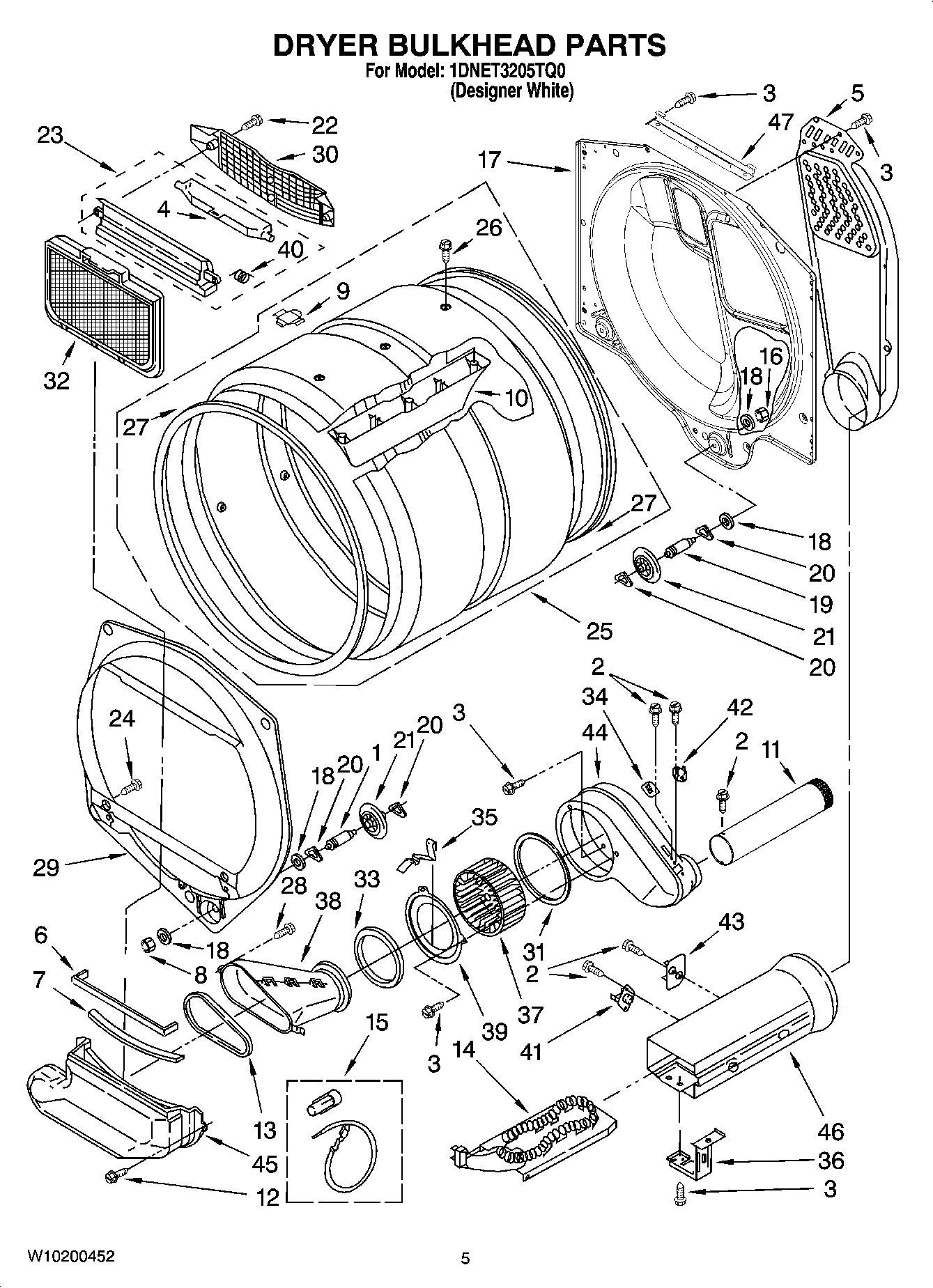

1DNET3205TQ0 04 – DRYER BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW,8-18 X 3/8
3	SCREW
4	MAY 3394984
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 3391906
8	NUT, HEX
9	Plug, Drum Hole
10	MAY 3389449
11	PIPE, EXHAUST
12	SCREW
13	MAY 3391685
14	Element, Heater
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	SCREW
23	MAY 3394985
24	Screw, 8-18 x 1/2
25	MAY 3389448
26	MAY W10109200
27	MAY W10166807
28	SCREW
29	BULKHEAD, FRONT
30	MAY 8299979
31	SEAL, PLATE COVER
32	MAY 3389644
33	MAY 8566209
34	Limiter, Thermal
35	MAY 3390935
36	Bracket, Heater Mounting
37	MAY 697772
38	Duct, Transition (Includes Illus. No.33)
39	Plate, Blower
40	Spring, Lint Screen Door
41	Thermostat 250 F (122 C)
42	MAY 3387134
43	Thermal Cutoff (Includes Illus. 48)
44	MAY 8544363
45	Lint Duct Assembly (Includes Illus. 7 & 13)
46	MAY 697715
47	MAY 8571651
