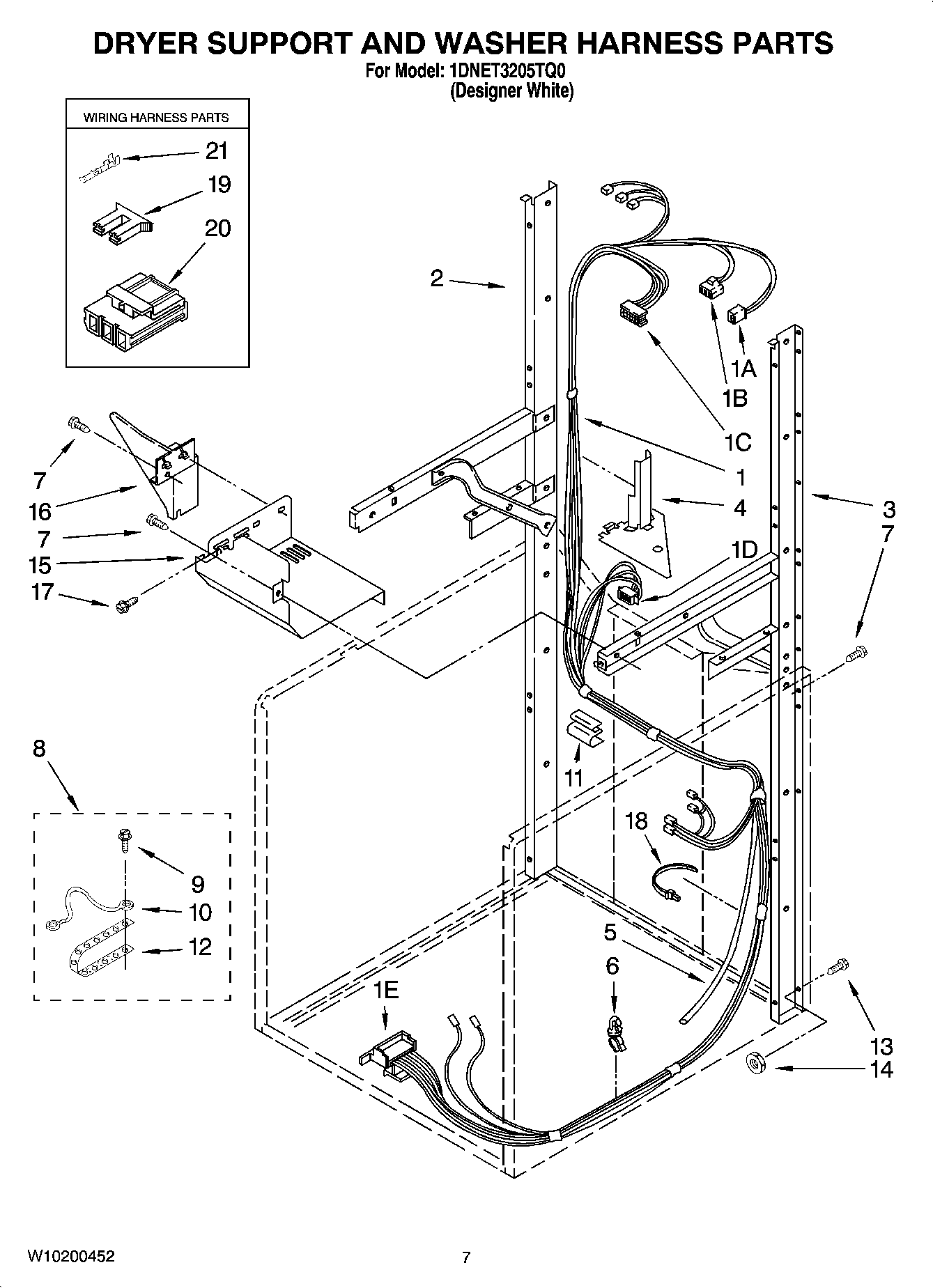

1DNET3205TQ0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

1DNET3205TQ0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

1DNET3205TQ0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1EBlock, Disconnect
1DReceptacle, 3 Way
1CBlock, Disconnect – Timer
1APlug, 3 Way
1MAY W10139637
1BConnector
2MAY 3388851
3MAY 3388850
4MAY 3390609
5MAY 8545438
6MAY 8281256
7SCREW
8MAY 685463
9MAY 8533971
10Wire
11Harness, Protector
12Strap, Grounding
13Bolt, 5/16-18 x 1/2 (4)
14Nut
15MAY 3394350
16MAY 3390336
17SCREW, 10-16 X 1/2
18Tie, Cable
19Connector, H-Pod
20Connector, Pressure Switch
21Terminal
21Terminal
