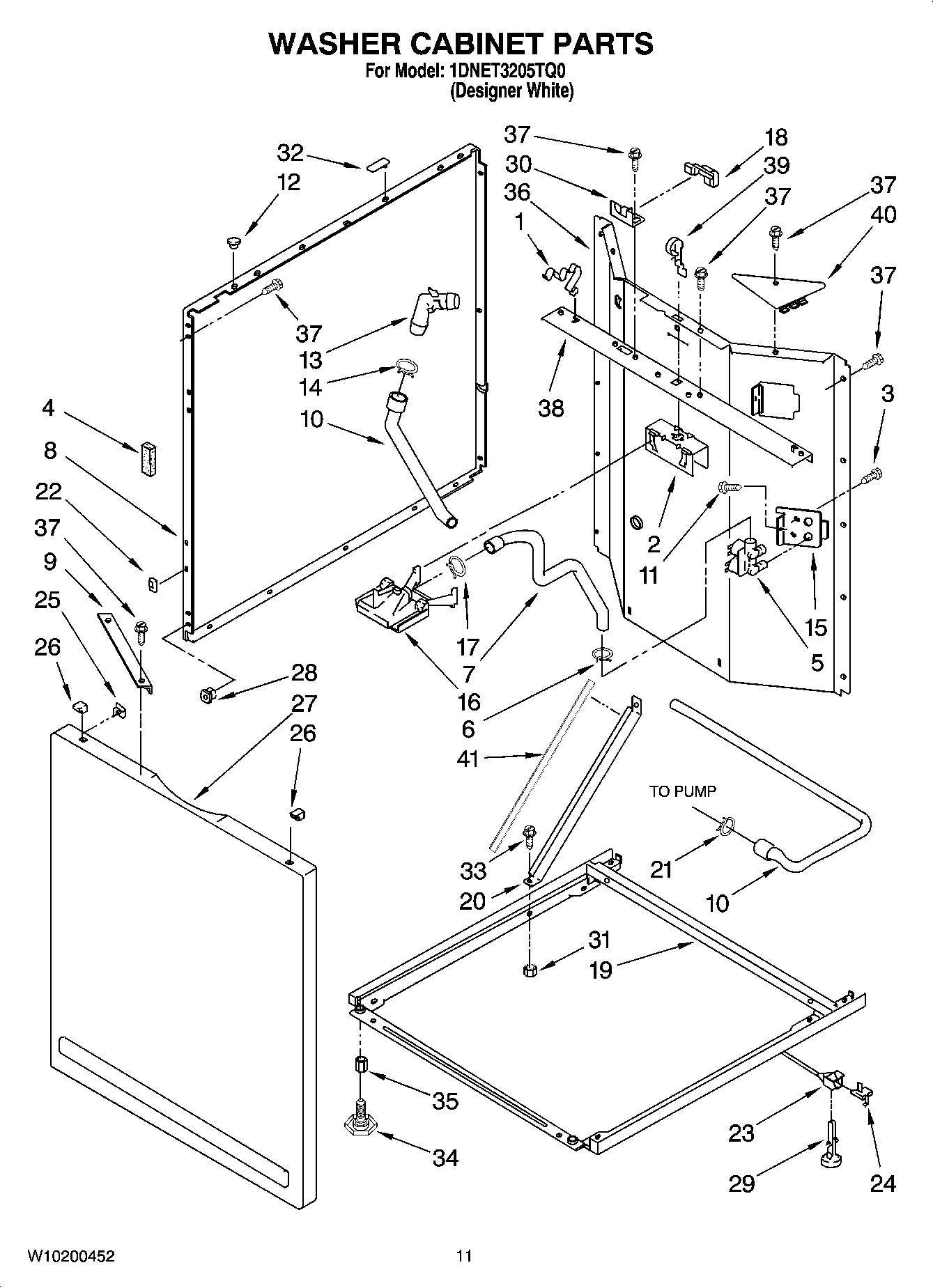

1DNET3205TQ0 07 – WASHER CABINET PARTS

Products

Position	Product
1	MAY 3349770
2	MAY 3349768
3	Screw, Mixing Valve Mounting
4	MAY 3350013
5	MAY 3979349
6	MAY 370451
7	Hose, Water Inlet (Vacuum Break To Mixing Valve)
8	MAY 3349455
9	MAY 3350745
10	MAY 3353841
11	SCREW
12	Plug, Top To Cabinet (2)
13	MAY 8557915
14	MAY 356138
15	MAY 3349673
16	Thermister, Inlet
17	MAY 371503
18	MAY 3350145
19	MAY 3402724
20	MAY 3388857
21	MAY 371507
22	MAY 3394083
23	MAY 3349311
24	MAY 359364
25	Clip, Ground
26	LOCK TOP
27	MAY 3349499
29	MAY 358594
30	MAY 3350144
31	Nut
32	Nut, Push-In (2)
33	Bolt, 5/16-18 x 1/2 (4)
34	MAY 389102
35	MAY 3400917
36	Panel, Rear (Washer)
37	SCREW
38	MAY 3349697
39	MAY 3350135
40	MAY 3390608
41	Edge, Protector
