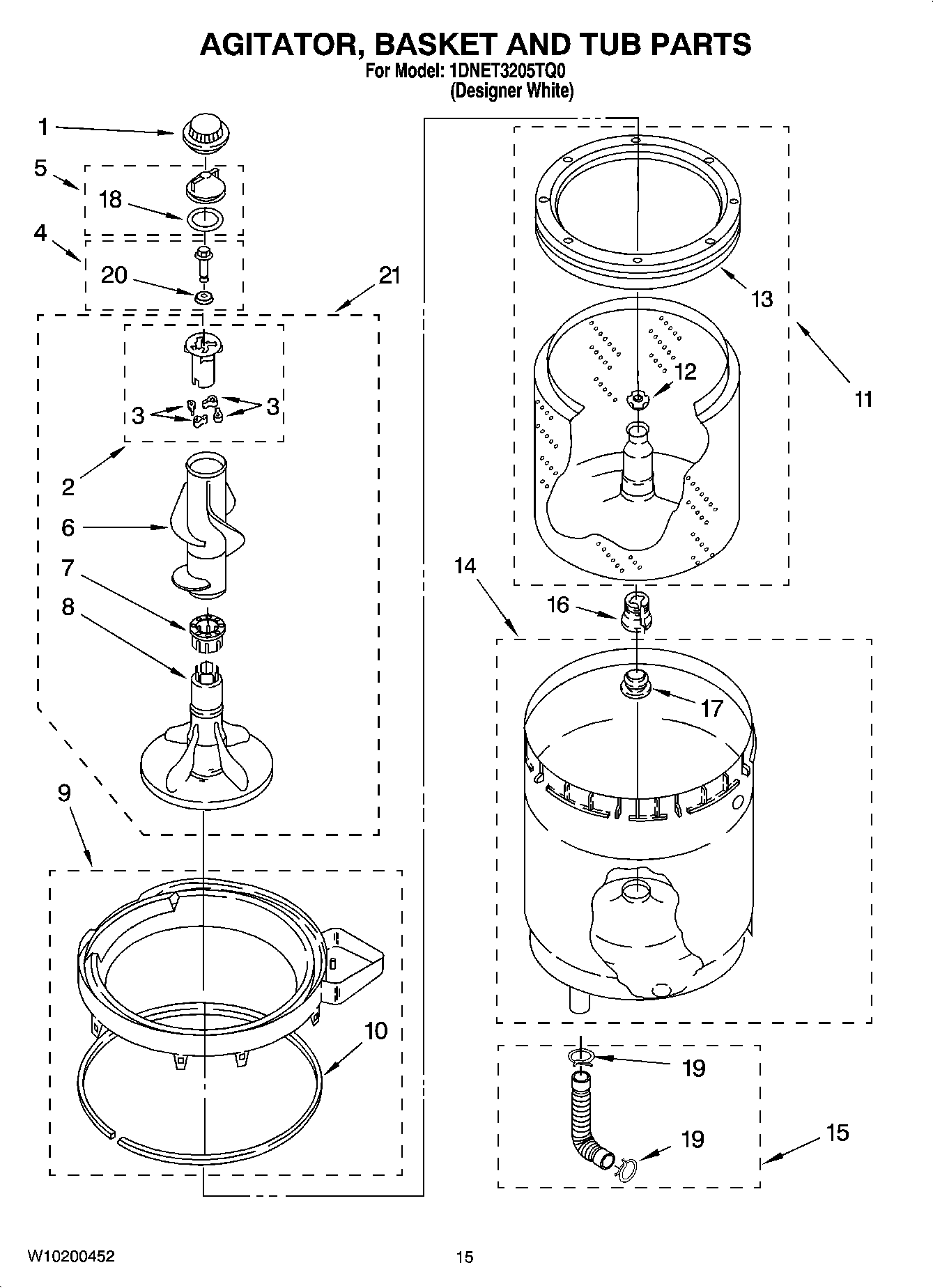

1DNET3205TQ0 10 – AGITATOR, BASKET AND TUB PARTS

1DNET3205TQ0 10 – AGITATOR, BASKET AND TUB PARTS

Written by

in

1DNET3205TQ0 10 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 3355758
2	MAY 3947410
3	Dog, Agitator (4)
4	Screw & Washer
5	MAY 387094
6	MAY 3349610
7	Spacer, Thrust
8	MAY 3349578
9	Tub Ring
10	MAY 3976308
11	MAY 3352234
12	MAY 21366
13	Ring, Balance
14	MAY 3349292
15	Hose & Clamp Assembly
16	Block, Drive
17	MAY 383727
18	MAY W10072840
19	Clamp, Hose (2)
20	MAY 3949550
21	MAY 3349743
