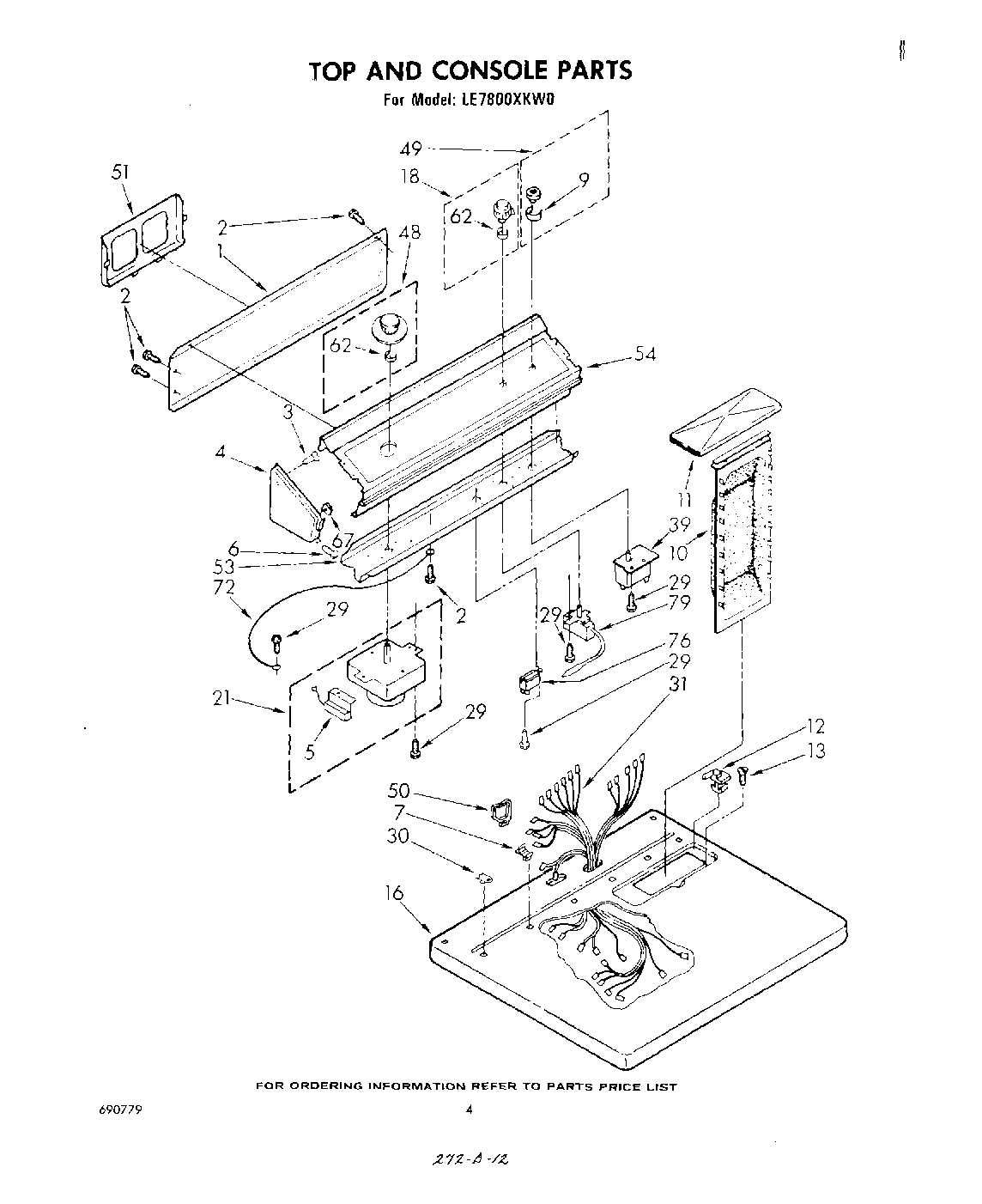

1LE7800XKW0 03 – SECTION

Products

PositionProduct
WPL LIT688898
Golden Harvest
Golden Harvest (Uncut)
WPL LIT688643
WPL ARI9072A89
72109 Whirlpool Dacor Avocado Touch-Up Paint
Paint, Touch-Up 1/2 Oz. (Coffee)
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
Enamel, Coffee (1 Qt. Uncut)
Enamel, New Avocado (1 Qt. Uncut)
WPL 690779
WPL 799351
WPL LIT690721
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
350938 Whirlpool Spray Gun
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (White)
4End Cap Assembly, L.H. (Coffee)
4Cap, End (L.H.) (White)
4Cap, End L.H. (Golden Harvest)
4End Cap Assembly, L.H. (New Avocado)
4Cap, End (L.H.) (Almond)
4End Cap Assembly, L.H. (New Avocado)
4End Cap Assembly, L.H. (Coffee)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
5279872 Whirlpool Resistor
6Screw, 8-18 x 1 (2)
7Stop, Push-In Top
9Clip
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (New Avocado)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Coffee)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Almond)
16Top (New Avocado)
16top (white)
16Top (Coffee)
16Top (Golden Harvest)
18Control Knob Assembly
21Timer & Resistor, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Pushbutton Assembly
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76Buzzer, Mini
79Thermostat, Adjustable
