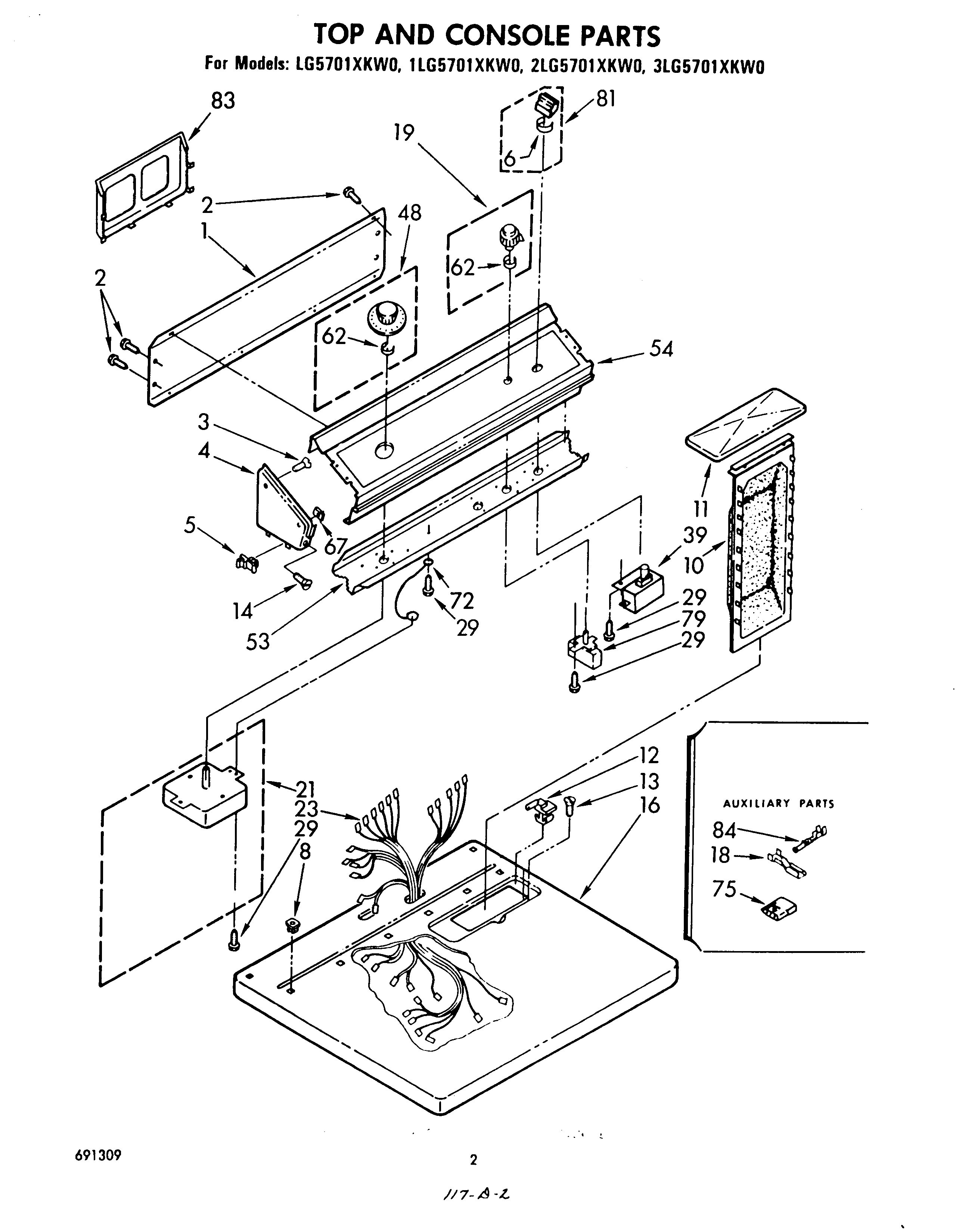

1LG5701XKW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

1LG5701XKW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

1LG5701XKW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 349849
Supplement, Installation Instructions
Wire, Adapter (4-1/2 “ Long)
Wire, Adapter (4“ Long)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
W10851673 Whirlpool Transformer
Golden Harvest
Golden Harvest (Uncut)
Wire, 25` Roll (Red 12 Ga.)
279320 Whirlpool Dryer Rear Terminal Block Kit
WPL 799351
WPL 687011
Instructions, Wiring
WPL LIT691309
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
WPL LIT688898
WPL LIT690725
Leveler (Thinner)
Almond (Uncut)
WPL LIT688644
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Golden Harvest)
5Stop, Push-In Top
6Clip
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16top (white)
16Top (Almond)
16Top (Golden Harvest)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 50 Hz.
21Timer, 60 Hz.
23Harness, Wiring
29WP3390631 Whirlpool Screw
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Rotary
81Button Assembly
83Rack, Literature
84WP596797 Whirlpool Terminal
