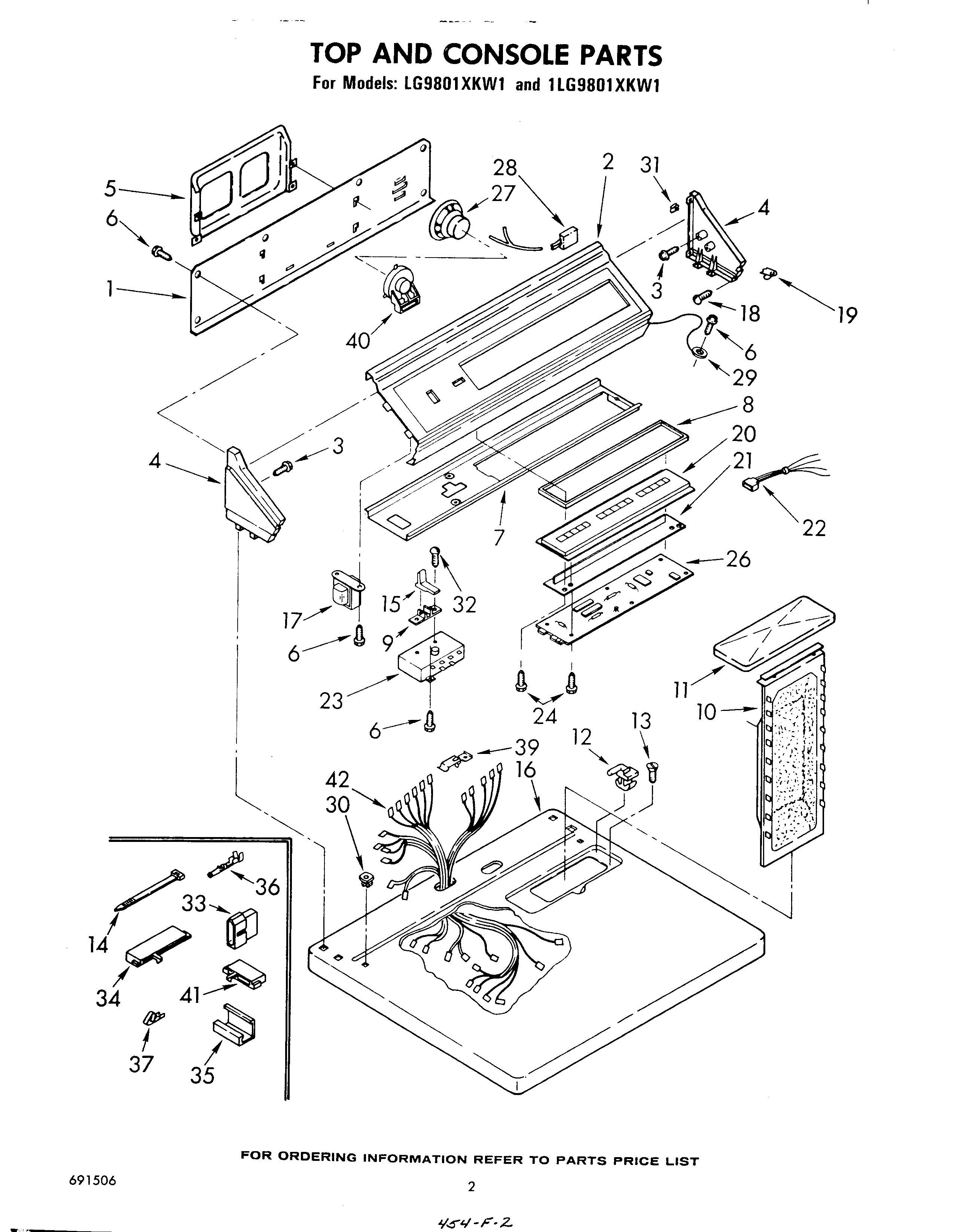

1LG9801XKW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

1LG9801XKW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

1LG9801XKW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest
	Golden Harvest (Uncut)
	WPL LIT691258
	WPL LIT688644
	Enamel, Coffee (1 Qt. Uncut)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	Paint, Touch-Up 1/2 Oz. (Coffee)
	paint, spray 13 oz. (coffee)
	Paint, Spray 13 Oz. (Avocado)
	Enamel, New Avocado (1 Qt. Uncut)
	WPL 799351
	WPL LIT691506
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	WPL LIT688898
1	Panel, Rear Console
2	Panel, Control
3	WPL 355326
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End L.H. (Golden Harvest)
4	End Cap Assembly, L.H. (Coffee)
4	Cap, End L.H. (White)
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (Coffee)
4	Cap, End (L.H.) (White)
5	Rack, Literature
6	SCREW
7	Bracket, Control
8	Trim, Frame
9	Pivot, Lever
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Coffee)
11	Cover, Lint Screen (New Avocado)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPW10339879 Whirlpool Wire Tie
15	Lever
16	top (white)
16	Top (New Avocado)
16	Top (Coffee)
16	Top (Golden Harvest)
16	Top (Almond)
17	Transformer
18	Screw, 8-18 x 1 (2)
19	Stop, Push-In Top
20	Module, Touch
21	Display Assembly
22	Harness, Display
23	Relay, Push-To-Start
24	Screw, 8-18 x 1/2 (6)
26	Microcomputer Assembly
27	Speaker
28	Speaker, Harness
29	Wire, Ground
30	Nut, Push-In (2)
31	WP689559 Whirlpool Nut
32	WPW10068250 Whirlpool Dishwasher Screw
33	Plug
34	WPL 60447
35	WPL 60719
36	WP94614 Whirlpool Terminal
36	WP596797 Whirlpool Terminal
37	Terminal
39	Clip, Wire (Tech Sheet/Top)
40	WPL 359188
41	WPL 60671
42	WPL 690073
