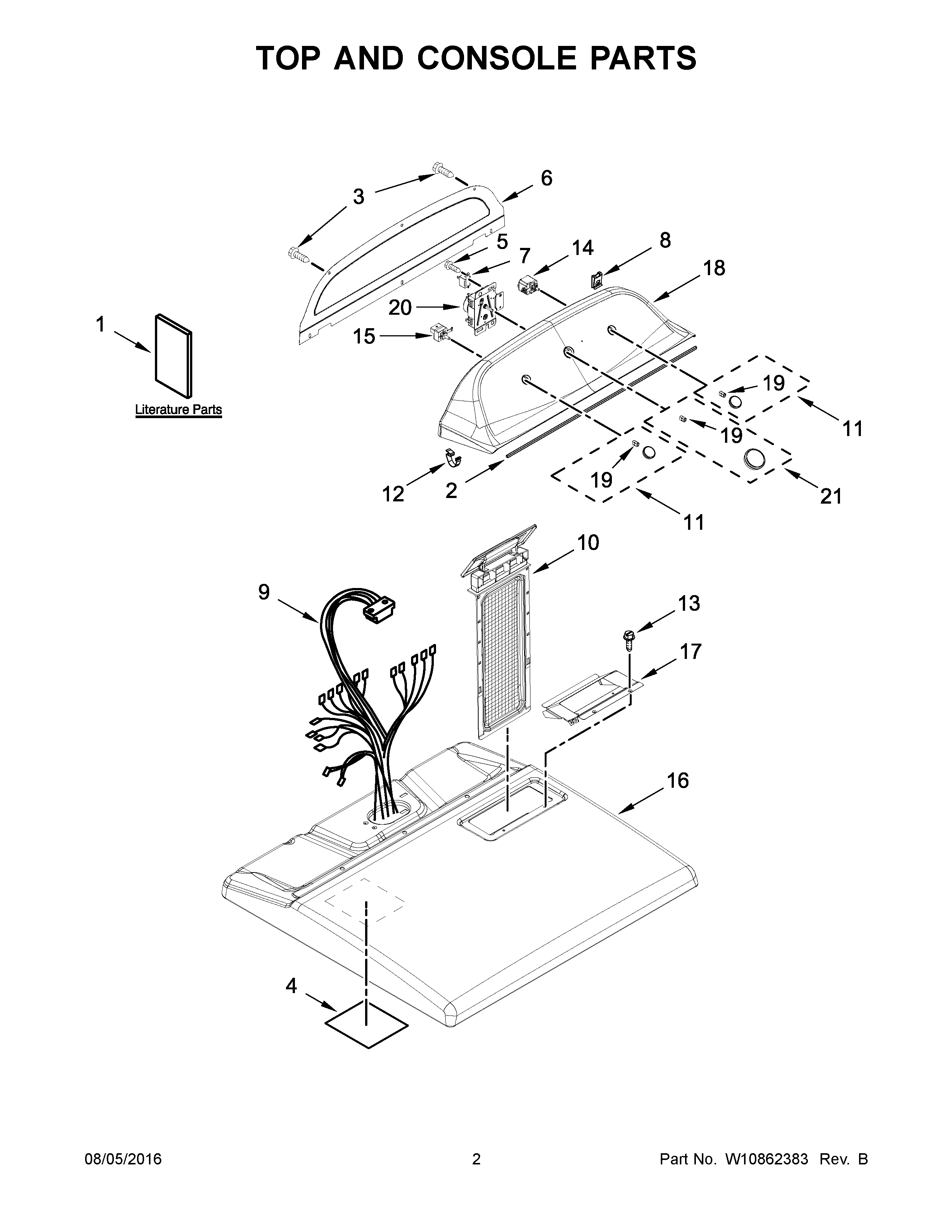

1MWED1750EM0 02 – TOP AND CONSOLE PARTS

1MWED1750EM0 02 – TOP AND CONSOLE PARTS

Written by

in

1MWED1750EM0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W11721376 Whirlpool Seal Assembly
3WP693995 Whirlpool Screw
4W11668653 Whirlpool Sound Panel
5WP9740848 Whirlpool Dishwasher Screw
6W10756582 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8W11213336 Whirlpool Nut
9HARNESS, WIRING
10SCREEN
11ASSEMBLY, KNOB (CHROME)
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14WPW10446920 Whirlpool Switch Start
15W10648593 Whirlpool Switch
16W11222514 Whirlpool Top Assembly
17W10662472 Whirlpool Cover Assembly
18ASSEMBLY, CONSOLE (WHITE)
19WP8536939 Whirlpool Spring Clip
20WPW10436303 Whirlpool Dryer Timer
21ASSEMBLY, TIMER KNOB (CHROME)
