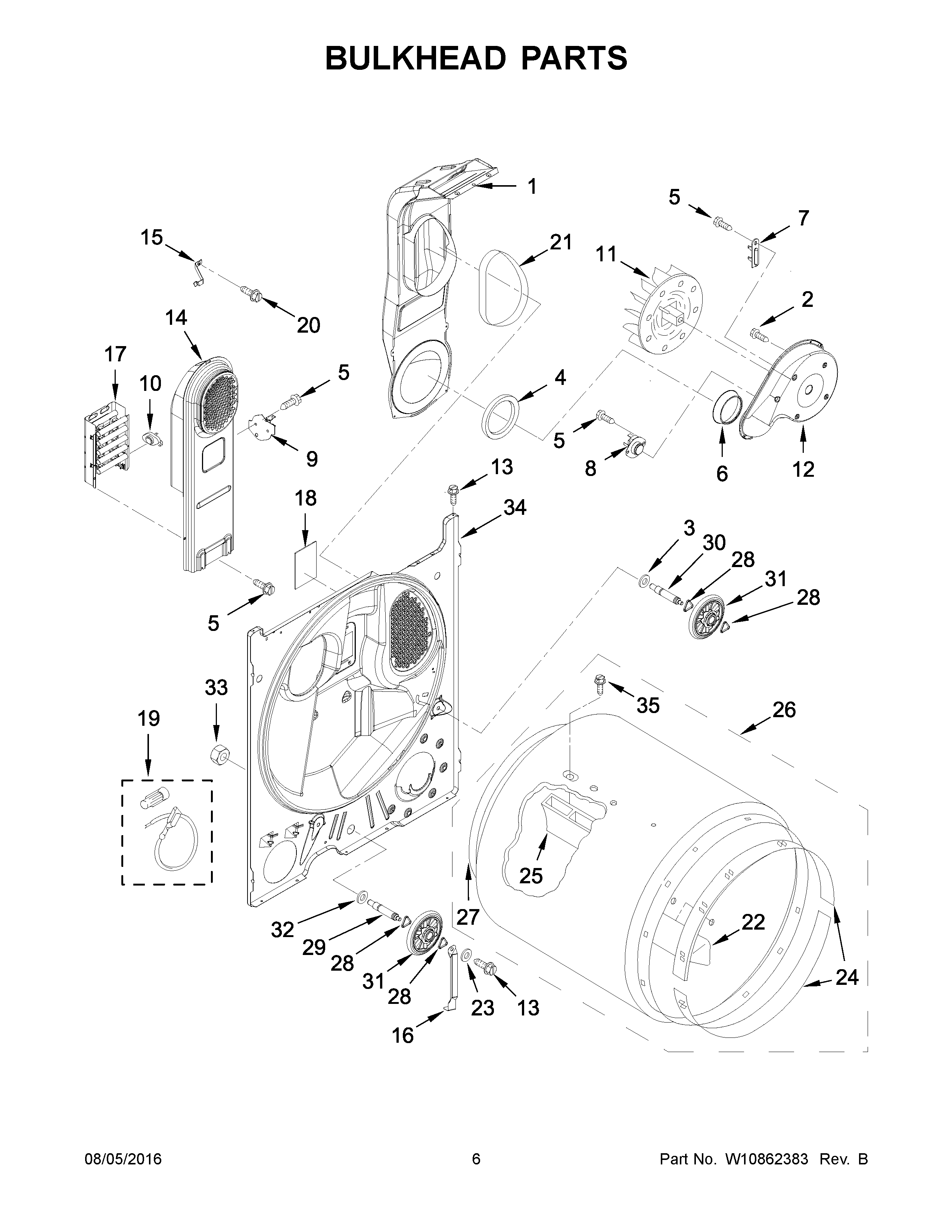

1MWED1750EM0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	W10900067 Whirlpool Dryer Cut-Off Timer
10	WP3977767 Whirlpoo Dryer High Limit Thermostat
11	WP694089 Whirlpool Dryer Blower Wheel
12	WP8577230 Whirlpool Housing
13	SCREW
14	WP8541818 Whirlpool Box
15	279771 Whirlpool Clip
16	W11684613 Whirlpool Bracket
17	279838 Whirlpool Dryer Heating Element 5400W
18	W11409002 Whirlpool Pad
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP489463 Whirlpool Refrigerator Screw
21	SEAL
22	WP3403636 Whirlpool Drum Baffle
23	WP90296 Whirlpool Clip
24	279441 Whirlpool Front Bearing Ring
25	BAFFLE-DRM
26	W10899578 Whirlpool Dryer Drum Assembly
27	W10612022 Whirlpool Felt Seal
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	W11229607 Whirlpool Nut
34	W11178668 Whirlpool Bulkhead
35	W10853898 Whirlpool Screw
