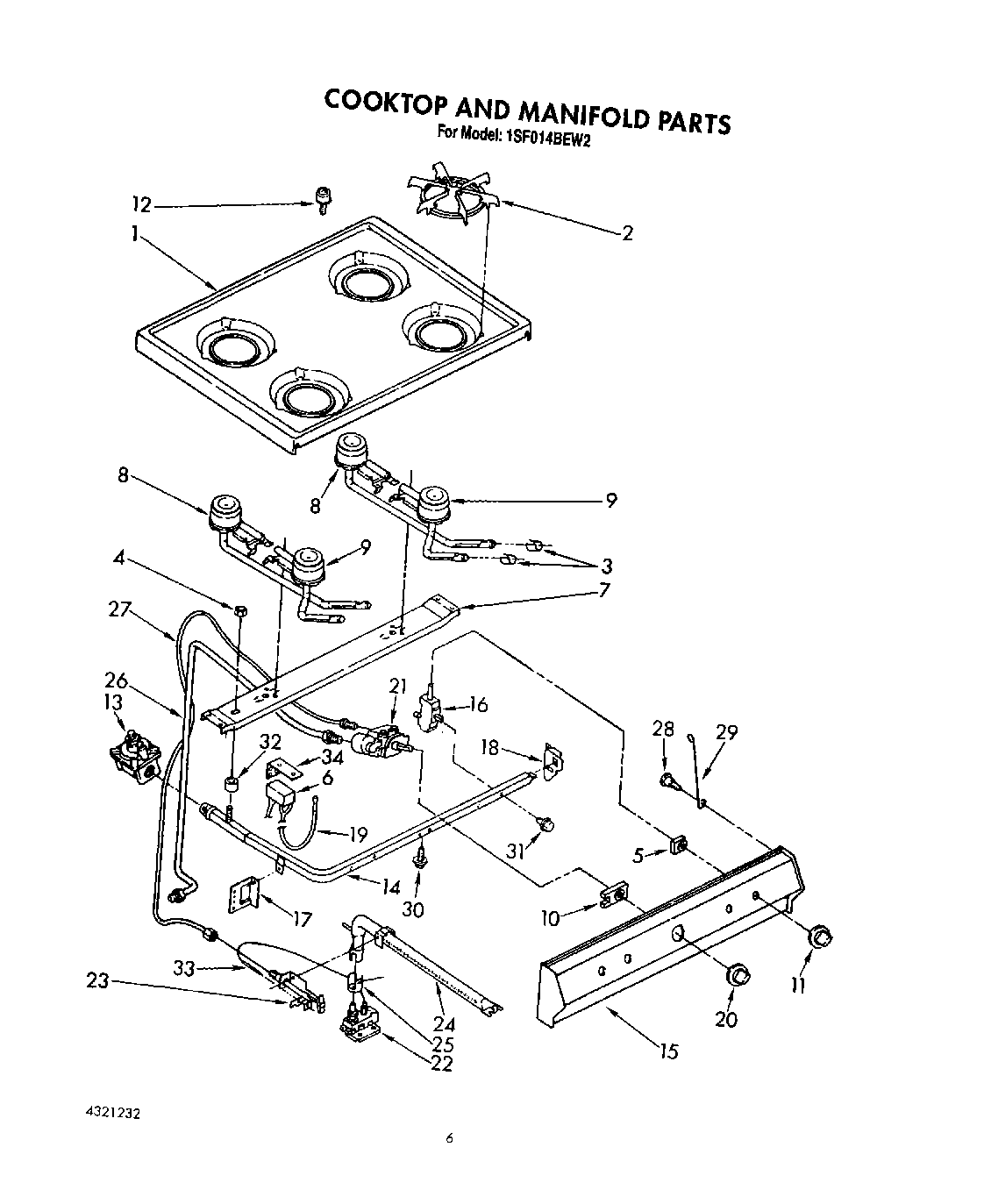

1SF014BEW2 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4321232
	WPL LIT4315635
	Guide, Use & Care
	Instuctions, Ins
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	WP878009 Whirlpool Igniter Switch
6	Module, Spark
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	WP4157180 Whirlpool Surface Burner Ignition Switch
11	WP4179282 Whirlpool Knob
12	Speed Clip (4)
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Ignitor (L.H.)
19	Ignitor (R.H.)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 30)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Bolt, Thermostat Mounting (2)
31	Bolt, Valve Mounting
32	Spacer, Manifold
33	Ignitor, Oven
34	Plate, Spark Module
34	FOIL, ALUMINUM OVEN (18“ X 25 )
34	WPW10208653 Whirlpool Insulation
