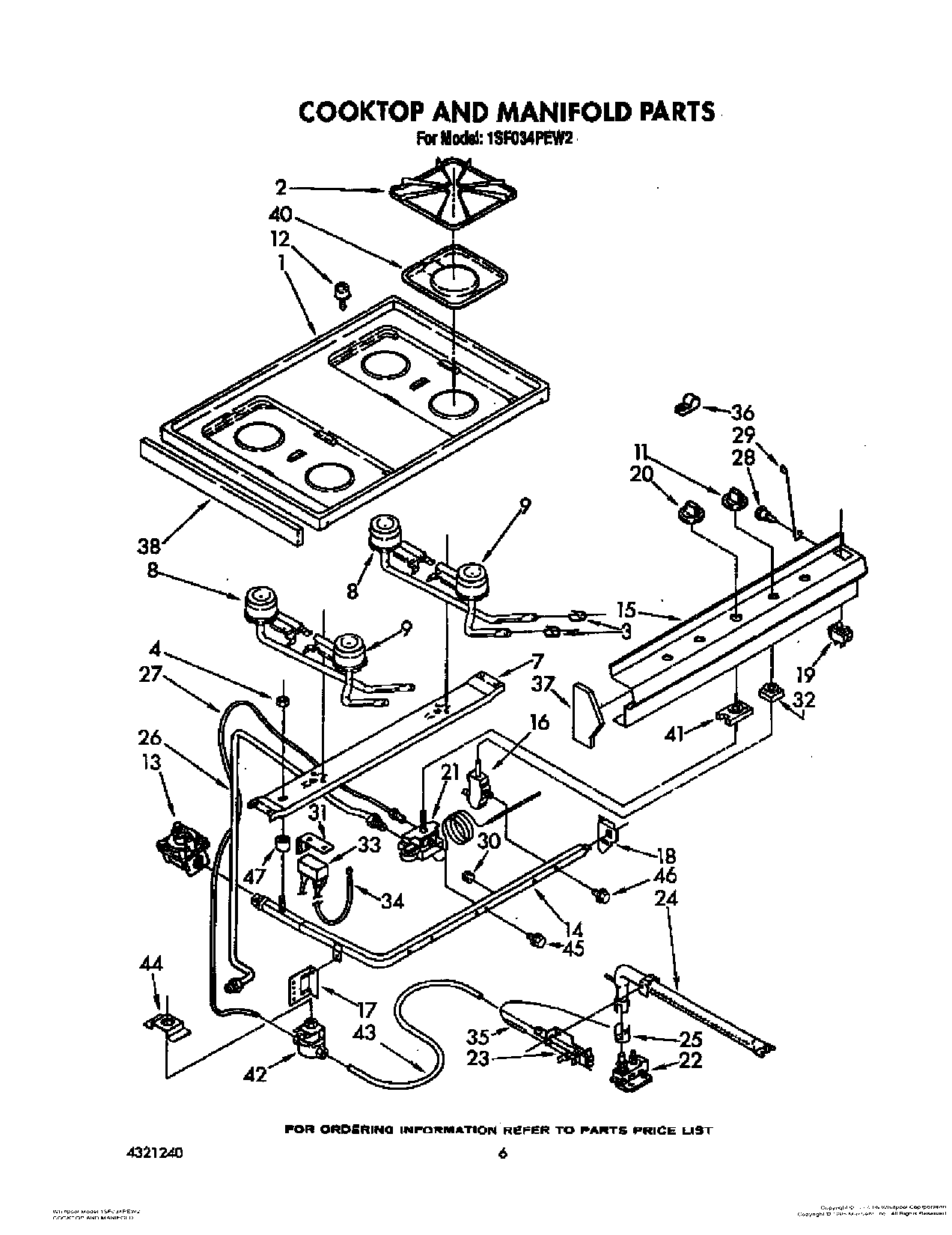

1SF034PEN2 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Instuctions, Ins
	WPL LIT4315636
	WPL LIT4315637
	WPL LIT4321240
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4179282 Whirlpool Knob
12	Speed Clip (4)
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4) (Includes Ill. No. 46)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing, (Thermostat To Solenoid)
28	Screw
29	Rod, Support
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	Module, Spark
34	Ignitor (L.H.)
34	Ignitor (R.H.)
35	Ignitor, Oven
36	Strain Relief
37	Endcap (L.H.)
37	Endcap (R.H.)
38	Trim, Cooktop (2)
40	WP786333 Whirlpool Drip Bowl
41	WP878009 Whirlpool Igniter Switch
42	Valve, Solenoid
43	Tubing, (Solenoid to Burner Pilot)
44	Bracket, Solenoid
45	Bolt, Thermostat Mounting (2)
46	Bolt, Valve Mounting
47	WPW10208653 Whirlpool Insulation
47	FOIL, ALUMINUM OVEN (18“ X 25 )
47	Spacer, Manifold
