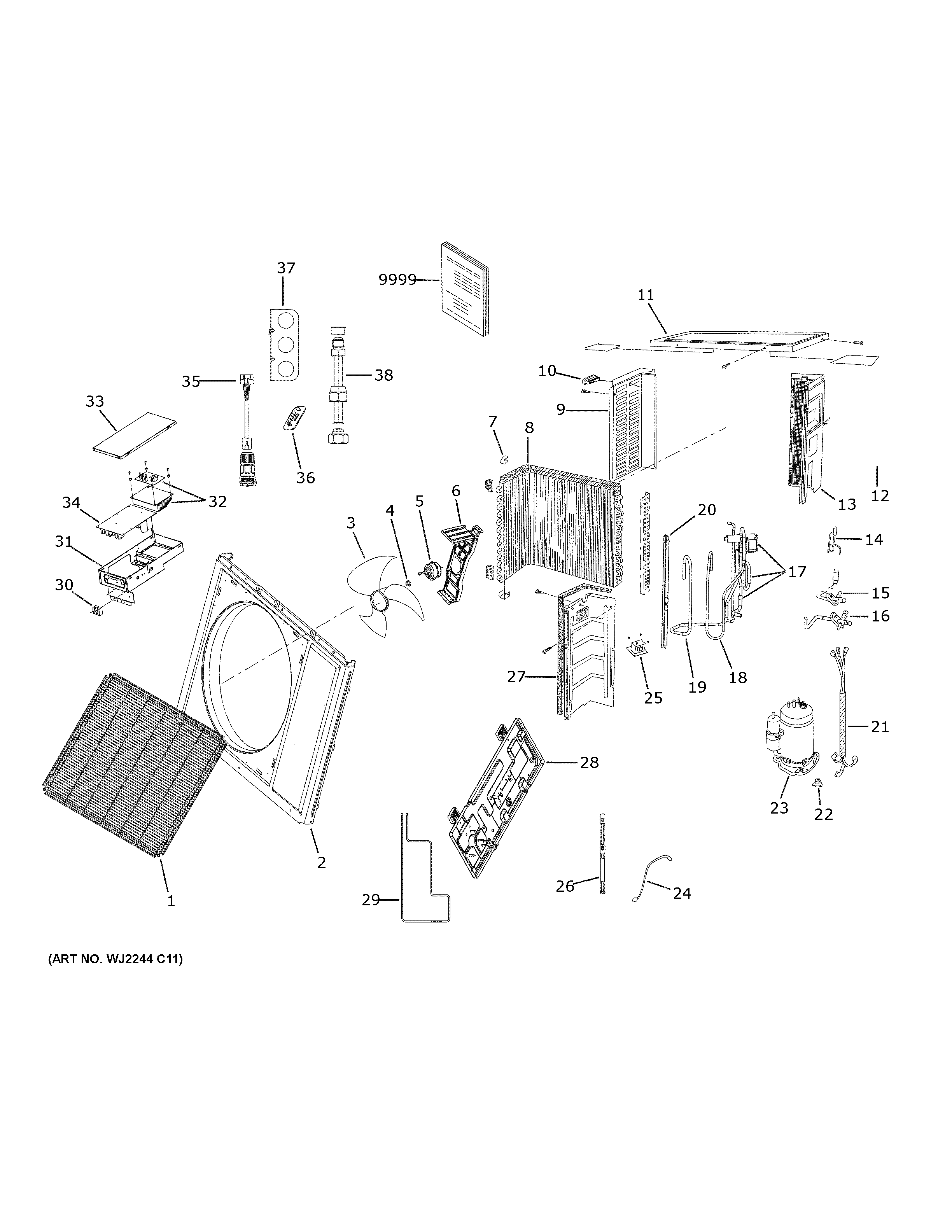

1U09EH2HEB1 ROOM AIR CONDITIONER

Products

Position	Product
1	GRILLE
2	WJ76X23212 GE Casing Assembly
3	FAN BLADE
4	WJ01X22974 GE Flange Nut
5	OUTDOOR FAN MOTOR
6	WJ65X23001 GE Bracket Outdoor Fan Motor
7	WJ01X23219 GE Sensor Clip
8	CONDENSER
9	WJ71X23215 GE Left Side Panel
10	WJ01X24664 GE Handle
11	TOP COVER
12	WJ76X23007 GE Valve Cover
13	RIGHT SIDE PANEL
14	WJ53X26455 GE EEV Valve
15	WJ53X24973 GE Liquid Service Valve
16	WJ53X24975 GE Vapor Service Valve
17	WJ53X26454 GE 4-Way Valve
18	DISCHARGE TUBE
19	WJ53X26452 GE Suction Tube
20	WJ65X32954 GE Support Bar
21	WJ35X27920 GE Outdoor Harness Wire
22	WJ01X26442 GE Compressor Nut
23	COMPRESSOR
24	WJ26X23009 GE Suction Sensor
25	WJ27X23157 GE Reactor
26	COMPRESSOR HEATER
27	WJ71X32956 GE Divider Panel
28	BOTTOM PLATE ASSY.
29	WJ27X24665 GE Heater Basepan
30	WJ27X26435 GE Terminal Block
31	ELECTRICAL BOX
32	WJ26X27117 GE Inverter Assembly
33	CONTROL BOX COVER
34	WJ26X33213 GE Power Control Board
35	RJ45
36	WJ76X27114 GE Cover
37	WJ65X27113 GE Bracket Strain Relief
38	WJ01X27116 GE 1/2" X 3/8" Adapter
9999	PM INSTALL INSTRUCTIONS
