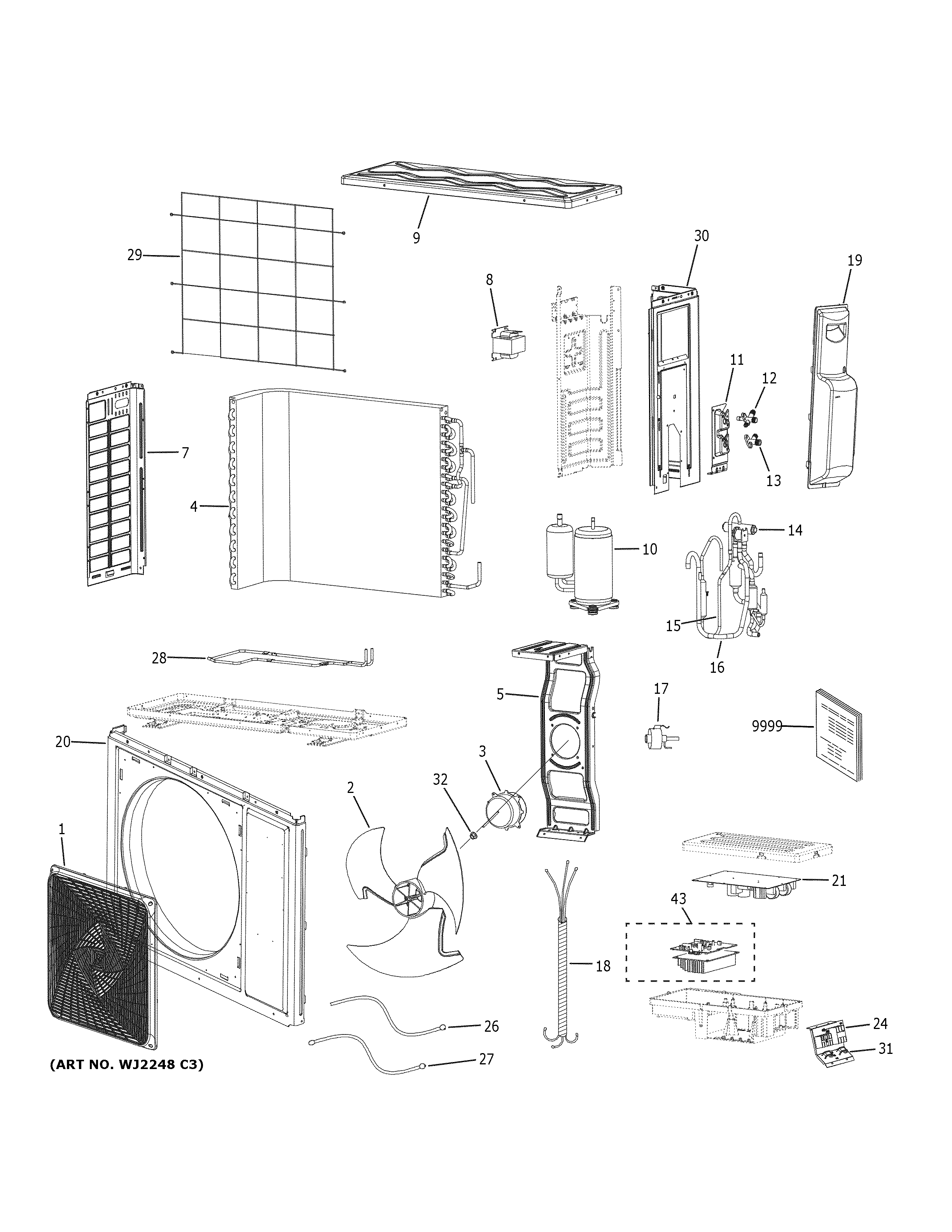

1U09EH2VHA ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X25295 GE Appliance Grille
2	FAN BLADE
3	WJ94X23152 GE Outdoor Fan Motor
4	CONDENSER
5	WJ65X23153 GE Outdoor Fan Motor Bracket
7	LEFT SIDE PANEL
8	WJ27X23157 GE Reactor
9	TOP COVER
10	COMPRESSOR
11	VALVE SET
12	WJ53X22991 GE Liquid Service Valve
13	WJ53X24974 GE Vapor Service Valve
14	WJ53X22987 GE 4-Way Valve Assembly
15	WJ53X23147 GE Discharge Tube
16	WJ53X23161 GE Suction Tube
18	WJ35X25394 GE Outdoor Wire Harness
19	WJ76X23160 GE Valve Cover
20	CASING
21	POWER PCB & EEV KIT
24	TERMINAL BLOCK
26	WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
27	WJ26X23009 GE Suction Sensor
28	WJ27X23156 GE Heater Pan
29	WJ01X23158 GE Rear Protection Net
30	RIGHT SIDE PANEL
31	WJ27X23011 GE Indoor Terminal Block
32	FLANGE NUT
43	WJ26X24108 GE Inverter Assembly
9999	PM Installation Manual
