1U09ES2VHA ROOM AIR CONDITIONER

Products

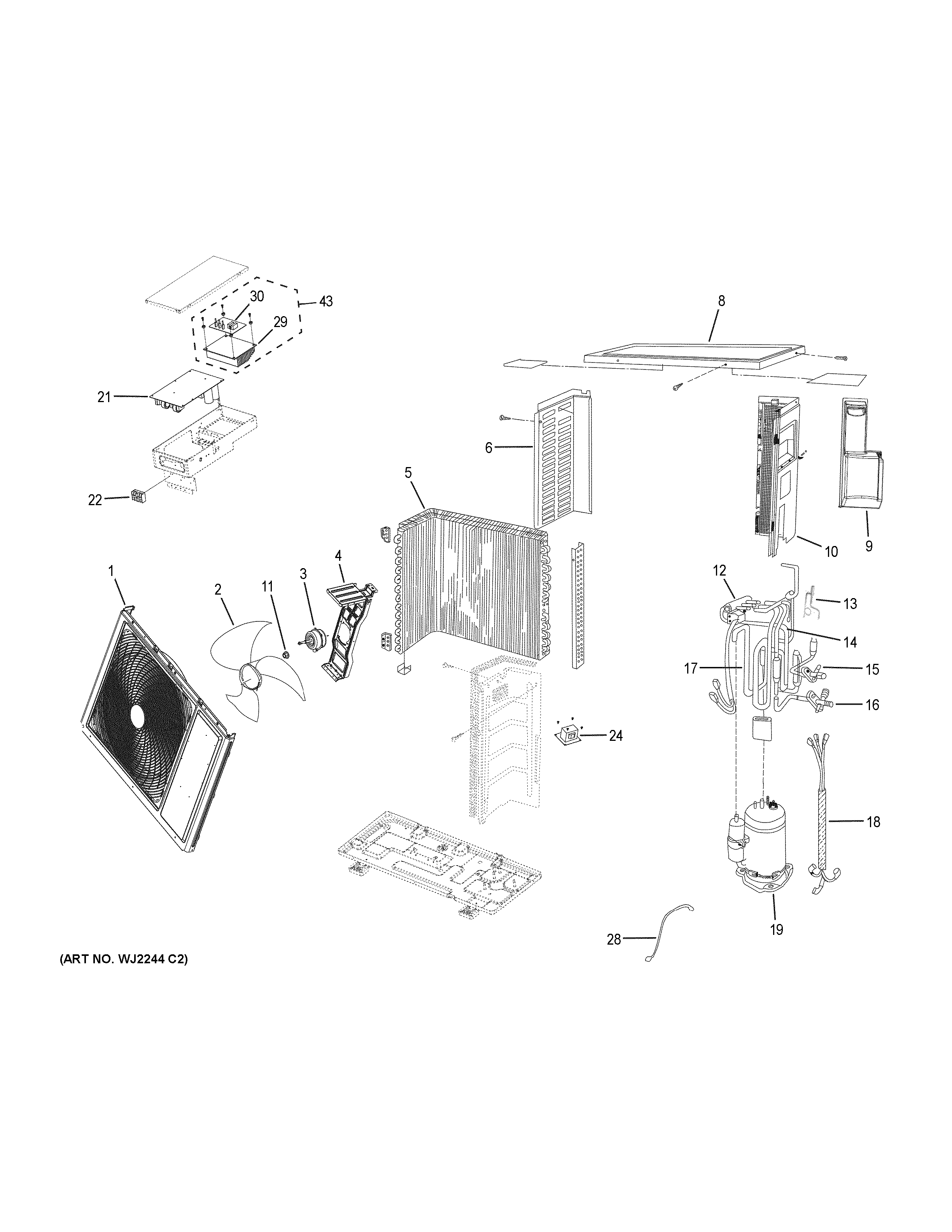

Position	Product
1	CASING
2	WJ73X22973 GE Fan Blade
3	OUTDOOR FAN MOTOR
4	WJ65X22976 GE Outdoor Fan Motor Bracket
5	CONDENSER
6	LEFT SIDE PANEL
8	TOP COVER
9	WJ76X22982 GE Valve Cover
10	RIGHT SIDE PANEL
11	WJ01X22974 GE Flange Nut
12	WJ53X22967 GE Valve 4-Way
13	WJ53X22972 GE Electronic Expansion Valve
14	WJ53X22971 GE Discharge Tube
15	WJ53X22965 GE Liquid Valve Service
16	WJ53X22966 GE Vapor Valve Service
17	WJ53X22983 GE Suction Tube
18	WJ35X22978 GE Outdoor Wire Harness
19	COMPRESSOR
21	WJ26X22979 GE Power Control Board
22	WJ27X22985 GE Terminal Block
24	WJ27X22981 GE Reactor
28	WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
29	WJ27X22980 GE Radiator
30	WJ26X22977 GE Outdoor Module
43	WJ26X24110 GE Inverter Assembly
