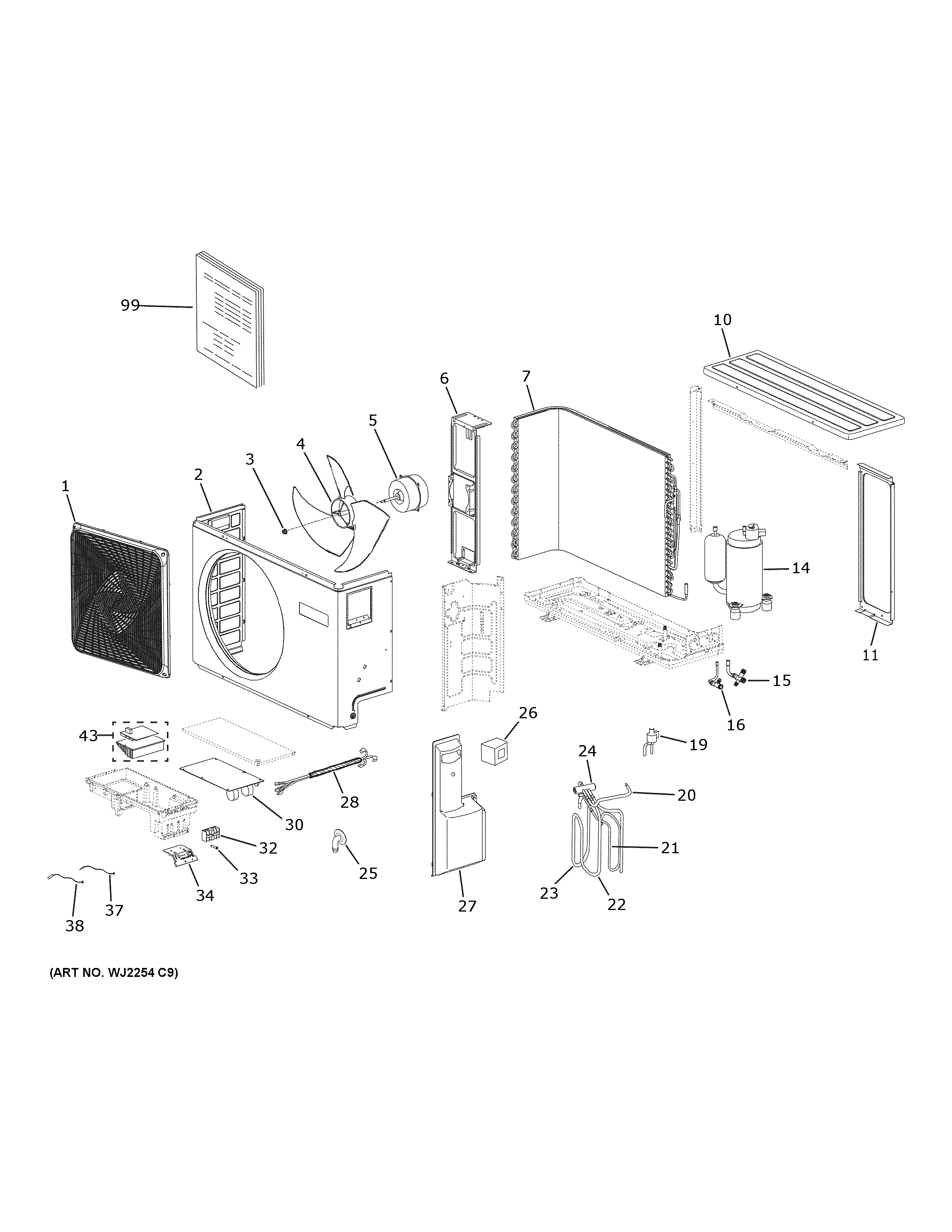

1U09TE1VHA ROOM AIR CONDITIONERadmin2025-04-26T08:34:39+00:001U09TE1VHA ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X23191 GE Grille2WJ76X23185 GE Casing3WJ01X22974 GE Flange Nut4WJ73X23190 GE Fan Blade5OUTDOOR FAN MOTOR6WJ65X23192 GE Outdoor Fan Motor Bracket7WJ88X23187 GE Condenser10WJ76X23200 GE Top Cover11WJ76X23197 GE Rear Board Guard14WJ98X23186 GE Compressor15WJ53X24974 GE Vapor Service Valve16WJ53X22991 GE Liquid Service Valve19WJ53X23148 GE Expansion Valve Electronic20WJ53X23189 GE Exhaust Pipe21WJ53X23183 GE Air Inlet Pipe22WJ53X23188 GE Discharge Tube23WJ53X23199 GE Suction Tube24WJ53X23182 GE 4-Way Valve25DRAIN ELBOW26WJ26X23196 GE Reactor27STOP VALVE COVER28WJ35X23202 GE Outdoor Wiring Harness30WJ26X23194 GE Outdoor Power Control Board32WJ27X22985 GE Terminal Block33WJ01X23198 GE Screw Assembly34CAPACITOR BOARD37WJ26X22984 GE Sensor Assembly Amb/Dis/Coil38WJ26X23009 GE Suction Sensor43WJ26X24104 GE Inverter Assembly99PM INSTALL INSTRUCTIONS
