1U12EH2VHA ROOM AIR CONDITIONER

Products

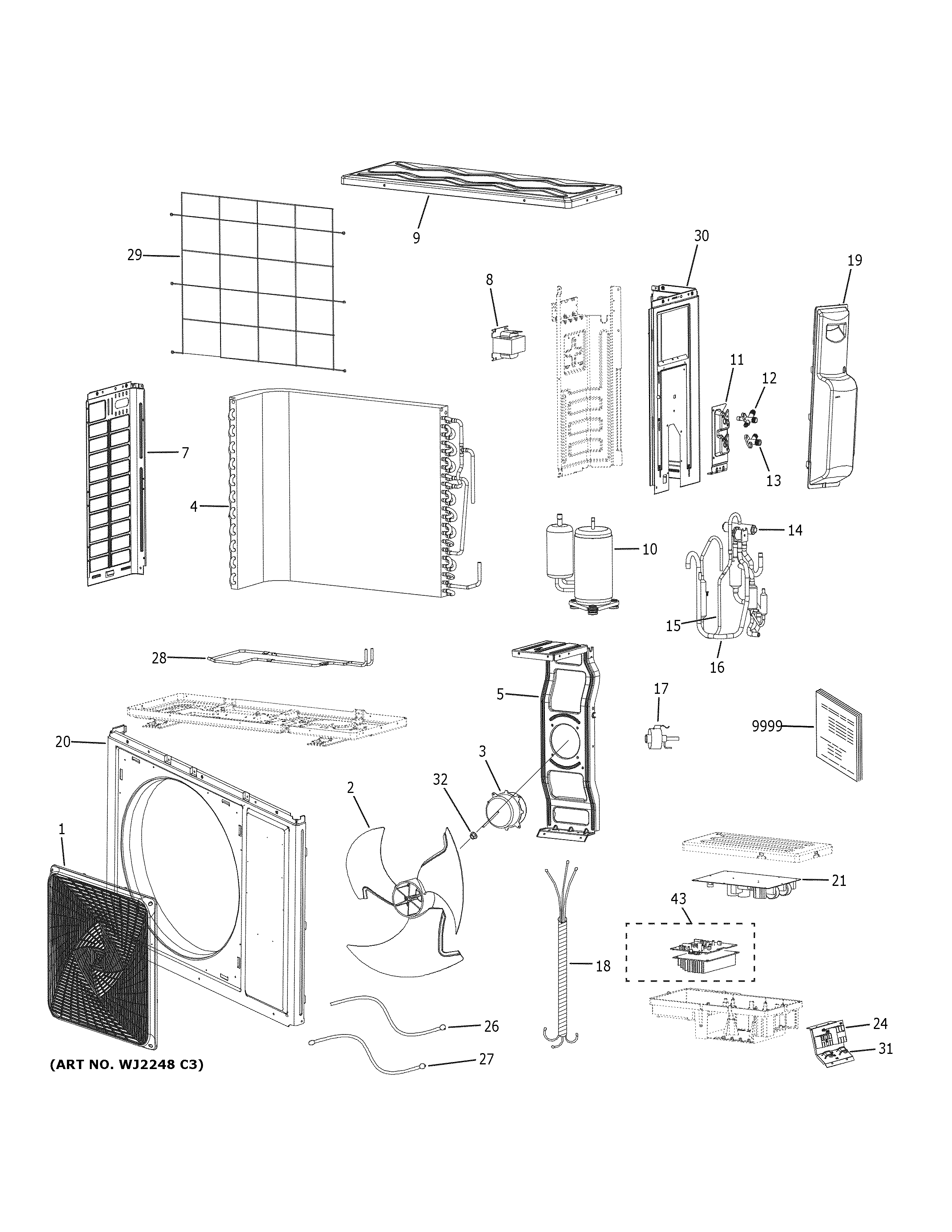

PositionProduct
1WJ71X25295 GE Appliance Grille
2FAN BLADE
3WJ94X23152 GE Outdoor Fan Motor
4CONDENSER
5WJ65X23153 GE Outdoor Fan Motor Bracket
7LEFT SIDE PANEL
8WJ27X23157 GE Reactor
9TOP COVER
10WJ98X23164 GE Compressor
11VALVE SET
12WJ53X22991 GE Liquid Service Valve
13WJ53X24974 GE Vapor Service Valve
14WJ53X22987 GE 4-Way Valve Assembly
15WJ53X23165 GE Discharge Tube
16SUCTION TUBE
17WJ53X23148 GE Expansion Valve Electronic
18WJ35X25394 GE Outdoor Wire Harness
19WJ76X23160 GE Valve Cover
20CASING
21WJ26X23167 GE Outdoor Power Control Board
24TERMINAL BLOCK
26WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
27WJ26X23009 GE Suction Sensor
28WJ27X23156 GE Heater Pan
29WJ01X23158 GE Rear Protection Net
30RIGHT SIDE PANEL
31WJ27X23011 GE Indoor Terminal Block
32FLANGE NUT
43WJ26X24103 GE Inverter Assembly
9999PM Installation Manual
