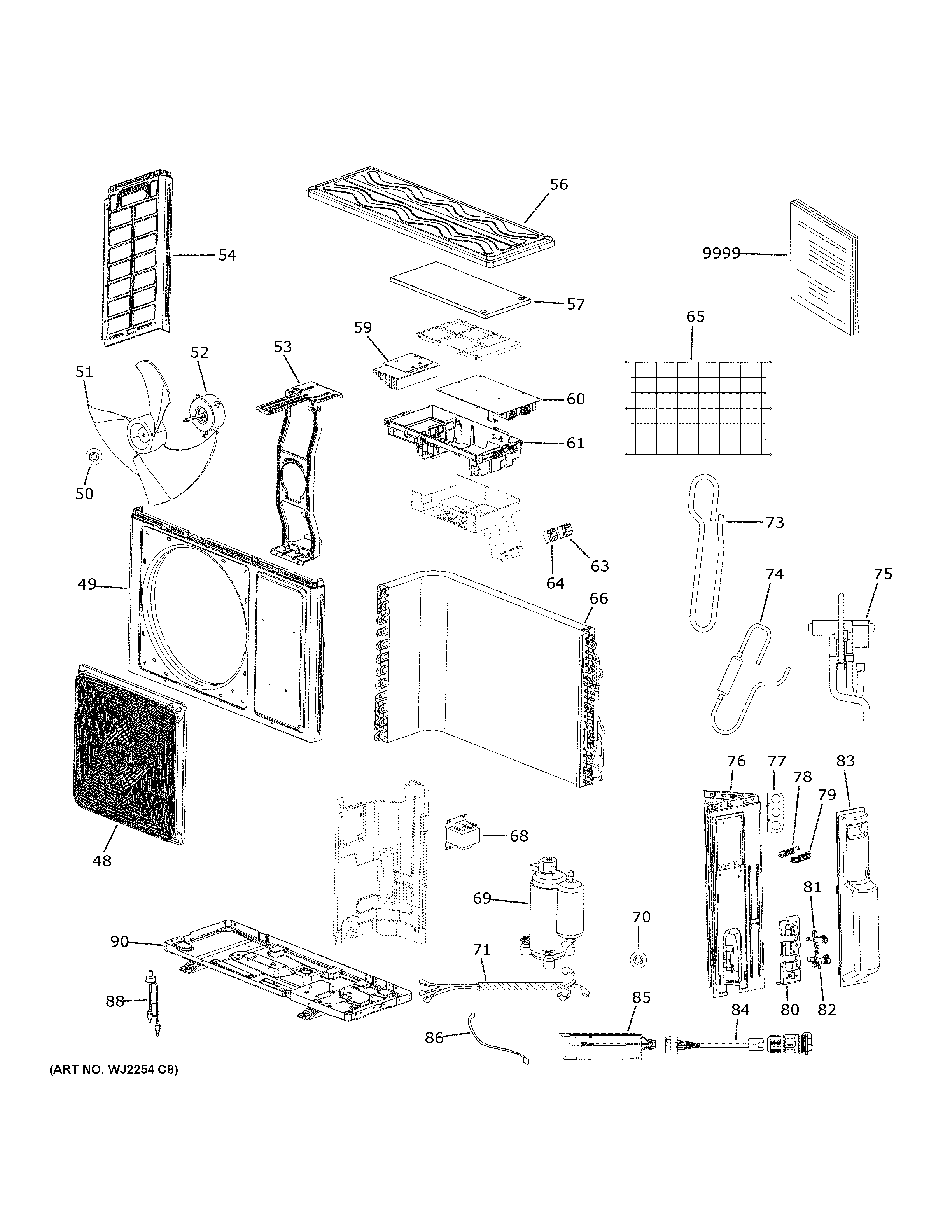

1U12TE2HDA1 ROOM AIR CONDITIONER

Products

Position	Product
48	WJ71X28176 GE Grille
49	WJ76X27933 GE Casing
50	FLANGE NUT
51	WJ73X27897 GE Fan Blade
52	OUTDOOR FAN MOTOR
53	WJ65X27874 GE Fan Motor Bracket
54	WJ76X27935 GE Left Side Panel
56	WJ76X27934 GE Top Cover
57	WJ76X28173 GE Electrical Box Cover
59	WJ26X27939 GE Inverter Assembly
60	WJ26X27941 GE Outdoor Power Control Board
61	ELECTRICAL BOX
63	WJ27X27922 GE Indoor Terminal Block
64	TERMINAL BLOCK
65	WJ71X27893 GE Washer Rear Grille
66	CONDENSER
68	WJ27X22981 GE Reactor
69	WJ98X27925 GE Compressor
70	WJ01X26442 GE Compressor Nut
71	WJ35X27920 GE Outdoor Harness Wire
73	WJ53X27928 GE Suction Tube
74	DISCHARGE TUBE
75	WJ53X27931 GE 4-Way Valve
76	WJ76X27938 GE Side Panel Right
77	WJ65X27113 GE Bracket Strain Relief
78	WJ65X27899 GE Strain Relief Top
79	WJ65X27900 GE Bottom Strain Relief
80	WJ65X27936 GE Valve Mount Service
81	WJ53X24973 GE Liquid Service Valve
82	WJ53X24974 GE Vapor Service Valve
83	WJ76X27909 GE Service Valve Cover
84	RJ45
85	WJ26X27921 GE Ambient Thermistor
86	WJ26X23009 GE Suction Sensor
88	WJ53X28177 GE Electronic Expansion Valve
90	BOTTOM PLATE ASSY.
9999	PM INSTALL INSTRUCTIONS
