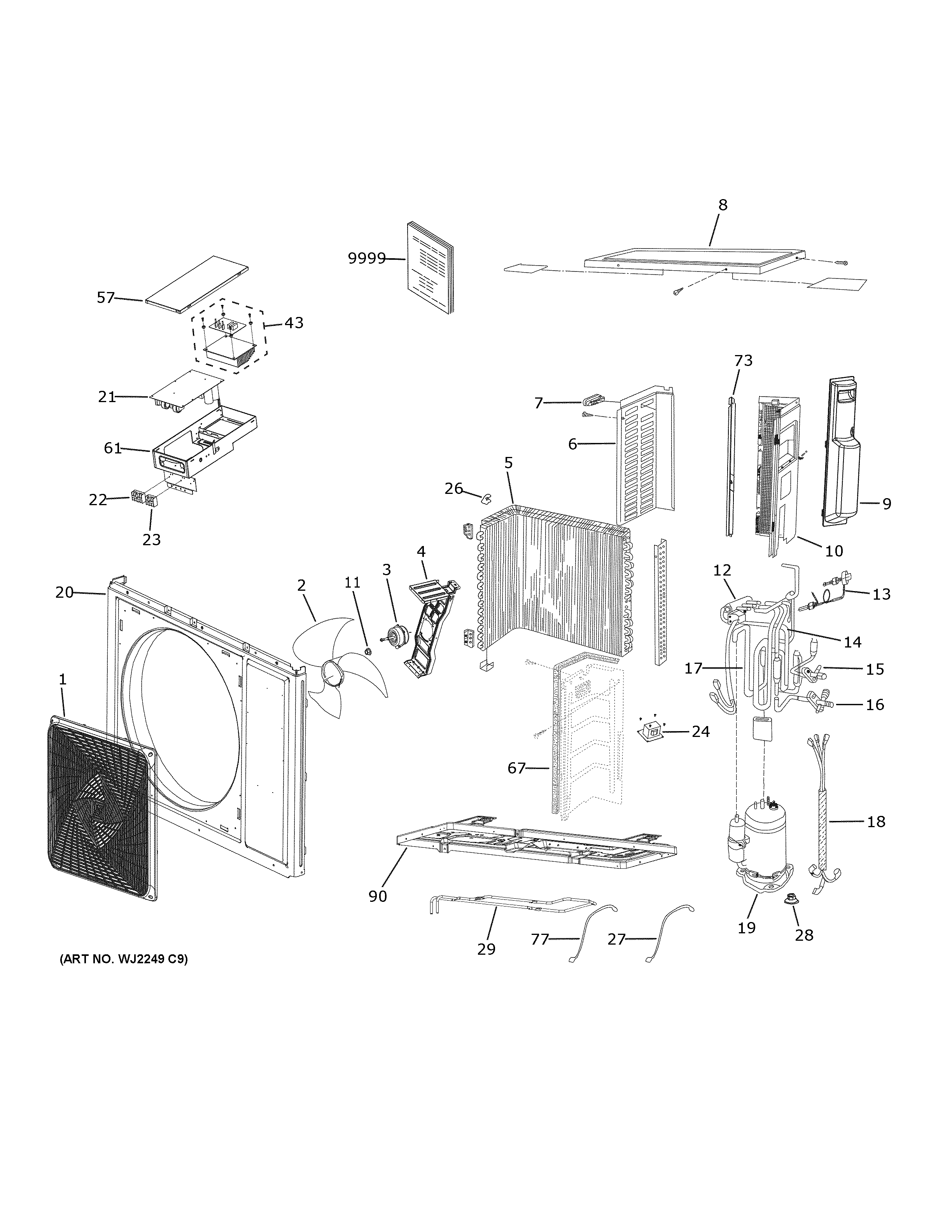

1U18AP2HDB1 ROOM AIR CONDITIONERadmin2025-04-26T08:34:25+00:001U18AP2HDB1 ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X23214 GE Grille2FAN BLADE3OUTDOOR FAN MOTOR4WJ65X23001 GE Bracket Outdoor Fan Motor5WJ88X22994 GE Condenser6WJ71X23215 GE Left Side Panel7WJ01X24664 GE Handle8TOP COVER9WJ76X23007 GE Valve Cover10RIGHT SIDE PANEL12WJ53X24701 GE Tube Assembly 4-Way Valve13WJ26X24668 GE Electronic Expansion Valve14WJ53X25637 GE Discharge Tube15WJ53X24973 GE Liquid Service Valve16WJ53X24975 GE Vapor Service Valve17WJ53X23008 GE Suction Tube18WJ35X25394 GE Outdoor Wire Harness19WJ98X22993 GE Compressor20WJ76X23212 GE Casing Assembly21WJ26X33175 GE Power Control Board22WJ27X23011 GE Indoor Terminal Block23WJ27X25393 GE Terminal Block Supply24WJ27X23006 GE Reactor26WJ01X23219 GE Sensor Clip27WJ26X23009 GE Suction Sensor28WJ01X22974 GE Flange Nut29WJ27X24665 GE Heater Basepan43INVERTER ASSEMBLY57CONTROL BOX COVER61ELECTRICAL BOX67WJ71X32956 GE Divider Panel73WJ65X32954 GE Support Bar77WJ35X33043 GE Electric Heater Harness90BOTTOM PLATE ASSY.9999PM INSTALL INSTRUCTIONS
