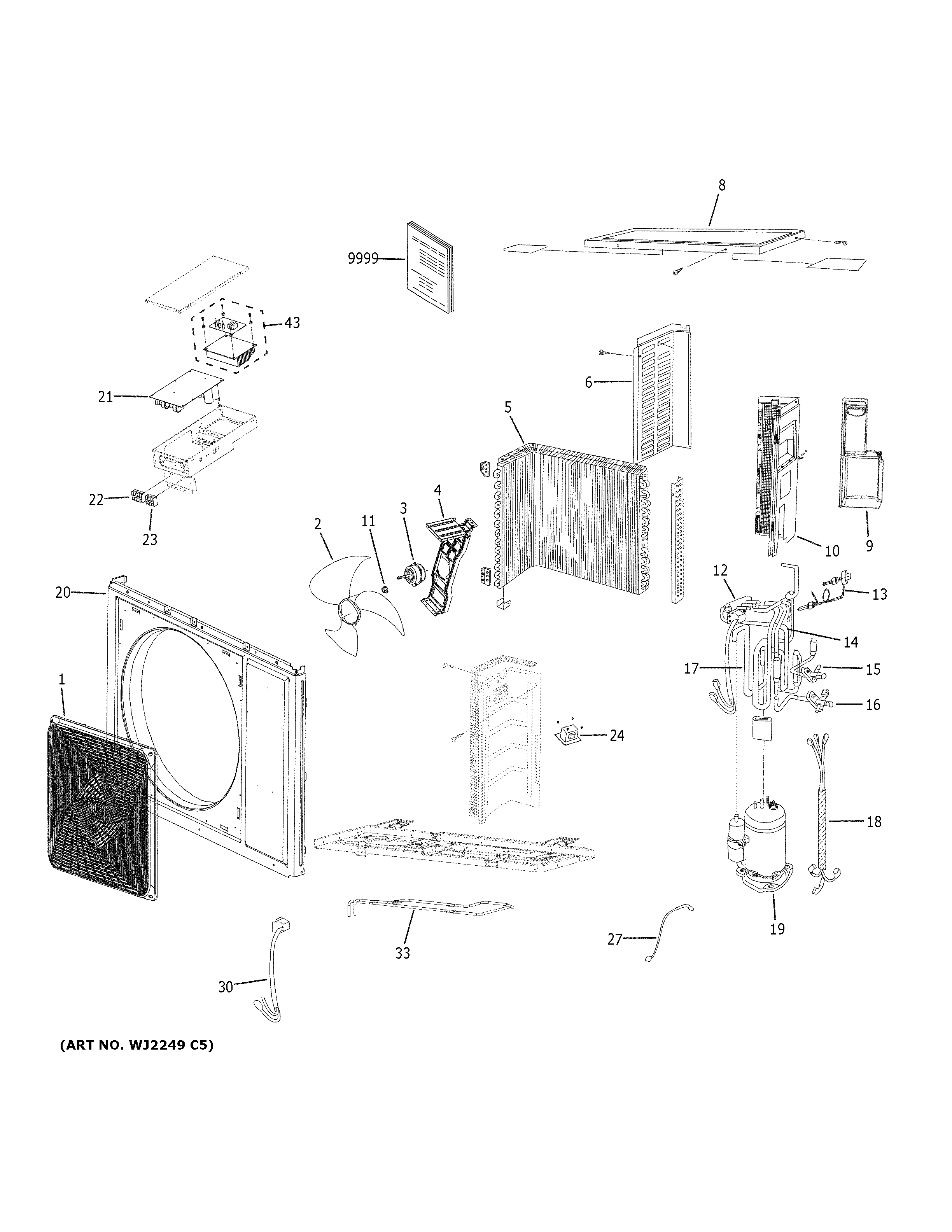

1U18EH2VHA ROOM AIR CONDITIONERadmin2025-04-26T08:34:25+00:001U18EH2VHA ROOM AIR CONDITIONER ProductsPositionProduct1GRILLE2FAN BLADE3OUTDOOR FAN MOTOR4WJ65X23015 GE Outdoor Fan Motor Bracket5WJ88X23016 GE Condenser6LEFT SIDE PANEL8TOP COVER9WJ76X23018 GE Valve Cover10RIGHT SIDE PANEL11WJ01X22974 GE Flange Nut12WJ53X22987 GE 4-Way Valve Assembly13WJ26X22984 GE Sensor Assembly Amb/Dis/Coil14WJ53X23019 GE Discharge Tube15WJ53X22991 GE Liquid Service Valve16WJ53X22992 GE Service Valve Vapor17WJ53X23020 GE Suction Tube18WJ35X25394 GE Outdoor Wire Harness19WJ98X23021 GE Compressor20GRILLE21POWER CONTROL BOARD22WJ27X23011 GE Indoor Terminal Block23TERMINAL BLOCK24WJ27X23006 GE Reactor27WJ26X23009 GE Suction Sensor30WJ53X23169 GE Electronic Expansion Valve33WJ27X23172 GE Heater Pan43INVERTER ASSEMBLY9999PM Installation Manual
