1U18ES2VHA ROOM AIR CONDITIONER

1U18ES2VHA ROOM AIR CONDITIONER

Written by

in

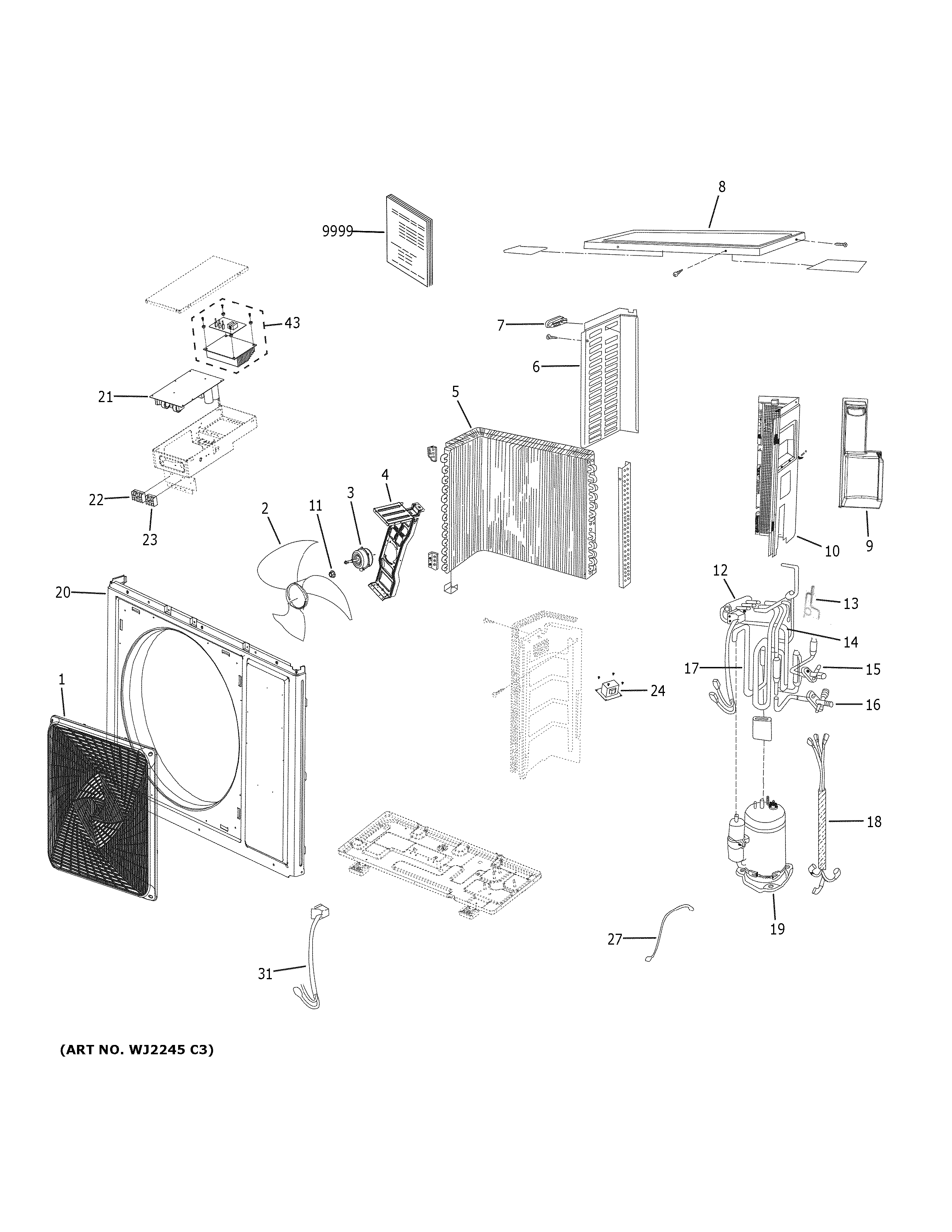

1U18ES2VHA ROOM AIR CONDITIONER

Products

PositionProduct
1WJ71X23214 GE Grille
2FAN BLADE
3OUTDOOR FAN MOTOR
4WJ65X23001 GE Bracket Outdoor Fan Motor
5WJ88X22994 GE Condenser
6WJ71X23215 GE Left Side Panel
7WJ01X24664 GE Handle
8TOP COVER
9WJ76X23007 GE Valve Cover
10RIGHT SIDE PANEL
11WJ01X22974 GE Flange Nut
12WJ53X22987 GE 4-Way Valve Assembly
13WJ53X22996 GE Electronic Expansion Valve
14DISCHARGE TUBE
15WJ53X22991 GE Liquid Service Valve
16WJ53X22992 GE Service Valve Vapor
17WJ53X23008 GE Suction Tube
18WJ35X25394 GE Outdoor Wire Harness
19WJ98X22993 GE Compressor
20GRILLE
21WJ26X23004 GE Power Control Board
22WJ27X23011 GE Indoor Terminal Block
23TERMINAL BLOCK
24WJ27X23006 GE Reactor
27WJ26X23009 GE Suction Sensor
31WJ35X22997 GE Coil Electronic Expansion Valve
43INVERTER ASSEMBLY
9999PM Installation Manual
