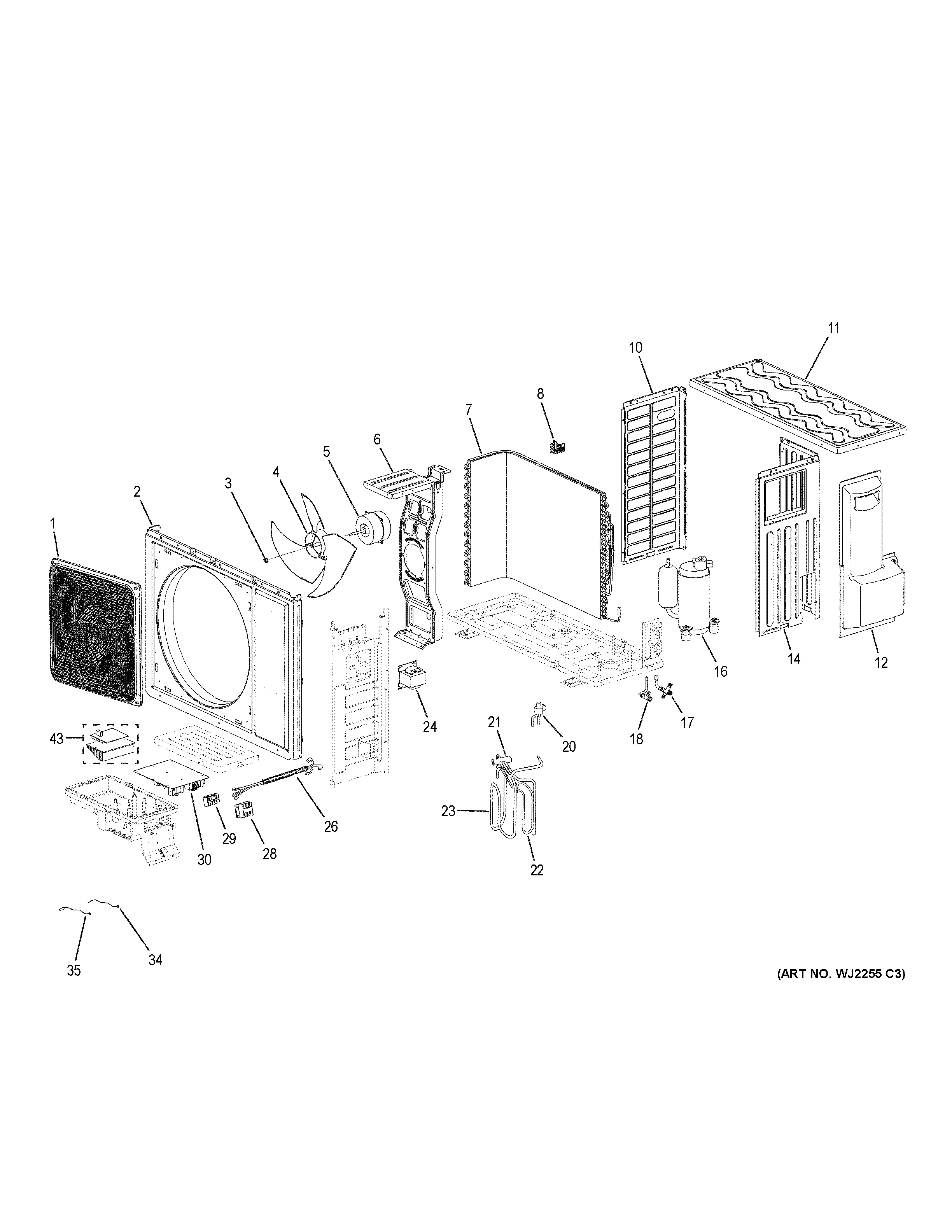

1U18TE2VHA ROOM AIR CONDITIONER

Products

PositionProduct
1WJ71X23214 GE Grille
2WJ76X23212 GE Casing Assembly
3WJ01X22974 GE Flange Nut
4FAN BLADE
5OUTDOOR FAN MOTOR
6WJ65X23001 GE Bracket Outdoor Fan Motor
7WJ88X22994 GE Condenser
8WJ01X23219 GE Sensor Clip
10WJ71X23215 GE Left Side Panel
11TOP COVER
12WJ76X23007 GE Valve Cover
14RIGHT SIDE PANEL
16WJ98X22993 GE Compressor
17WJ53X22992 GE Service Valve Vapor
18WJ53X22991 GE Liquid Service Valve
20WJ53X23213 GE Air Conditioner Electronic Expansion Valve
21WJ53X22987 GE 4-Way Valve Assembly
22DISCHARGE TUBE
23WJ53X23008 GE Suction Tube
24WJ27X23006 GE Reactor
26WJ35X25394 GE Outdoor Wire Harness
28WJ27X23011 GE Indoor Terminal Block
29TERMINAL BLOCK
30OUTDOOR POWER CONTROL BOARD
34WJ26X23009 GE Suction Sensor
35WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
43WJ26X24106 GE Inverter Assembly
