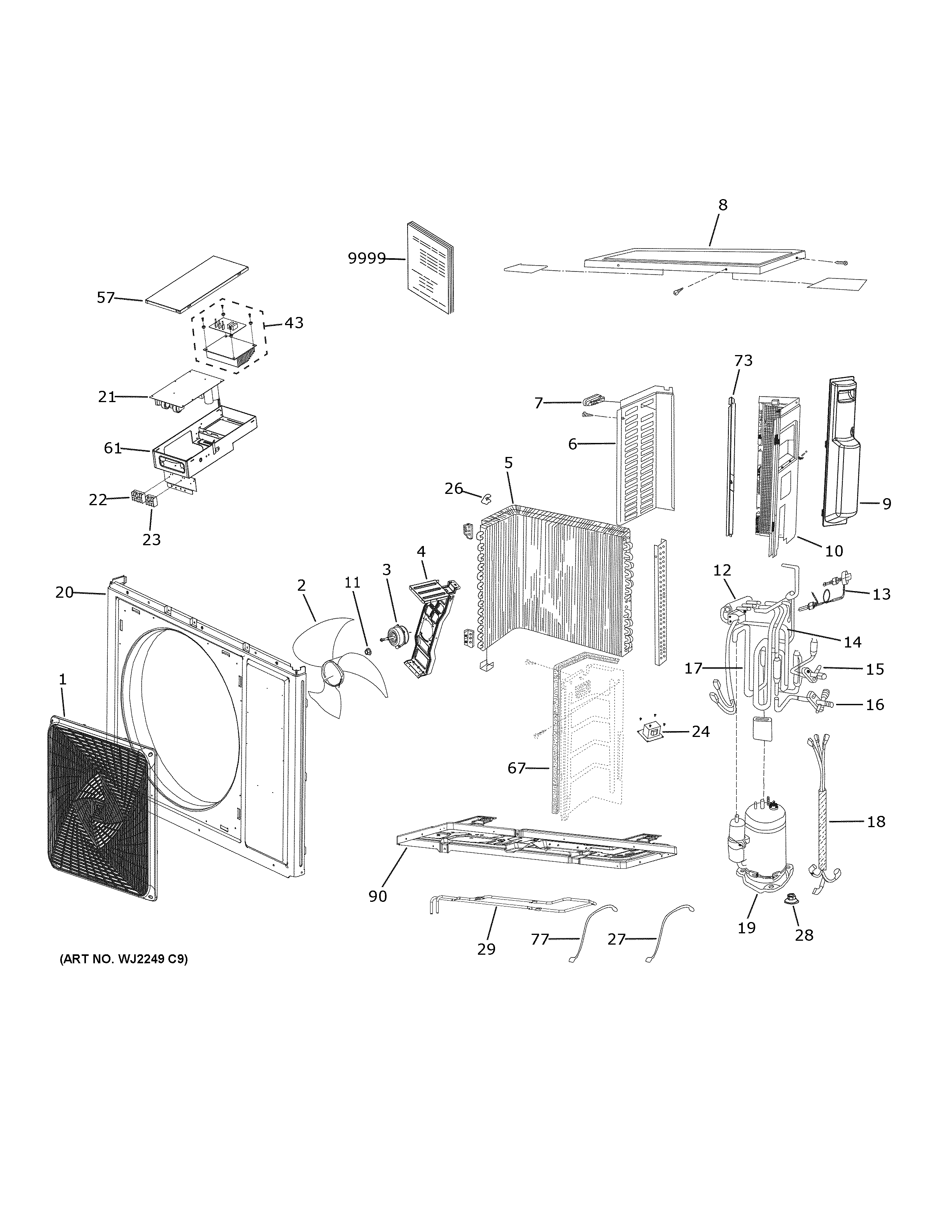

1U24AP2HDB1 ROOM AIR CONDITIONER

Products

Position	Product
1	GRILLE
2	FAN BLADE
3	OUTDOOR FAN MOTOR
4	WJ65X23015 GE Outdoor Fan Motor Bracket
5	WJ88X23016 GE Condenser
6	LEFT SIDE PANEL
7	WJ01X24664 GE Handle
8	TOP COVER
9	WJ76X23018 GE Valve Cover
10	RIGHT SIDE PANEL
12	4-WAY VALVE TUBE ASSEMBLY
13	WJ26X25395 GE Electronic Expansion Valve
14	WJ53X25636 GE Discharge Tube
15	WJ53X24973 GE Liquid Service Valve
16	WJ53X24975 GE Vapor Service Valve
17	WJ53X23020 GE Suction Tube
18	WJ35X25394 GE Outdoor Wire Harness
19	WJ98X23021 GE Compressor
20	WJ76X23221 GE Casing
21	WJ26X33177 GE Power Control Board
22	WJ27X23011 GE Indoor Terminal Block
23	WJ27X25393 GE Terminal Block Supply
24	WJ27X23006 GE Reactor
26	WJ01X23219 GE Sensor Clip
27	WJ26X23009 GE Suction Sensor
28	WJ01X22974 GE Flange Nut
29	WJ27X23172 GE Heater Pan
43	INVERTER ASSEMBLY
57	CONTROL BOX COVER
61	ELECTRICAL BOX
67	WJ71X32635 GE Partition Panel Plate
73	WJ65X33048 GE Crossbeam Assembly
77	WJ35X33043 GE Electric Heater Harness
90	BOTTOM PLATE ASSY.
9999	PM INSTALL INSTRUCTIONS
