1U24AP2VHA ROOM AIR CONDITIONER

Products

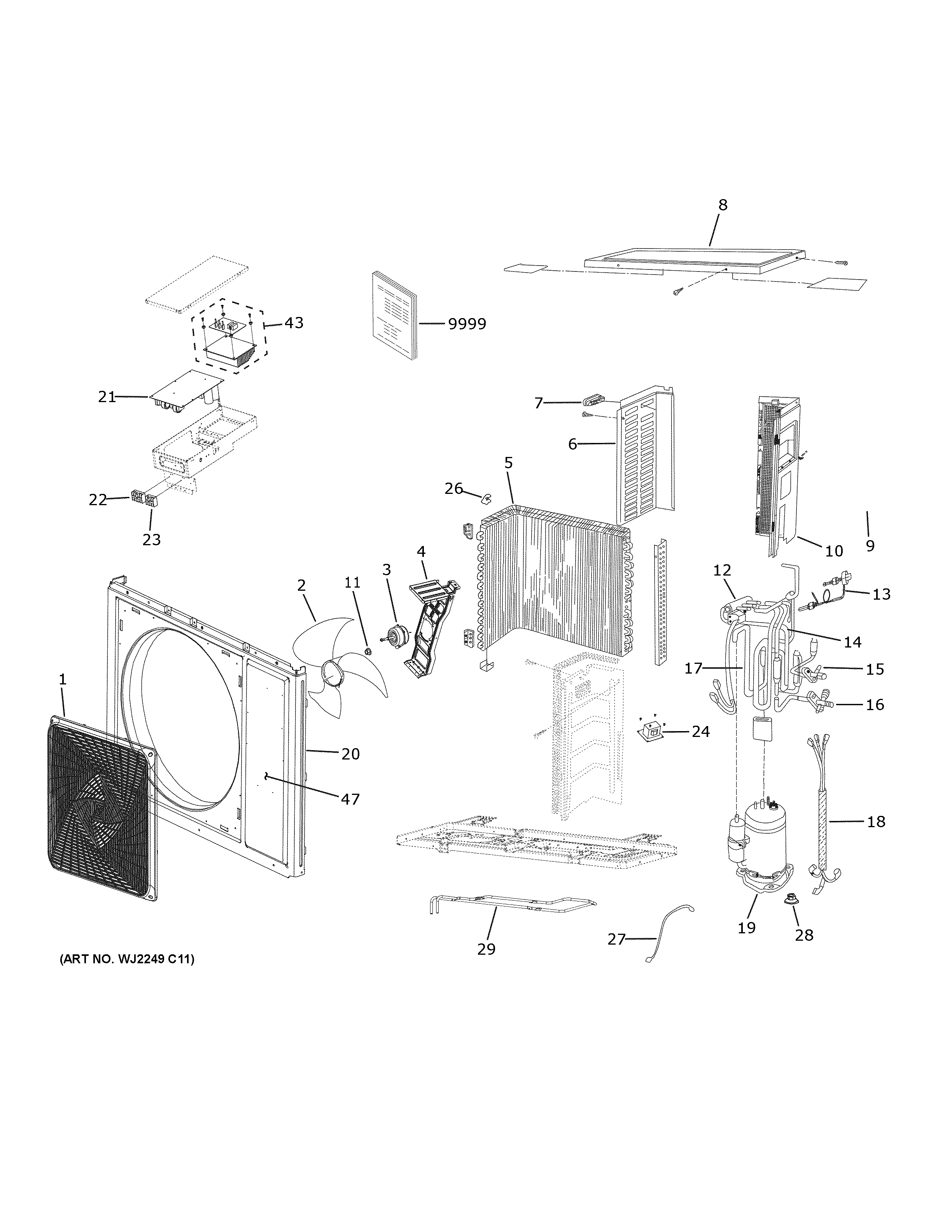

PositionProduct
1GRILLE
2FAN BLADE
3OUTDOOR FAN MOTOR
4WJ65X23015 GE Outdoor Fan Motor Bracket
5WJ88X23016 GE Condenser
6LEFT SIDE PANEL
7WJ01X24664 GE Handle
8TOP COVER
9WJ76X23018 GE Valve Cover
10RIGHT SIDE PANEL
11FLANGE NUT
124-WAY VALVE TUBE ASSEMBLY
13WJ26X25395 GE Electronic Expansion Valve
14WJ53X23019 GE Discharge Tube
15WJ53X24973 GE Liquid Service Valve
16WJ53X24975 GE Vapor Service Valve
17WJ53X23020 GE Suction Tube
18WJ35X25394 GE Outdoor Wire Harness
19WJ98X23021 GE Compressor
20WJ76X23221 GE Casing
21WJ26X24714 GE Power Control Board
22WJ27X23011 GE Indoor Terminal Block
23WJ27X25393 GE Terminal Block Supply
24WJ27X23006 GE Reactor
26WJ01X23219 GE Sensor Clip
27WJ26X23009 GE Suction Sensor
28WJ01X22974 GE Flange Nut
29WJ27X23172 GE Heater Pan
43INVERTER ASSEMBLY
47WJ76X24672 GE Casing Assembly
9999PM OTHER
9999PM INSTALLATION INSTRUCTION
