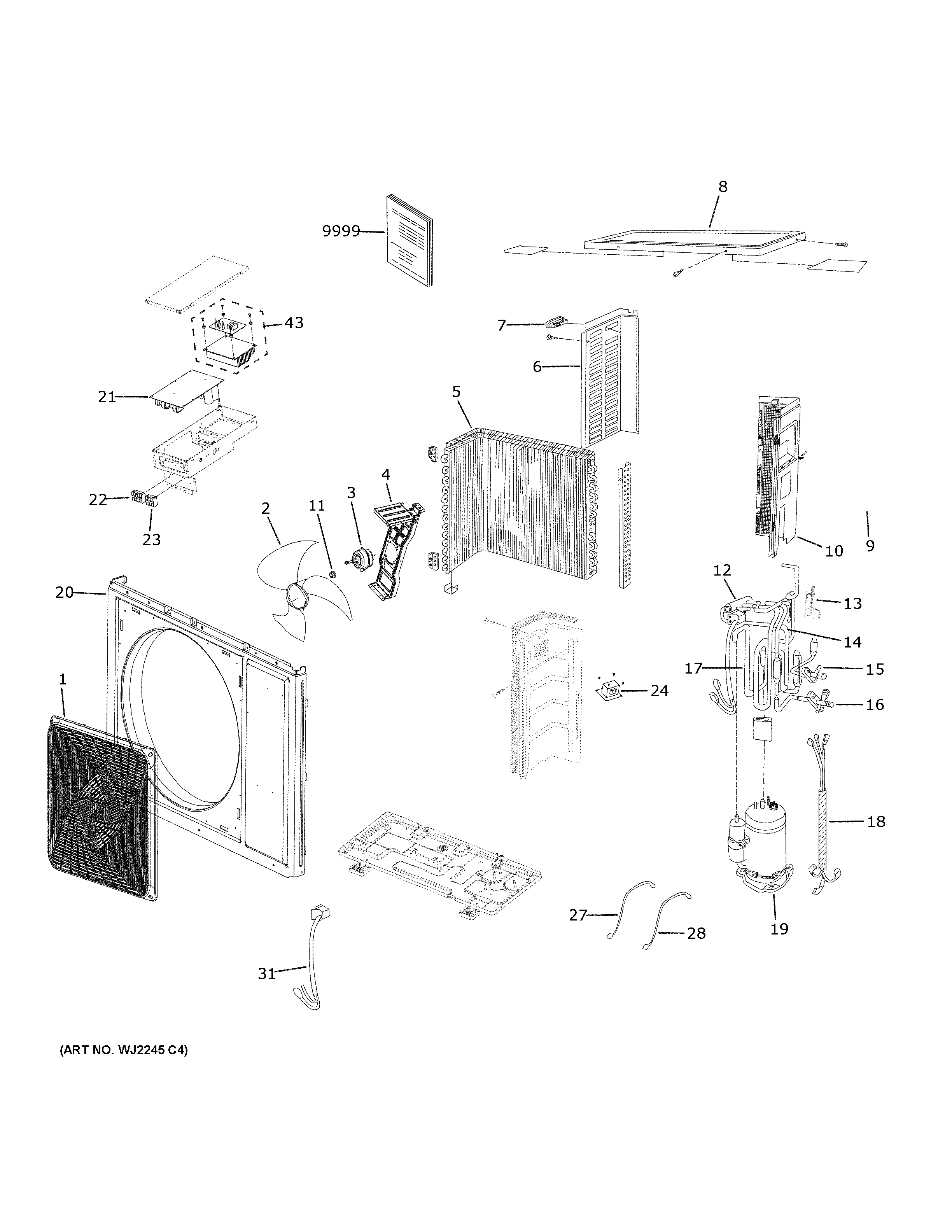

1U24ES2VHA ROOM AIR CONDITIONER

Products

PositionProduct
1GRILLE
2FAN BLADE
3OUTDOOR FAN MOTOR
4WJ65X23015 GE Outdoor Fan Motor Bracket
5WJ88X23016 GE Condenser
6LEFT SIDE PANEL
7WJ01X24664 GE Handle
8TOP COVER
9WJ76X23018 GE Valve Cover
10RIGHT SIDE PANEL
11WJ01X22974 GE Flange Nut
12WJ53X22987 GE 4-Way Valve Assembly
13WJ53X22996 GE Electronic Expansion Valve
14WJ53X23019 GE Discharge Tube
15WJ53X22991 GE Liquid Service Valve
16WJ53X22992 GE Service Valve Vapor
17WJ53X23020 GE Suction Tube
18WJ35X25394 GE Outdoor Wire Harness
19WJ98X23021 GE Compressor
20GRILLE
21POWER CONTROL BOARD
22WJ27X23011 GE Indoor Terminal Block
23TERMINAL BLOCK
24WJ27X23006 GE Reactor
27WJ26X23009 GE Suction Sensor
28WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
31WJ35X23024 GE Coi Electronic Expansion Valve
43INVERTER ASSEMBLY
9999PM Installation Manual
