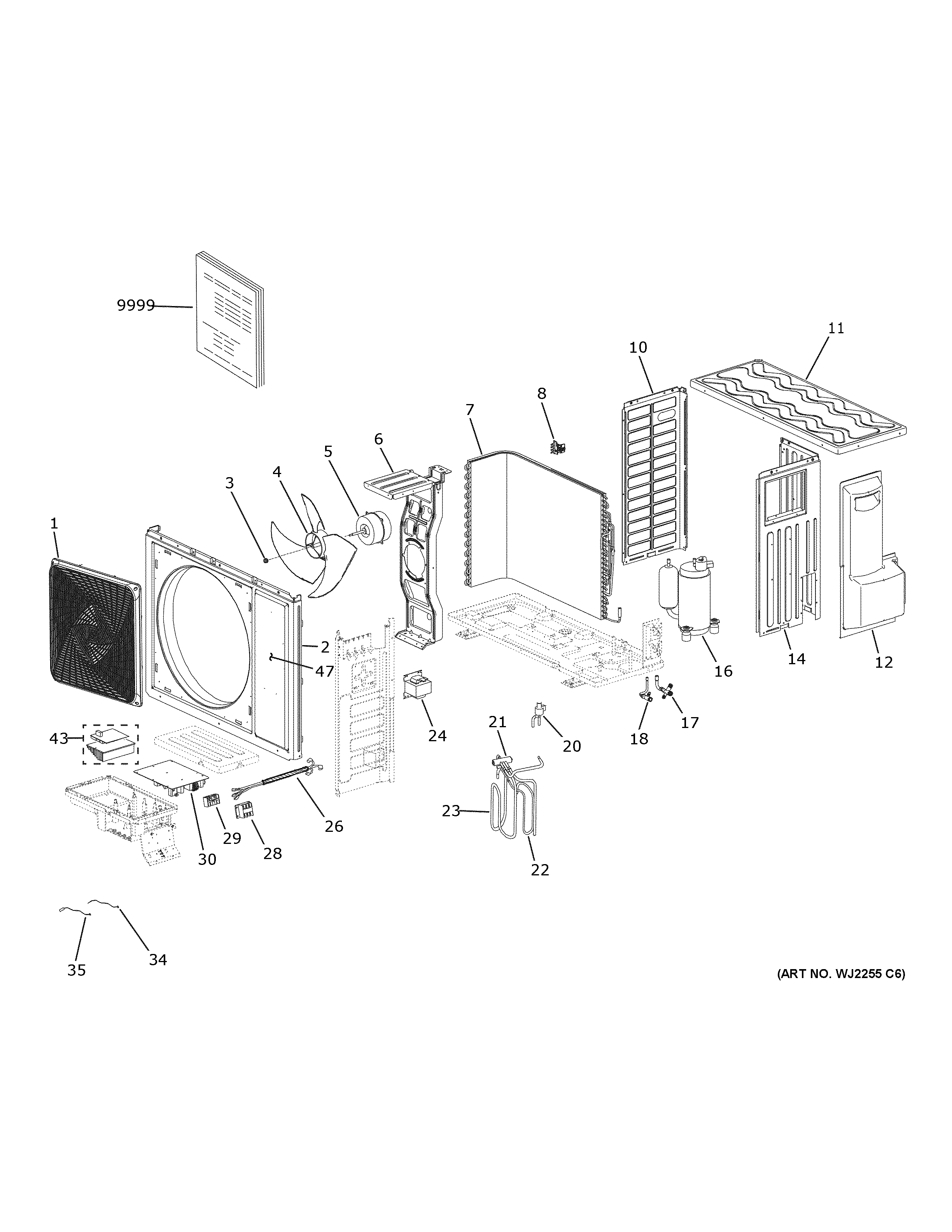

1U24TE2VHA ROOM AIR CONDITIONERadmin2025-04-26T08:34:32+00:001U24TE2VHA ROOM AIR CONDITIONER ProductsPositionProduct1GRILLE2WJ76X23221 GE Casing3WJ01X22974 GE Flange Nut4FAN BLADE5OUTDOOR FAN MOTOR6WJ65X23226 GE Fan Motor Bracket Outdoor7WJ88X23223 GE Condenser8WJ01X23219 GE Sensor Clip10LEFT SIDE PANEL11TOP COVER12WJ76X23018 GE Valve Cover14RIGHT SIDE PANEL16COMPRESSOR17WJ53X22992 GE Service Valve Vapor18WJ53X22991 GE Liquid Service Valve20WJ53X23213 GE Air Conditioner Electronic Expansion Valve21WJ53X22987 GE 4-Way Valve Assembly22WJ53X23224 GE Discharge Tube23WJ53X23230 GE Suction Tube24WJ27X23006 GE Reactor26WJ35X25394 GE Outdoor Wire Harness28WJ27X23011 GE Indoor Terminal Block29TERMINAL BLOCK30WJ26X23228 GE Outdoor Power Control Board34WJ26X23009 GE Suction Sensor35WJ26X22984 GE Sensor Assembly Amb/Dis/Coil43WJ26X24107 GE Inverter Assembly47WJ76X24672 GE Casing Assembly9999PM OTHER9999PM INSTALLATION INSTRUCTION
