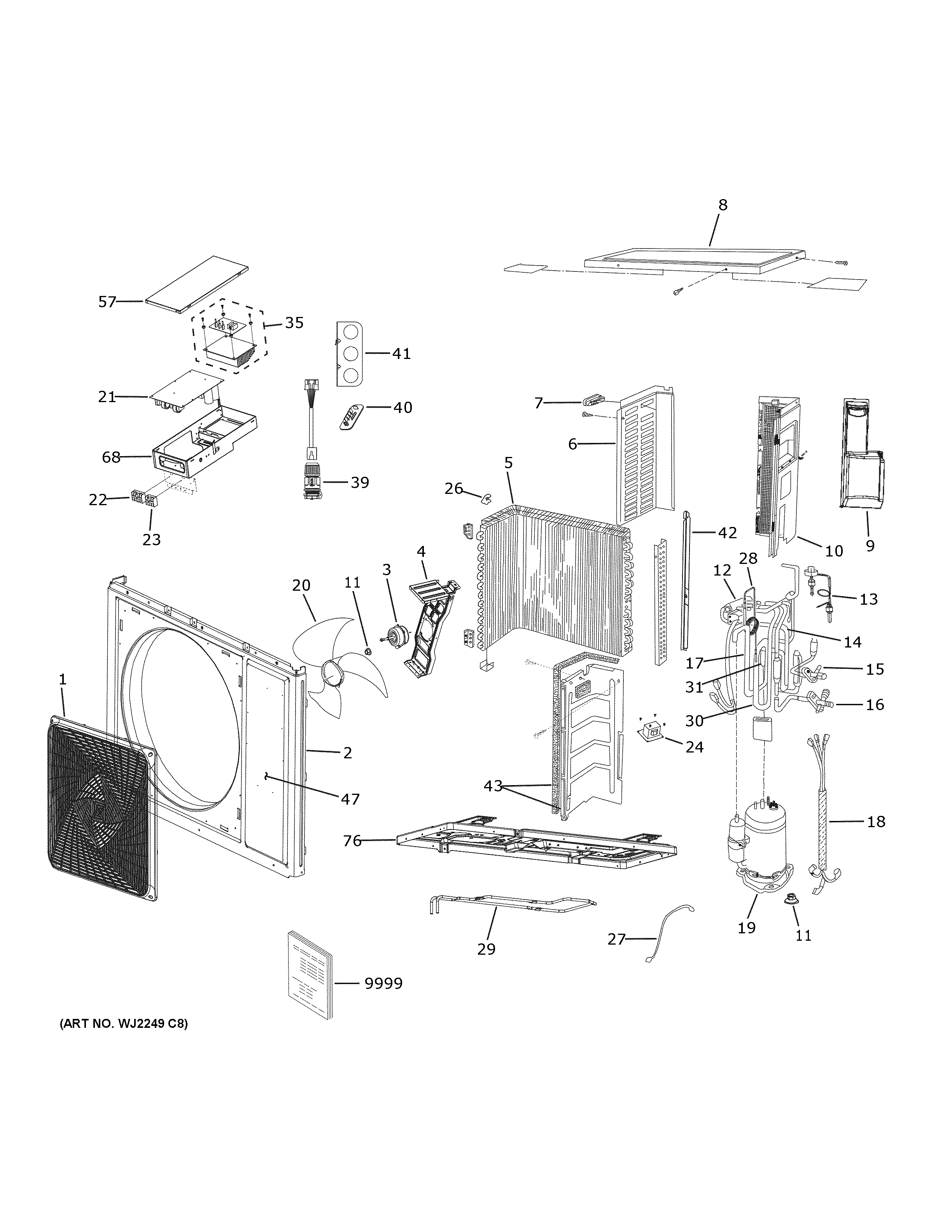

1U24TL2HFA1 ROOM AIR CONDITIONERadmin2025-04-26T08:34:23+00:001U24TL2HFA1 ROOM AIR CONDITIONER ProductsPositionProduct1GRILLE2WJ76X23221 GE Casing3OUTDOOR FAN MOTOR4WJ65X23015 GE Outdoor Fan Motor Bracket5WJ88X26444 GE Condenser6LEFT SIDE PANEL7WJ01X24664 GE Handle8TOP COVER9WJ76X23018 GE Valve Cover10RIGHT SIDE PANEL11WJ01X22974 GE Flange Nut12WJ53X30854 GE 4-Way Valve Tube Assembly13EEV VALVE14WJ53X29532 GE Discharge Tube15WJ53X24974 GE Vapor Service Valve16VAPOR SERVICE VALVE17WJ53X29533 GE Suction Tube18WJ35X29527 GE Outdoor Harness Wire19WJ98X26204 GE Compressor20FAN BLADE21POWER CONTROL BOARD22WJ27X23011 GE Indoor Terminal Block23WJ26X23520 GE Terminal Block24WJ27X29538 GE Reactor Assembly26WJ01X23219 GE Sensor Clip27WJ26X23009 GE Suction Sensor28WJ53X29531 GE Tube Cap29COMPRESSOR HEATER30WJ53X29530 GE Suction Tube31GAS-LIQUID SEPARATOR35INVERTER39RJ4540WJ76X27114 GE Cover41WJ65X27113 GE Bracket Strain Relief42CROSS BEAM43WJ71X32635 GE Partition Panel Plate47WJ76X24672 GE Casing Assembly57CONTROL BOX COVER68ELECTRICAL BOX76BOTTOM PLATE ASSY.9999PM INSTALLATION INSTRUCTION
