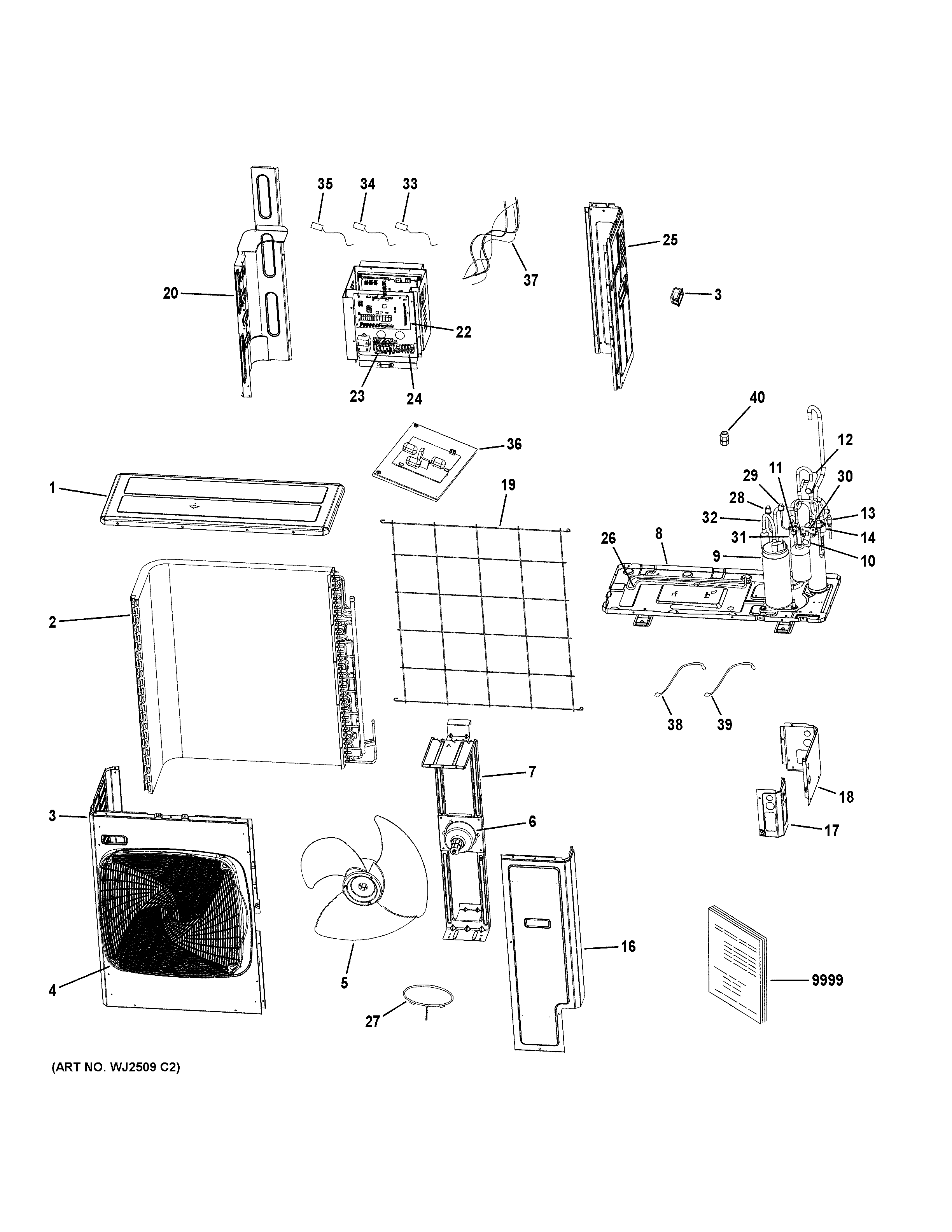

1U3036LP2HDA1 ROOM AIR CONDITIONERadmin2025-04-26T08:34:25+00:001U3036LP2HDA1 ROOM AIR CONDITIONER ProductsPositionProduct1TOP COVER ASSY.2WJ88X31264 GE Condenser Assembly3WJ65X25041 GE Handle4WJ71X32419 GE Front Panel Assembly5FAN BLADE6WJ94X31189 GE DC Fan Motor7WJ65X31170 GE Motor Bracket8WJ76X31262 GE Bottom Base Pan9COMPRESSOR10WJ58X32300 GE Liquid Service Valve11WJ53X31256 GE Liquid Service Valve 3/4"12WJ53X31157 GE 4-Way Valve13FILTER14WJ53X22639 GE Electronic Expansion Valve16WJ76X24384 GE Access Panel17WJ76X24385 GE Front Passthrough Panel18WJ76X24512 GE Rear Passthrough Panel19WJ71X26197 GE Rear Grille20WJ71X31315 GE Left Side Panel22PCB23TERMINAL BLOCK24WJ26X25073 GE Terminal Block Supply25WJ71X32316 GE Right Side Panel26WJ70X32311 GE Heater Base Pan27CRANK CASE HEATER28WJ26X23722 GE Low Pressure Switch29WJ27X22646 GE High Pressure Switch30WJ65X31313 GE Valve Bracket31WJ56X32306 GE Discharging Pipe32WJ56X32305 GE Suction Pipe33DISCHARGE TEMP. SENSOR34SUCTION SENSOR35AMBIENT TEMP. SENSOR36WJ26X31774 GE Inverter Board37WJ35X31775 GE Wiring Harness38WJ26X22636 GE Defrost/Toci Sensor39WJ26X22533 GE Liquid Pipe Temperature Sensor40ADAPTER - 3/4" TO 5/89999PM INSTALL INSTRUCTIONS
