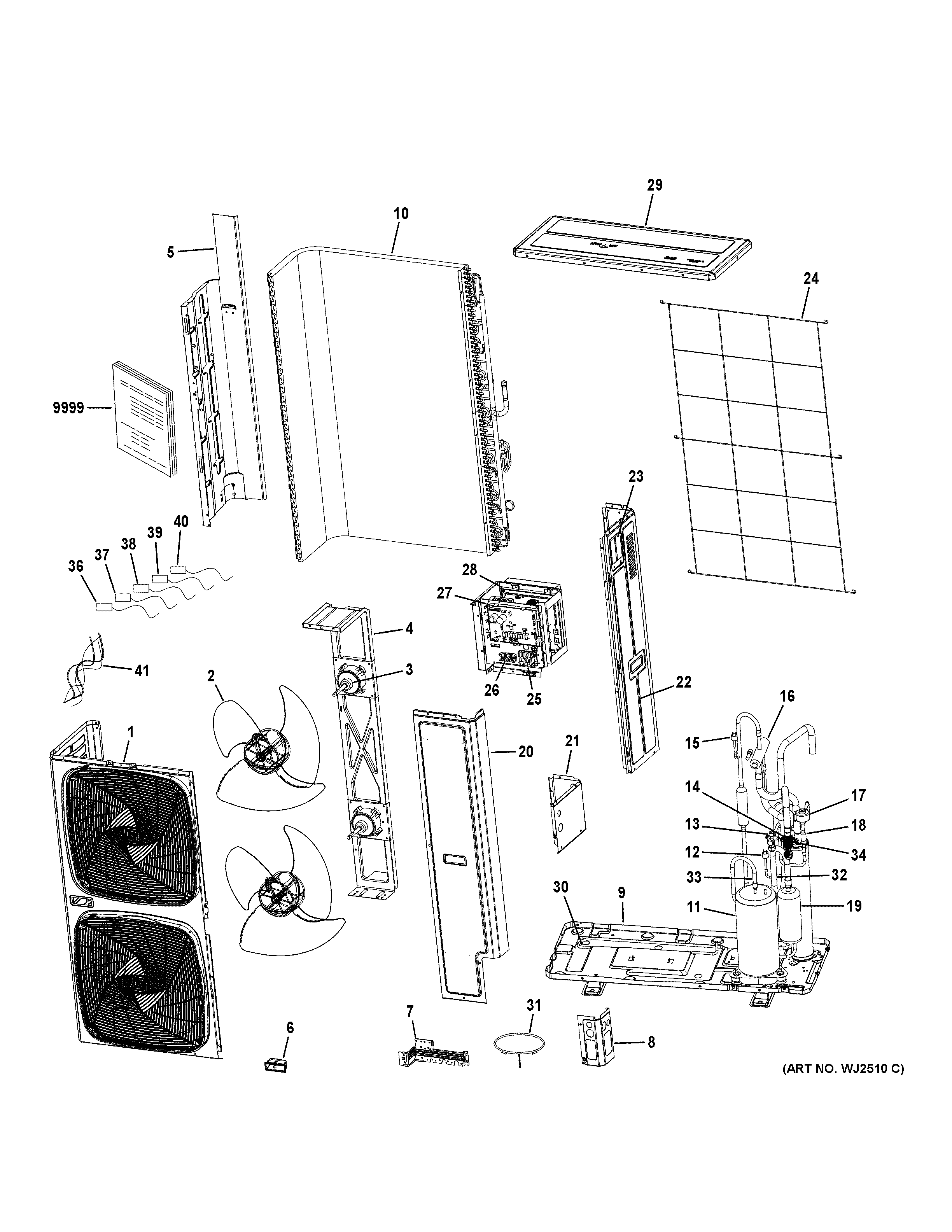

1U4248LP2HDA1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X32421 GE Front Panel Assembly
2	FAN BLADE
3	WJ94X31189 GE DC Fan Motor
4	WJ65X31171 GE Fan Motor Bracket
5	WJ71X31172 GE Left Side Panel
6	WJ65X25041 GE Handle
7	WJ65X31313 GE Valve Bracket
8	WJ71X32473 GE Front Passthrough Panel
9	WJ76X32315 GE Base Pan Bottom
10	WJ88X31173 GE Condenser Assembly
11	WJ98X31160 GE Compressor
12	WJ26X23722 GE Low Pressure Switch
13	WJ58X32300 GE Liquid Service Valve
14	VAPOR SERVICE VALVE
15	WJ27X22646 GE High Pressure Switch
16	WJ53X22661 GE Reversing Valve Body
17	WJ53X22639 GE Electronic Expansion Valve
18	STRAINER
19	WJ53X31159 GE Gas Liquid Separator
20	ACCESS PANEL
21	WJ71X32614 GE Rear Passthrough Panel
22	RIGHT SIDE PANEL
23	WJ76X32297 GE Diagnostic Board Cover
24	CONDSENDING COIL GUARD
25	TERMINAL BLOCK
26	WJ26X25073 GE Terminal Block Supply
27	PCB
28	WJ26X31254 GE Inverter Board
29	TOP COVER ASSY.
30	WJ70X32311 GE Heater Base Pan
31	WJ27X22685 GE Sump Heater
32	WJ56X32304 GE Suction Pipe
33	DISCHARGING PIPE
34	VALVE SEAT GROUP
36	DISCHARGE TEMP. SENSOR
37	SUCTION SENSOR
38	AMBIENT TEMP. SENSOR
39	EVAPORATOR SENSOR
40	WJ26X32298 GE Defrost Temperature Sensor
41	WJ35X31776 GE Wiring Harness
9999	PM INSTALL INSTRUCTIONS
