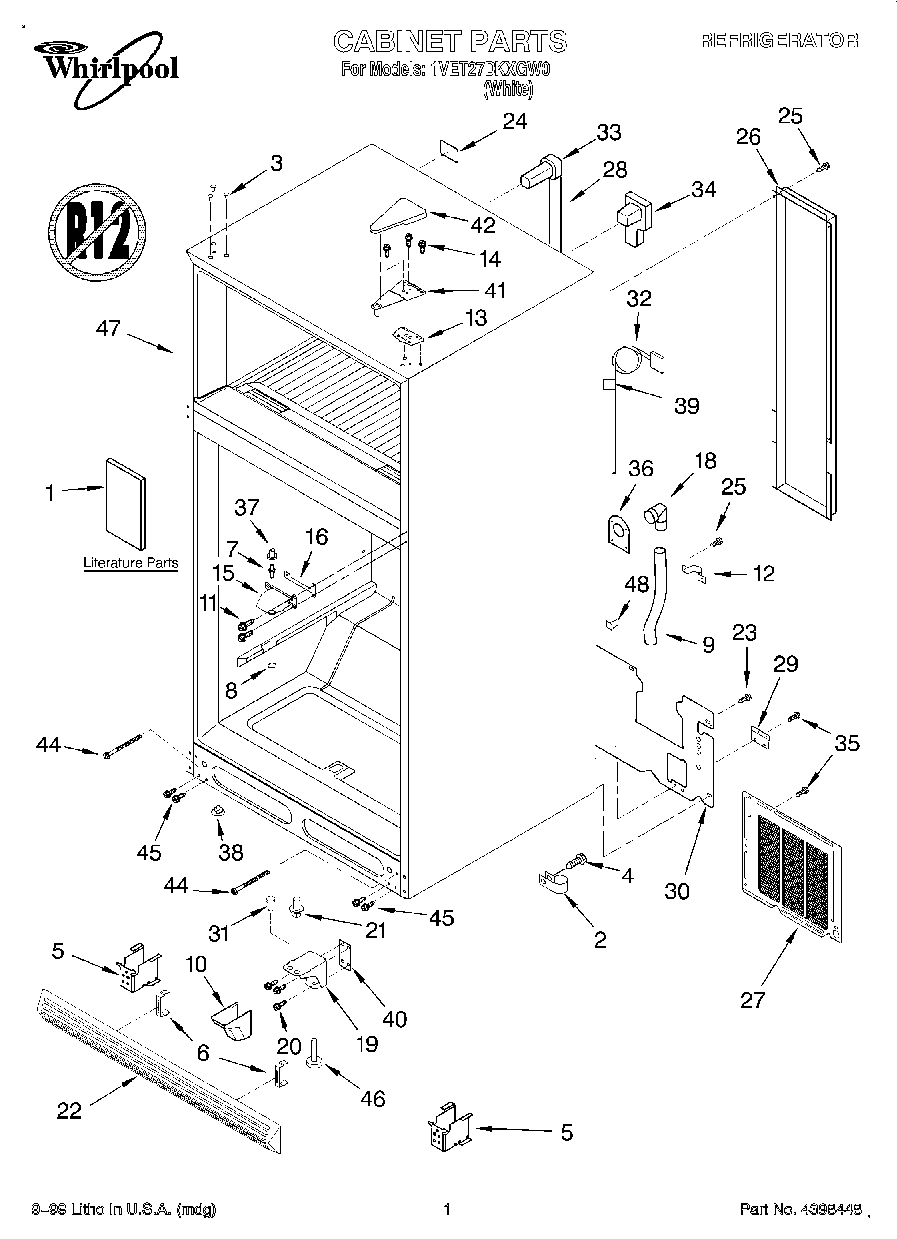

1VET27DKXGW0 01 – CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Tech Sheet)
1	Literature Parts (Owner`s Manual)
2	WP2189000 Whirlpool Refrigerator Handle Plug
3	Plug, Button (3)
4	WP489069 Whirlpool Compactor Screw
5	WPL 4344291
6	WPL 4344155
7	WPL 4344428
8	Shim ()
8	WPM0274057 Whirlpool Refrigerator Shim
9	WPL 4344504
10	WPL 4344204
11	WP67006380 Whirlpool Screw
12	WPL 4344509
13	WPL 4344194
14	WP489349 Whirlpool Refrigerator Screw
15	WPL 4344431
16	WPL 4344427
18	WPL 4344506
19	WPL 4344285
20	WP67006715 Whirlpool Refrigerator Screw
21	67007018 Whirlpool Refrigerator Bottom Hinge PIN
22	Grille
23	WPL 4344267
24	WPL 4344264
26	Power Cord
27	Back Cover
28	Harness, Control
29	W10833899 Whirlpool Refrigerator Water Inlet Valve Kit
30	Cover, Unit
31	WPL 4344210
32	Power Cord
33	WPL 4344259
34	WPL 4344260
35	WPL 4343759
36	WPL 4344507
37	WPL 4344430
38	Plug, Button
39	WPM0104106 Whirlpool Refrigerator Clip
40	Shim, Hinge
40	WPL 4344515
41	WPL 4344172
42	Hinge Cover
44	Screw
45	W11573574 Whirlpool Screw
46	W11177593 Whirlpool Leveling Feet
47	Cabinet (Not A Serviceable Part)
48	Clip
