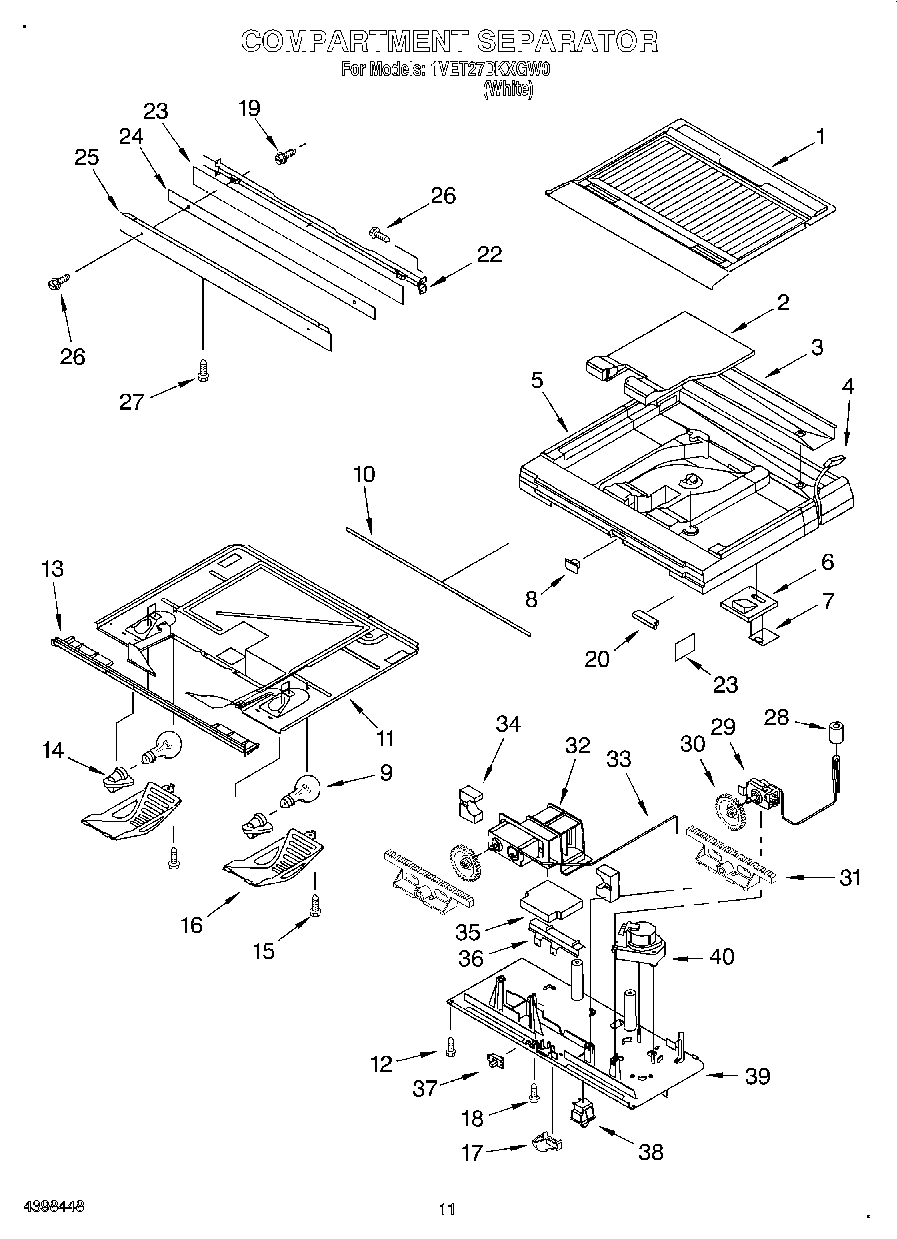

1VET27DKXGW0 07 – COMPARTMENT SEPARATOR, OPTIONAL

1VET27DKXGW0 07 – COMPARTMENT SEPARATOR, OPTIONAL

Written by

in

1VET27DKXGW0 07 – COMPARTMENT SEPARATOR, OPTIONAL

Products

Position	Product
1	Separator, Comp.
2	WPL 4344460
3	Tray, Drip
4	Harness, Drn Blk
5	Insulation
6	Insert, Air Sply
7	Gasket, Air Sply
8	Cap, Switch
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	Membrane, Breaker
11	Bottom, Comp. Separator
12	Screw
13	WPL 4344471
14	Socket (2)
15	WPL 4343861
16	Shield, Light (2)
17	Knob (2)
18	WPL 4344167
19	WPL 4343860
20	Insulation
22	Plate, Tap
23	Insulation
24	Heater, Mullion
25	Mullion
26	WP489349 Whirlpool Refrigerator Screw
27	Screw
28	Insulation
29	Thermostat (Includes Items 30 & 33)
30	Pinion, Control
31	Rack, Control
32	Control, Damper (Includes Items 30, 33, 34 & 35)
33	Tube, Plastic
34	Insert, Damper
35	Insulation
36	Shield, Wire
37	Switch
38	W11384469 Whirlpool Door Switch
39	Housing
40	212643 Whirlpool Refrigerator Permagum Sealer
40	511873 Whirlpool Refrigerator Paint
40	Almond (Uncut)
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	350942 Whirlpool Spray Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350956 Whirlpool Spray Assembly
40	350930 Whirlpool White Spray Paint
40	606755 Whirlpool Refrigerator Bag
40	833938 Whirlpool Refrigerator Terminal
40	R0168027 Whirlpool Refrigerator Defrost Timer
40	4396418 Whirlpool Ice Maker
40	285006 Whirlpool Spray
40	WPL 876029
40	WPL 799833
40	Enamel, Black (1 Qt. Uncut)
40	CEMENT, ALUMILASTIC (1 1/4 OZ.)
40	72032 Whirlpool Touch Up Paint Black
40	TAPE, VINYL (3/4 X 108“)
40	Torx Key
40	WP542638 Whirlpool Refrigerator Grease
40	WP505587 Whirlpool Refrigerator Sealer
40	WP503695 Whirlpool Refrigerator Sealer
40	876370 Whirlpool Refrigerator Insulation
40	Ice Container Assembly
