2017 01 – CLEANINGTOOLS – Aparts

2017 01 – CLEANINGTOOLS

Products

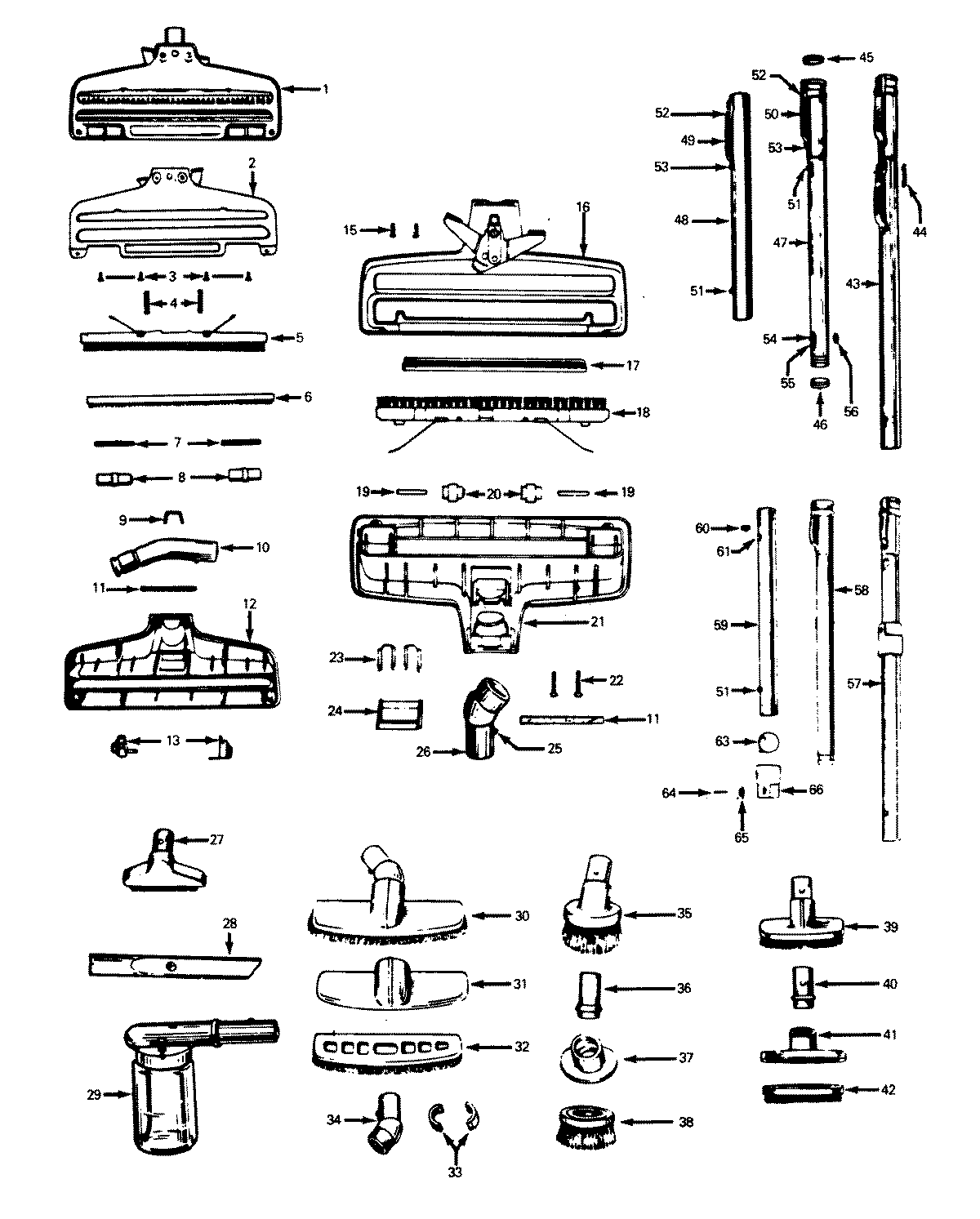

Position	Product
1	WHEELED R & F NOZ-AA
2	BOTTOM PLATE-EDGE CL
3	SCREW
4	SPRING-S3013
5	BRUSH BACK
5	BRUSH BACK ASSEMBLY
6	LITTER PICKER
7	SHAFT-2100
8	ROLLER
9	RETAINER
10	NOZZLE CONNECTOR TUBE
10	NOZZLE CONNECTOR TUBE
10	NOZZLE CONNECTOR TUB
11	GASKET
12	RUG & FLOOR NOZZLE -
12	NOZZLE-EDGE CLEANING
13	RIB SHOE
15	SCREW
16	BOTTOM PLATE ASSY-29
17	LITTER PICKER-2940
18	BRUSH BACK ASSEMBLY
19	PIN
20	ROLLER
21	RUG & FLOOR NOZZLE
22	SCREW
23	SHOE 2940
24	TUBE RETAINER - 2940
25	RIVET
26	CONECTOR TUBE
27	FURNITURE NOZZLE-AG-
28	CREVICE TOOL-AG -S32
29	SPRAYER COMP 82
30	FLOOR BRUSH
30	FLOOR BRUSH-AG-S3273
32	FLOOR BRUSH FACE
33	FLOOR BRUSH SWIVEL B
33	SPLIT RING
34	FLOOR BRUSH SWIVEL& COLLAR
34	SWIVEL CONNECTOR - A
35	DUSTING BRUSH-AG
35	DUSTING BRUSH
37	NOZZLE-843
38	DUSTING BRUSH FACE
39	FURNITURE BRUSH-AG
40	NOZZLE CONNECTOR TUB
41	FURNITURE BRUSH-S305
42	BRUSH BACK
43	EXTENSION TUBE ASSEM
44	TUBE GUIDE
45	GASKET
46	GASKET
47	EXTERNION TUBE INNER
48	EXTENSION TUBE OUTER
49	TUBE LATCH - AAT
50	TUBE LATCH
51	RIVET
52	RIVET
53	RIVET
54	RIVET
55	PLATE
56	WASHER
57	EXTENSION WAND - 211
58	EXTENSION TUBE-INNER
59	EXTENSION TUBE
60	WPL 048458
61	WPL 048460
63	WPL 035015
64	WPL 048467
65	WPL 35104
66	WPL 23016
