2017 02 – HOSE

2017 02 – HOSE

Written by

in

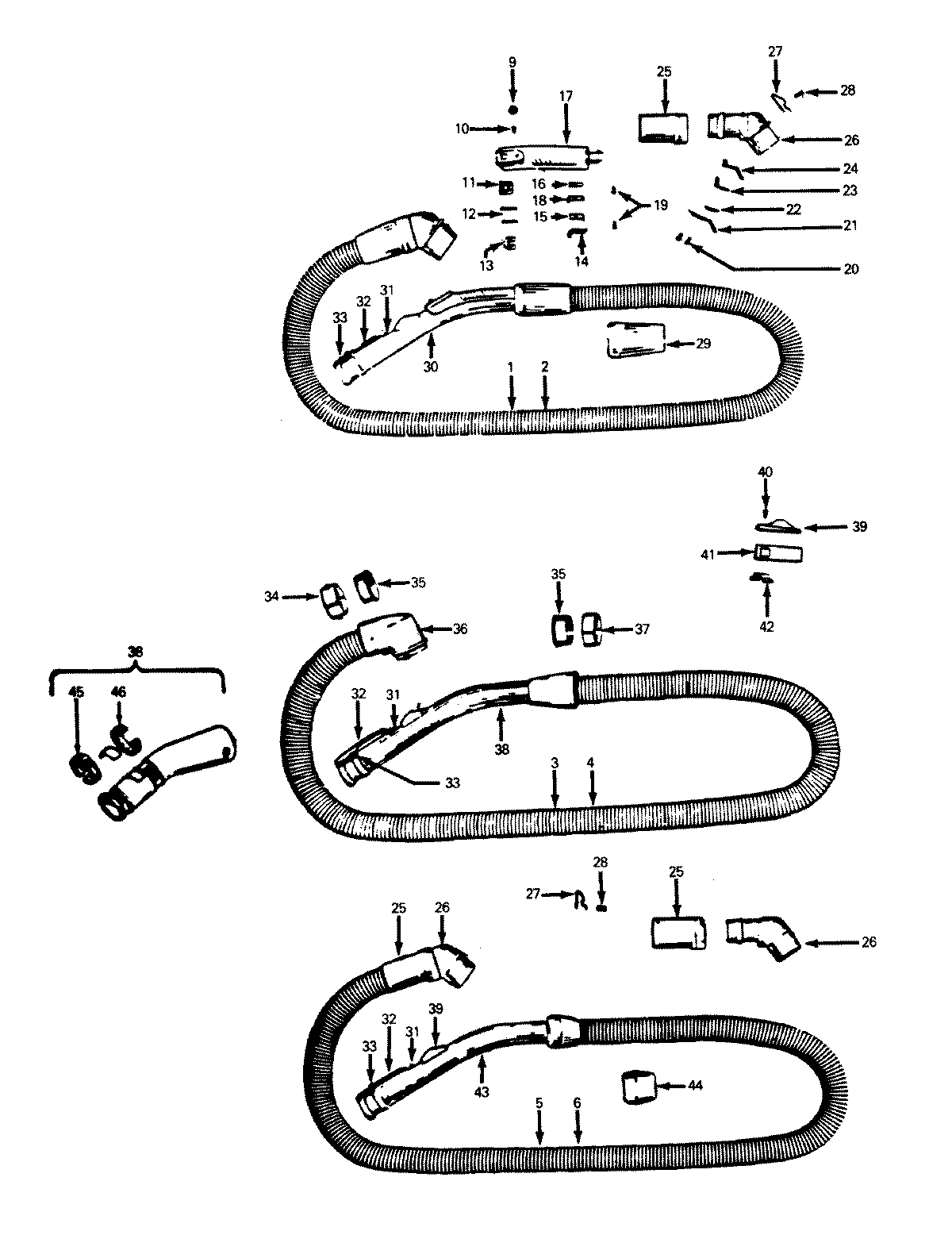

2017 02 – HOSE

Products

Position	Product
1	HOSE COMPLETE
2	HOSE – LESS ENDS – CONSTELLATI
3	HOSE COMPLETE-ABX
4	NOT REQUIRED PART OR SEE NOTE
5	CLEANING TOOL HOSE A
6	HOSE-LESS ENDS-ULTRA
9	LABEL
10	SCREW
11	SWITCH SLIDE MODEL 8
12	CONTACT
13	SWITCH TERMINAL BLOC
14	CONTACT
15	SWITCH CONTACT 87
16	SWITCH CONTACT BOTTO
17	SWITCH CONTROL ASSEM
18	CONTACT
19	SCREW
20	SCREW
21	CONTACT
22	CONTACT
23	CONTACT
24	SPRING
25	HOSE GRIP CONNECTOR
26	HOSE END ASSEMBLY
27	HOSE LATCH SPRING
28	RIVET
29	HOSE GUARD 88
30	HOSE TUBE CURVED ASSM.
31	RIVET
32	TUBE LATCH
33	RIVET
34	HOSE CONNECTOR COLLA
35	HOSE SLEEVE – BZ
36	HOSE CONNECTOR – AG
37	HOSE GRIP COLLAR
37	HOSE CONNECTOR COLLA
38	NOZZ POSITION BRKT ASSY
38	HOSE GRIP W/SC-AG-S1
39	SUCTION REG
40	SCREW
41	SLIDE
42	SUCTION REGULATOR
43	HOSE TUBE – AAP
44	HOSE GRIP
45	LATCH RING-AG-S3273
46	SUCTION CONTROL RING
47	HOSE CONN LABEL-U490
