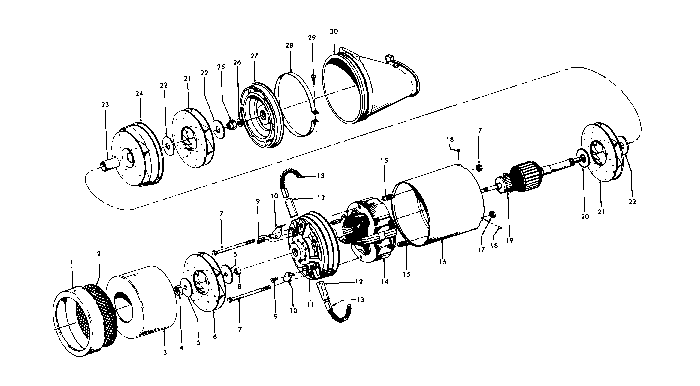

Position	Product
1	FILTER RETAINER
2	SECONDARY FILTER
3	OUTERSTAGE HSG ASSM-
4	NUT
5	WASHER
6	FAN
7	FIELD LAMINATION BOLT
8	SPACER
9	SCREW
10	MOTOR BRUSH RETAINER
11	MTR BRSH HSNG & BRNG
12	MOTOR BRUSH HOLDER
13	CARBON BRUSH – 2100
14	FIELD COIL-1100-SERI
15	SPRING
16	MOTOR CASING
17	NUT
18	SLEEVE
19	ARMATURE-1100-SERIES
20	FAN SPACER
21	FAN
22	WASHER
23	FAN SPACER
24	INTERSTAGE
25	FAN NUT
26	NOT REQUIRED PART OR SEE NOTE
27	MOTOR END CAP & BRNG
28	BOOT CLAMP BAND
29	SCREW
30	EXHAUST BOOT-S3013
31	TERMINAL
31	WIRE NUT
31	LEAD WIRE
31	LEAD WIRE BY FOOT
