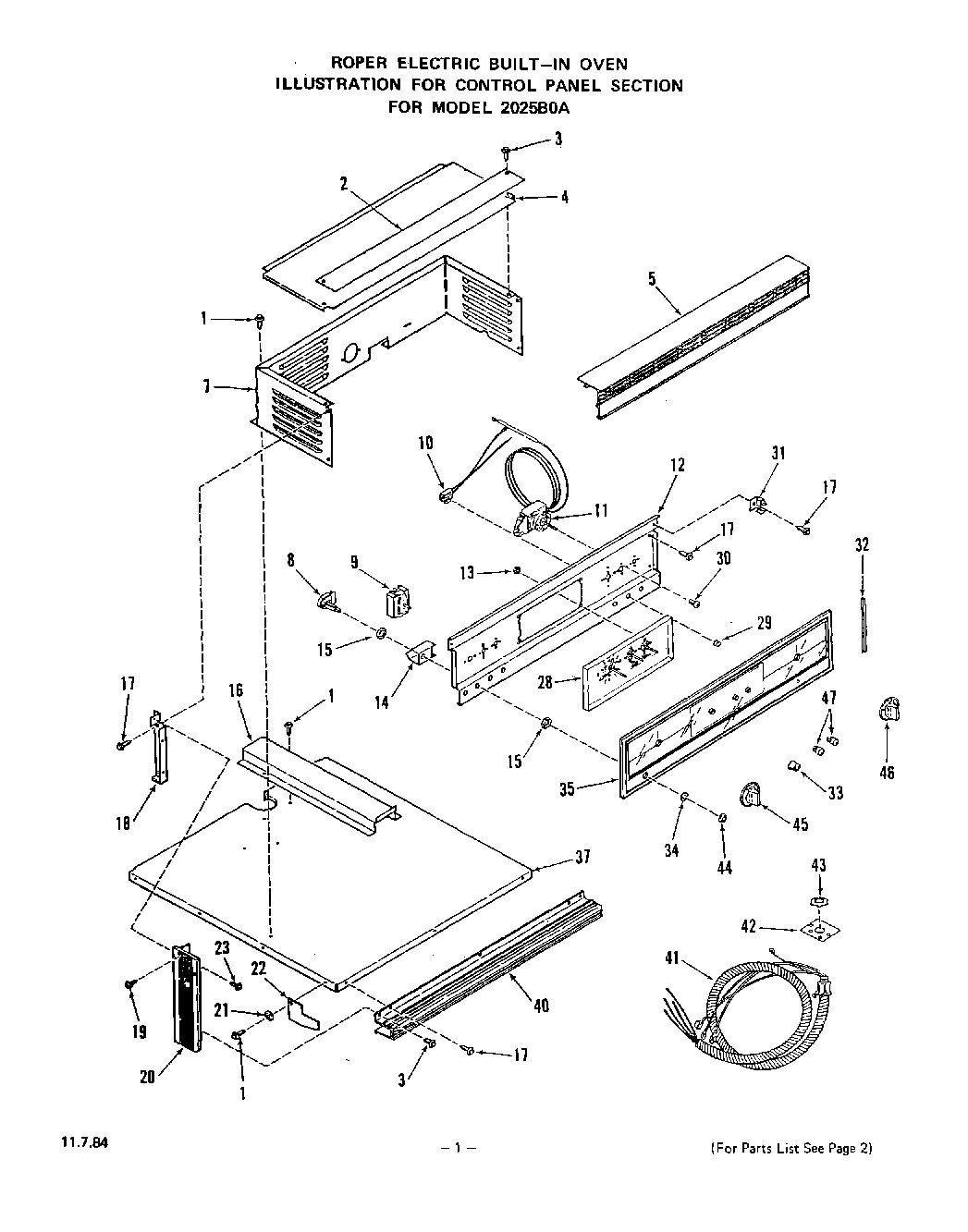

2025B0A 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-16×7/16“
2	Extension-Top Cover
3	Screw 10 – 32 x 7/16“
5	Trim
7	Control Housing
8	Push Switch-Oven Light
9	Selector Switch
10	Indicator Light-Upper Oven
11	Thermostat-Upper Oven
12	Control Mounting Panel
13	Keps Nut 10-24
14	Shield-Switch
15	Lock Nut
16	Wire Cover
17	WP112432 Whirlpool Nut Assembly
18	Right
18	Left
18	Support-Control Panel
19	Screw 6-32 x 1/2“
20	Left
20	Side Trim-Control Panel
20	Right
21	Washer
22	Heat Shield (Lt. or Rt.)
23	Screw 6-32×1/4“
28	Clock w/1 Hr. Timer
29	Lens-Indicator Light (2 Req)
30	WPL 78565
31	Retainer-Glass (Rt. or Lt.)
32	End Trim-Control Panel Glass (Rt. or Lt.)
34	Washer
35	Chrome
37	Cabinet Top
40	Trim-Control Panel
41	Harness Conduit
42	Plate (For Key 45)
43	Nut (For Key 45)
44	Knurled Nut
45	Knob-Selector Switch
46	Knob-Upper Oven Thermostat
47	Knob-Clock (Start & Stop Time)
