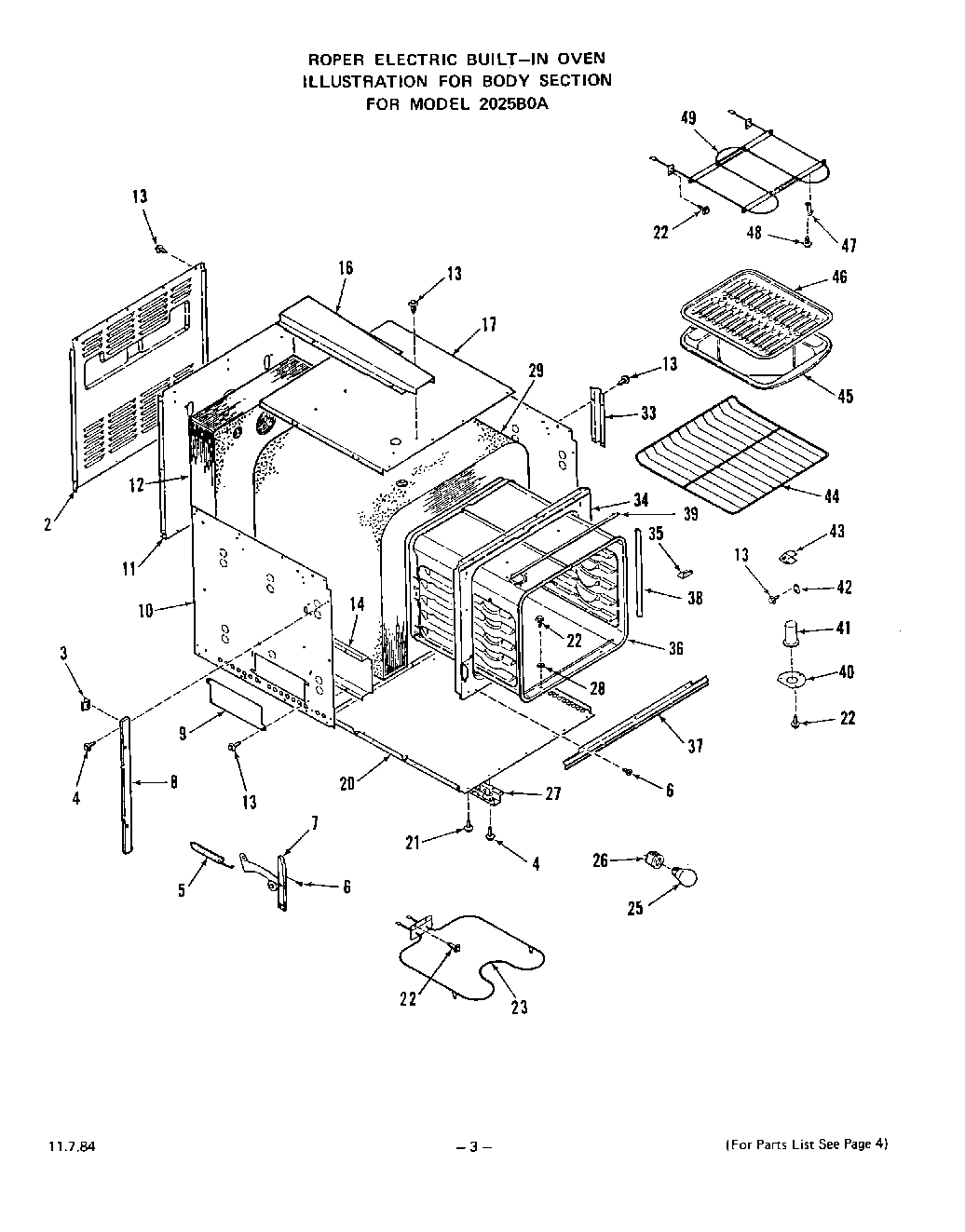

2025B0A 03 – BODY

Products

Position	Product
2	Cabinet Back
3	Spacer (4 Req)
4	WP112432 Whirlpool Nut Assembly
5	Spring-Oven Door (4Req.)
6	Screw 10-32 x 5/8“
7	Hinge
7	Right
7	Left
8	Side Trim-Lt. or Rt.
9	Cover Plate
10	Cabinet Side-Lt or Rt.
11	Main Back
12	WPL 328798
13	Screw 10-16×7/16“
14	Door Spring Insulation Retainer (Lt. or Rt.)
16	Vent Box
17	Insulation Retainer
20	Cabinet Bottom
21	Screw 10 – 32 x 1/4“
22	Screw 10 – 32 x 17/32“
23	Bake Element
25	Oven Lamp Bulb
26	Holder-Oven Light Bulb
27	Bottom Channel-Lt. or Rt.
28	Washer
29	Insulation-Oven Top & Sides (1 Piece) (Up.& Lo Oven
33	Raceway
34	Front Frame
35	Cover
36	Oven Body
37	Lower Trim
38	WPL 329204
39	WPL 328809
40	Oven Vent Clamp
41	Vent Tube-Upper Oven
42	Cover Plate-Thermostat Bulb
43	WPL 291123
44	Oven Rack (2 Up. Oven & 1 Lo. Oven)
45	2055B0A Model
46	WPL 326297
47	Broiler Element Support
48	Screw 10ABx3/8“
49	WPL 328115
