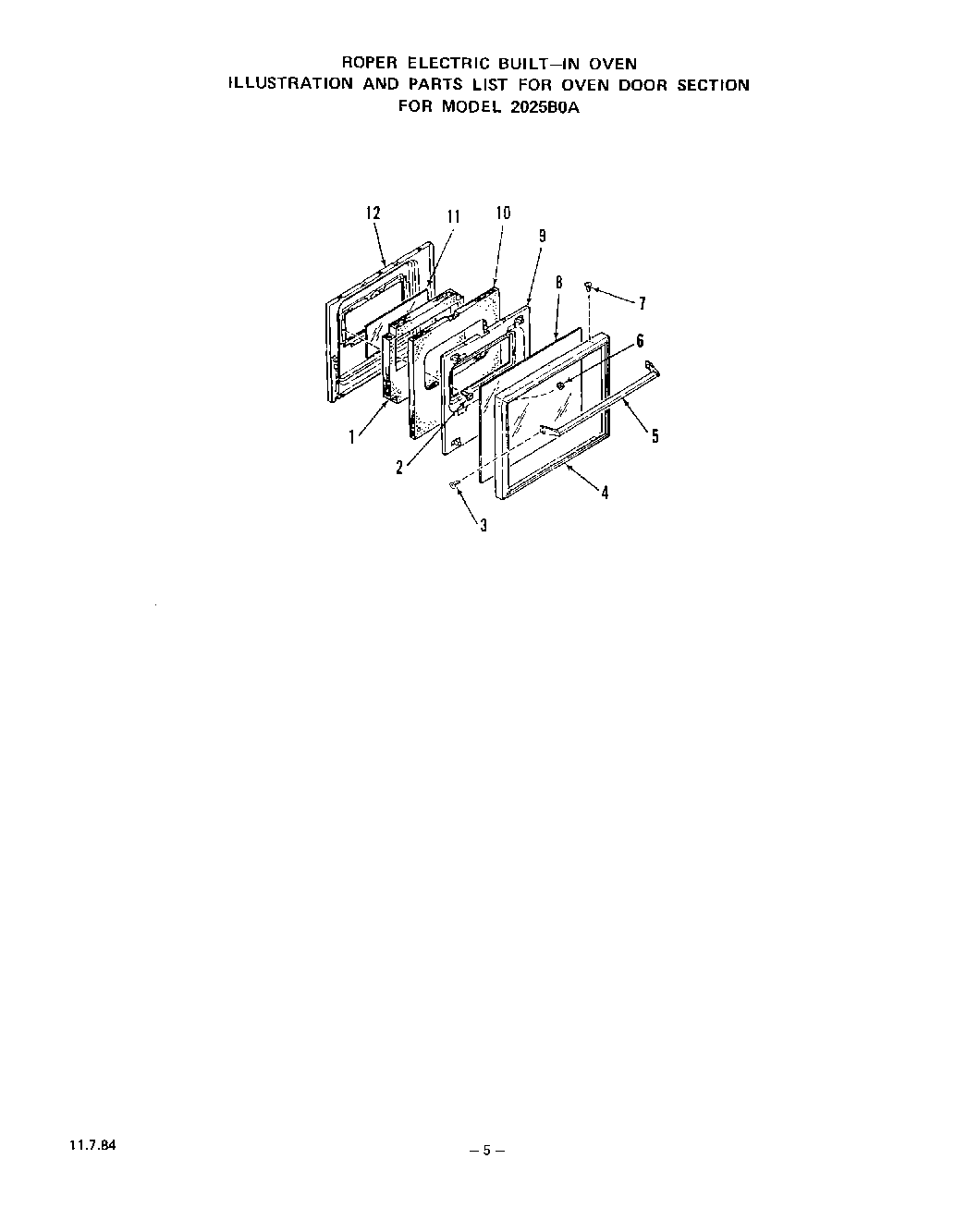

| 1 | Insulation |
| 2 | WP112432 Whirlpool Nut Assembly |
| 3 | Screw 8-32 x 1/2`` |
| 4 | Frame-Oven Door |
| 5 | Handle-Oven Door |
| 6 | Keps Nut 8-32 |
| 7 | Screw 6-20x3/8`` |
| 8 | Oven Door Glass-Outer |
| 9 | Retainer-Oven Door Insulation |
| 10 | Insulation |
| 11 | Oven Door Glass-Center |
| 12 | Lining-Oven Door |
